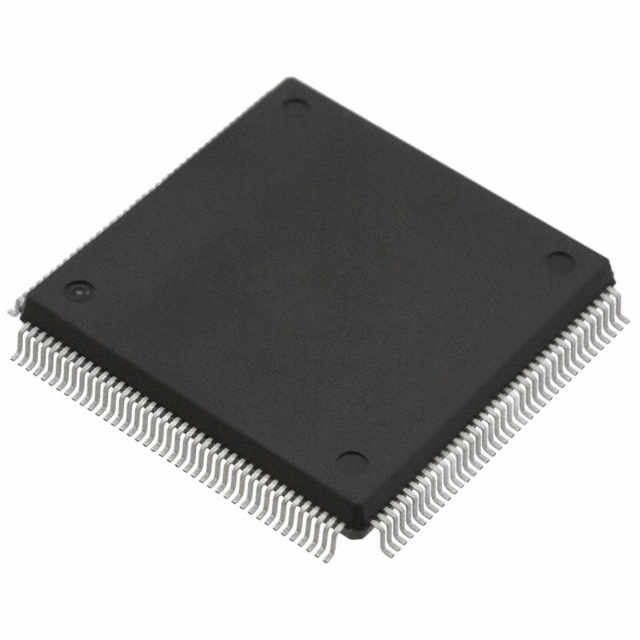

MCF5206FT16A

The MCF5206FT16A is a ColdFire V2 microprocessor supplied by NXP Semiconductors, built around a single 32‑bit core running at 16 MHz. Designed for embedded systems, this device integrates memory interfaces and system bus support to address applications that require a compact, surface‑mount 160‑QFP package.

With 5 V I/O signaling, DRAM controller support and EBI/EMI external bus interfaces, the MCF5206FT16A delivers a balanced integration of core processing and system interfacing for embedded designs operating in a 0 °C to 70 °C range. The device is RoHS compliant.

Key Features

• Core ColdFire V2 architecture, single 32‑bit core suited for embedded control and processing tasks.
• Clock Speed 16 MHz operating frequency for deterministic processing in embedded applications.
• Power and I/O 5 V I/O voltage level compatible with legacy 5 V systems and peripherals.
• Memory Interfaces Integrated DRAM controller plus EBI/EMI external bus interfaces to support system memory and external peripherals.
• Package and Mounting 160‑lead QFP (160‑BQFP / 160‑QFP, 28 × 28 mm) in a surface‑mount footprint for compact board designs.
• Operating Range Rated for operation from 0 °C to 70 °C, suitable for standard commercial temperature environments.
• Environmental Compliance RoHS compliant, meeting lead‑free manufacturing requirements.

Typical Applications

• Embedded control systems — Single‑core 32‑bit processing with DRAM support and EBI/EMI connectivity for control and coordination tasks.
• Consumer and industrial devices — 5 V I/O and surface‑mount 160‑QFP package simplify integration into mid‑range electronic products.
• Peripheral and interface controllers — External bus interfaces enable connection to memory and peripheral subsystems in compact system designs.

Unique Advantages

• Proven ColdFire V2 core: Single 32‑bit core implementation provides familiar architecture for ColdFire‑based designs.
• Integrated memory support: DRAM controller plus EBI/EMI reduce external glue logic and simplify system memory integration.
• Straightforward power signaling: 5 V I/O compatibility supports legacy peripherals and simplifies level‑translation needs.
• Compact surface‑mount package: 160‑lead QFP (28 × 28 mm) balances pin count and PCB area for dense embedded boards.
• RoHS compliant: Supports lead‑free assembly and environmental manufacturing requirements.
• Commercial temperature rating: 0 °C to 70 °C operation for standard embedded deployments.

Why Choose MCF5206FT16A?

The MCF5206FT16A positions itself as a practical ColdFire V2‑based processor option for embedded designs that require a single 32‑bit core, integrated memory interfaces and standard 5 V I/O signaling in a compact 160‑QFP package. Its DRAM controller and EBI/EMI connectivity help reduce external component count and simplify board-level system design.

Engineers specifying this device will find a focused feature set for commercial embedded applications where proven architecture, straightforward system interfacing and RoHS compliance are priorities. The MCF5206FT16A is suited to designers looking for a tightly integrated microprocessor solution for established ColdFire‑based platforms.

Request a quote or submit an inquiry for pricing and availability of the MCF5206FT16A to start your procurement or design evaluation.
