MCF5233CVM100

The MCF5233CVM100 from NXP Semiconductors is a Coldfire V2 32-bit single-core microcontroller IC, ROMless and specified for 100 MHz operation. It is supplied in a 256-MAPBGA (17×17) package and targeted at embedded applications.

With integrated 10/100 Mbps Ethernet and CAN interfaces, 3.3 V I/O and industrial temperature qualification, this device is suited for networked and control-oriented embedded systems requiring fixed-frequency performance and industrial-grade operation.

Key Features

• Core – Coldfire V2 32-bit single-core architecture providing deterministic 100 MHz operation for control and processing tasks.
• Performance – 100 MHz clock rate to support real-time embedded processing within its Coldfire V2 core.
• Memory Model – ROMless variant designed for systems that use external memory or flash devices for code storage.
• Interfaces – Integrated 10/100 Mbps Ethernet (1) and CAN connectivity, enabling wired networking and field-bus communication.
• Power & I/O – 3.3 V I/O voltage domain for compatibility with common embedded peripherals and interfaces.

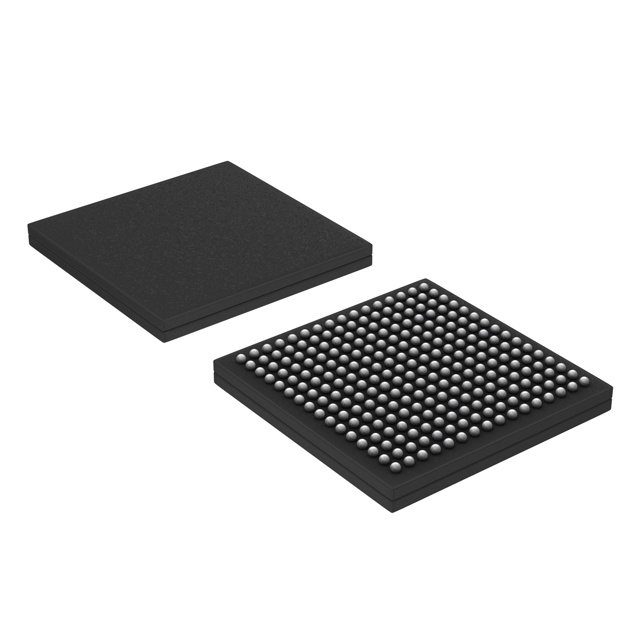

• Package & Mounting – 256-LBGA supplier device package (256-MAPBGA, 17×17) in a surface-mount form factor for compact board designs.
• Qualification & Temperature – Industrial qualification with an operating temperature range of −40 °C to 85 °C for deployment in demanding environments.
• Compliance – RoHS compliant.

Typical Applications

• Industrial Control – Deterministic 32-bit processing and industrial temperature rating make the device suitable for PLCs, motor controllers and embedded control nodes.
• Networked Embedded Systems – On-chip 10/100 Mbps Ethernet supports connected device applications such as gateways and remote controllers.
• Field-Bus and Vehicle Systems – Integrated CAN enables use in systems that require CAN-based communication and sensor/actuator interfacing.

Unique Advantages

• Integrated Networking Interfaces: Ethernet and CAN on-chip reduce external component count and simplify board-level design for connected devices.
• Industrial Temperature Grade: Specified −40 °C to 85 °C to meet environmental demands of industrial deployments.
• ROMless Flexibility: ROMless configuration allows designers to select external memory and boot strategies tailored to their application.
• Compact MAPBGA Package: 256-MAPBGA (17×17) enables high-density PCB layouts while supporting surface-mount assembly.
• Single 3.3 V I/O Domain: Standard 3.3 V I/O simplifies interoperability with common peripherals and interfaces.
• Manufacturer Backing: Produced by NXP Semiconductors as part of the MCF5233 series, offering consistency within the series.

Why Choose MCF5233CVM100?

The MCF5233CVM100 combines a Coldfire V2 32-bit core running at 100 MHz with integrated Ethernet and CAN interfaces in a compact 256-MAPBGA package, delivering a balanced solution for embedded designs that require network connectivity and industrial-grade operation. Its ROMless configuration provides flexibility for systems that rely on external code storage.

This part is well suited to engineers designing industrial control, networked embedded, and CAN-enabled systems who need a predictable 100 MHz Coldfire V2 platform, 3.3 V I/O compatibility and a component qualified for −40 °C to 85 °C operation, supported by NXP Semiconductors.

Request a quote or submit a procurement inquiry to get pricing and lead-time information for the MCF5233CVM100.
