MCIMX233CJM4C

The MCIMX233CJM4C is a single‑core ARM926EJ‑S microprocessor from the i.MX 233 series by NXP Semiconductors, running at 454 MHz. Designed for embedded applications, it combines a 32‑bit core with integrated peripherals and security features to support connected, industrial‑grade designs.

With on‑chip DRAM controller support, display and touchscreen interface controllers, a USB 2.0 PHY, and industrial qualification, this device targets embedded systems that require reliable operation across a wide temperature range and compact BGA packaging.

Key Features

• Core & Performance ARM926EJ‑S 32‑bit processor running at 454 MHz, providing deterministic embedded processing in a single‑core configuration.
• Memory Interface Integrated DRAM controller to interface external memory for system and application needs.
• Security Built‑in cryptography and a hardware ID for device identification and secure operations.
• Connectivity & I/O USB 2.0 with integrated PHY (1) and I2C interface support for common peripheral and sensor connectivity.
• Display & User Interface LCD and touchscreen interface controllers for building graphical human‑machine interfaces.
• Co‑processing Data co‑processor (DCP) to offload specific data operations from the main CPU.

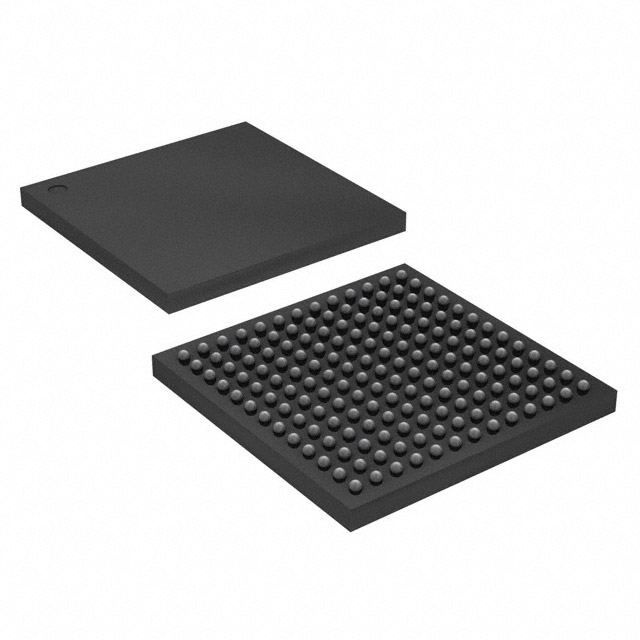

• Package & Mounting Supplied in a 169‑MAPBGA (11×11) package / 169‑LFBGA case, surface mount for compact board designs.
• Industrial Qualification & Temperature Range Industrial‑qualified device rated for operation from −40 °C to 85 °C and RoHS compliant for environmentally conscious designs.

Typical Applications

• Industrial Control & Automation — Drives embedded control tasks and operator interfaces with industrial temperature qualification and reliable I/O connectivity.
• Human‑Machine Interfaces (HMI) — Supports LCD and touchscreen controllers for compact graphical displays and user interaction.
• Portable and Handheld Devices — Single‑core 32‑bit processing and integrated USB make it suitable for compact, connected handheld systems.
• Embedded Gateways & Sensor Hubs — I2C and USB connectivity plus secure hardware ID and cryptography enable trusted sensor interfacing and data handling.

Unique Advantages

• Industrial‑grade reliability: Industrial qualification and −40 °C to 85 °C rating support deployments in demanding environments.
• Integrated display and touch support: On‑chip LCD and touchscreen controllers simplify HMI designs and reduce external components.
• Hardware security primitives: Cryptography and hardware ID provide a basis for secure device identity and protected operations.
• Compact BGA packaging: 169‑MAPBGA (11×11) surface‑mount package minimizes board footprint for space‑constrained designs.
• Balanced connectivity: USB 2.0 + PHY and I2C interfaces enable common peripheral and sensor connections without extensive external logic.
• Dedicated data offload: DCP co‑processor reduces CPU load for targeted data operations, improving system responsiveness.

Why Choose MCIMX233CJM4C?

The MCIMX233CJM4C positions itself as a compact, industrial‑qualified microprocessor option for embedded systems that require a deterministic single‑core ARM926EJ‑S engine, integrated display and connectivity features, and hardware security capabilities. Its package and peripheral set make it suitable for designers focused on industrial HMIs, portable devices, and sensor‑centric embedded platforms.

Backed by NXP Semiconductors and the i.MX 233 series lineage, this part offers a combination of integration, industrial temperature operation, and on‑chip features that help simplify BOM and board design while supporting secure, connected embedded applications.

Request a quote or submit an inquiry to receive pricing and availability for the MCIMX233CJM4C for your next embedded design.
