MCF5206FT33A

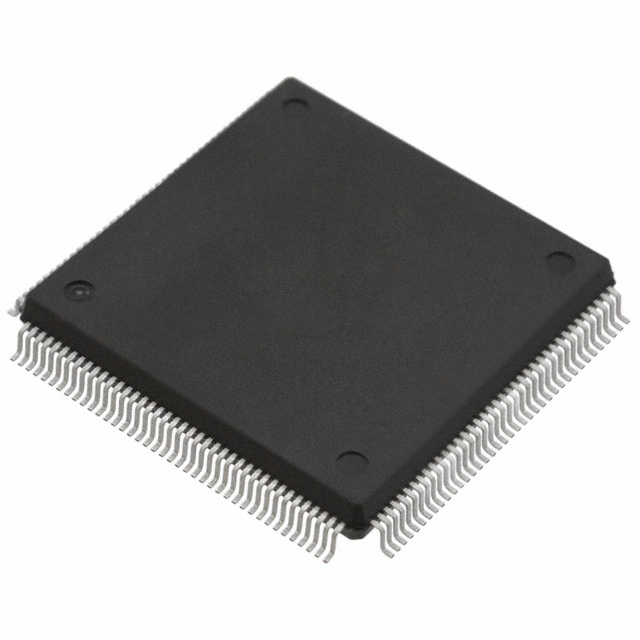

The MCF5206FT33A is a ColdFire V2 microprocessor IC featuring a single 32-bit core operating at 33 MHz. It is supplied in a 160-pin QFP (28×28 mm) surface-mount package and is targeted for embedded applications that require an external memory interface and standard 5 V I/O.

With on-chip DRAM controller support and EBI/EMI interfaces, this device addresses designs that need direct connection to external memory and parallel peripherals while maintaining a compact board footprint and RoHS compliance.

Key Features

• Core — ColdFire V2 single 32-bit core running at 33 MHz for embedded processing tasks.
• Memory & Controllers — Integrated DRAM controllers to support external memory configurations.
• External Bus Interfaces — EBI/EMI interfaces for connecting parallel peripherals and external memory devices.
• Voltage — 5 V I/O compatibility for interfacing with legacy system logic levels.
• Package & Mounting — 160-BQFP / 160-QFP (28×28) supplier device package, surface-mount mounting type suitable for compact PCB layouts.
• Operating Temperature — Commercial temperature range rated from 0 °C to 70 °C.
• Environmental — RoHS compliant.

Typical Applications

• Embedded systems — General-purpose 32-bit processing for control, user interface, and management tasks in embedded designs.
• Board-level designs with external memory — Systems that require on-chip DRAM controller and EBI/EMI to connect DRAM or parallel peripherals.
• Compact surface-mount assemblies — Dense PCB implementations using the 160-QFP (28×28) package footprint.

Unique Advantages

• Deterministic 32-bit processing: ColdFire V2 single-core operation at 33 MHz provides predictable compute performance for embedded workloads.
• Built-in external memory support: DRAM controllers and EBI/EMI reduce the need for additional glue logic when interfacing external memory and parallel devices.
• Legacy I/O compatibility: 5 V I/O makes integration with established system designs straightforward.
• Compact, industry-standard package: 160-QFP (28×28) surface-mount package supports standard assembly processes and dense board layouts.
• Commercial temperature rating: Specified 0 °C to 70 °C operation for typical commercial embedded deployments.
• RoHS compliance: Meets environmental requirements for lead-free designs.

Why Choose MCF5206FT33A?

The MCF5206FT33A from NXP Semiconductors combines a ColdFire V2 32-bit core running at 33 MHz with integrated DRAM controller and EBI/EMI interfaces to simplify designs that require external memory and parallel peripheral connectivity. Its 160-QFP (28×28) surface-mount package and 5 V I/O compatibility make it suitable for compact, legacy-interfacing embedded systems within a commercial temperature range.

This part is appropriate for engineers and procurement teams seeking a verified ColdFire V2-based microprocessor with explicit support for external memory, a standard package format, and RoHS compliance.

Request a quote or submit an RFQ to receive pricing and availability information for the MCF5206FT33A. Include part number and required quantities to expedite your request.
