MCIMX27VOP4A

The MCIMX27VOP4A is an NXP Semiconductors i.MX 27 series multimedia applications processor based on a single ARM926EJ-S 32‑bit core running at up to 400 MHz. It combines processing performance with low-power design techniques to serve compact consumer and embedded devices.

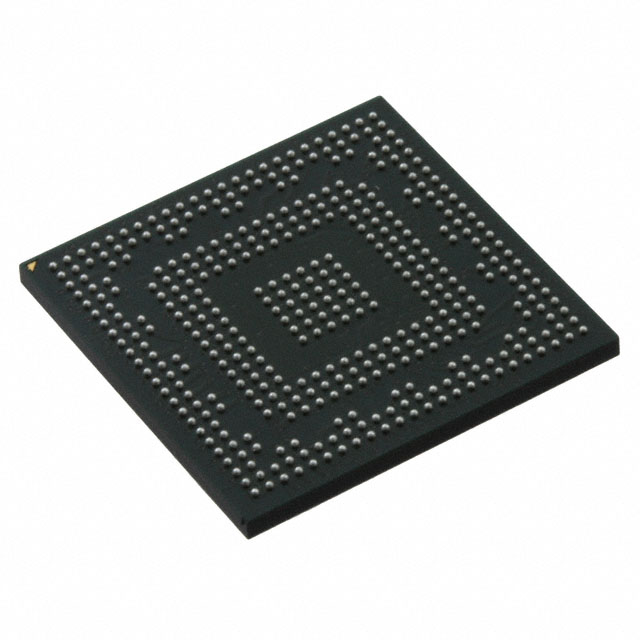

Designed for systems that require display and multimedia interfaces, secure processing and standard connectivity, the device integrates DDR memory support, LCD/keypad display controllers, USB 2.0 with on‑chip PHY, 10/100 Mbps Ethernet and hardware security features in a 404‑LFBGA (17 × 17 mm) surface‑mount package. Operating range is −20 °C to 85 °C, and the device is RoHS compliant and qualified for consumer applications.

Key Features

• Core and Performance ARM926EJ‑S single 32‑bit core running up to 400 MHz, providing deterministic embedded processing for multimedia and control tasks.
• Memory and Display Integrated DDR memory controller plus display interface controllers for LCD and keypad; on‑chip graphics acceleration supports user interfaces and multimedia display needs.
• Connectivity USB 2.0 with on‑chip PHY (three instances indicated) and a 10/100 Mbps Ethernet interface provide standard wired connectivity options for data and media transfer.
• Security and Cryptography Hardware security features including cryptography engines, a Random Number Generator (RNG), RTIC, secure fusebox and secure memory, with a dedicated security co‑processor (SAHARAH2).
• Low‑Power Design Architecture optimized for minimal power consumption using techniques described in the i.MX27 series (DPTC, power gating and clock gating) and implemented in 90 nm process technology.
• Package and Environment 404‑LFBGA surface‑mount package (17 × 17 mm), operating temperature −20 °C to 85 °C, RoHS compliant and consumer qualified.
• Additional Interfaces Includes 1‑Wire interface and multiple peripheral blocks suitable for embedded I/O and control integration.

Typical Applications

• Feature‑rich Cellular Phones Integrates display, USB and low‑power operation to support media playback and basic multimedia processing in compact handheld devices.
• Portable Media Players & Mobile Gaming Graphics acceleration, DDR support and USB connectivity enable responsive user interfaces and media transfer for portable entertainment products.
• PDAs and Wireless PDAs Single‑chip processing with display and keypad controllers provides a compact platform for personal information devices and handheld controllers.
• Portable DVD Players & Digital Cameras Multimedia processing, display interfaces and standard connectivity make the device suitable for embedded consumer electronics focused on media playback and capture.

Unique Advantages

• Highly Integrated Connectivity: Built‑in USB 2.0 with PHY and 10/100 Mbps Ethernet reduce external components and simplify board design.
• Security‑Ready Platform: On‑chip cryptography, RNG, secure fusebox, secure memory and the SAHARAH2 co‑processor enable hardware‑assisted secure functions without additional security ICs.
• Balanced Performance and Power: ARM926EJ‑S at up to 400 MHz combined with low‑power techniques (DPTC, power gating, clock gating) delivers usable performance while minimizing energy consumption.
• Display and Multimedia Support: LCD/keypad controllers, DDR memory interface and graphics acceleration provide the building blocks for rich user interfaces and media handling.
• Compact Surface‑Mount Package: 404‑LFBGA (17 × 17 mm) package offers a small footprint for space‑constrained consumer and embedded products.
• Consumer Qualification and RoHS Compliance: Device is designated for consumer applications and is RoHS compliant to meet environmental requirements.

Why Choose MCIMX27VOP4A?

The MCIMX27VOP4A positions itself as a compact, integrated processor for consumer and embedded multimedia applications that need a balance of processing capability, standard connectivity and hardware security. Its ARM926EJ‑S core at up to 400 MHz, combined with DDR support, display interfaces and a security co‑processor, makes it suitable for designs prioritizing functional integration and power efficiency.

This part is appropriate for engineering teams building handheld multimedia devices, portable entertainment products and other consumer electronics that require onboard connectivity, secure handling of data and display capabilities in a small surface‑mount package.

Request a quote or submit an RFQ to receive pricing and availability for the MCIMX27VOP4A. Our team can provide ordering details and support for your design evaluation and procurement needs.
