MCIMX27VJP4AR2

The MCIMX27VJP4AR2 is an NXP i.MX27 series multimedia application microprocessor built around a single ARM926EJ-S 32‑bit core running at up to 400 MHz. It targets consumer embedded systems that require integrated multimedia and connectivity functions with an emphasis on low power consumption.

Typical use cases include feature-rich mobile and portable devices such as cellular phones, portable media players, mobile gaming devices, PDAs, portable DVD players and digital cameras. The i.MX27 architecture combines performance with power-saving techniques and on-chip integration to simplify system design for consumer applications.

Key Features

• Core — ARM926EJ-S single 32‑bit core running up to 400 MHz for deterministic embedded processing.
• Memory — DDR memory controller for external system memory support.
• Security & Co‑processing — On-chip security co-processor (SAHARAH2) and a set of security features including cryptography, a random number generator, RTIC, secure fusebox and secure memory.
• Display & Graphics — Integrated display interface controllers for LCD and keypad plus graphics acceleration for multimedia user interfaces.
• Connectivity — Integrated 10/100 Mbps Ethernet (1) and USB 2.0 with PHY (USB 2.0 + PHY (3)) to support wired networking and peripheral connectivity.
• Low‑power design — Series-level techniques for reduced power consumption including DPTC, power gating and clock gating; manufactured in 90 nm technology with dual Vt to balance performance and leakage.

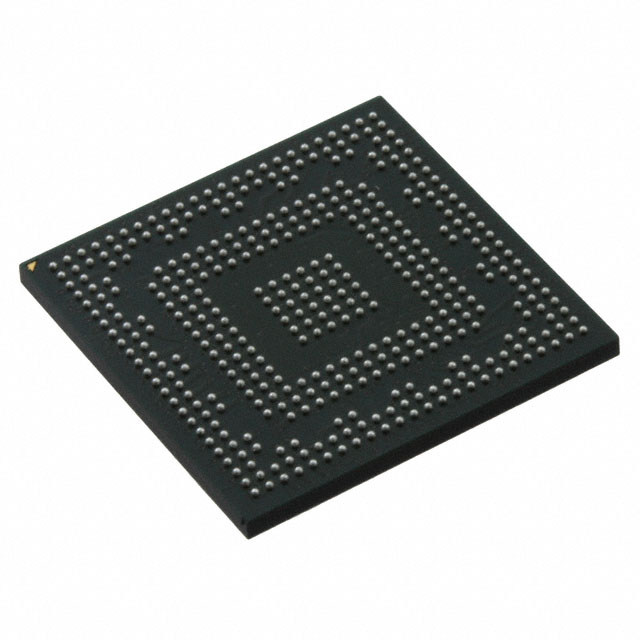

• Package & Mounting — 404‑LFBGA package (17 × 17 mm), surface mount supplied in Tape & Reel (TR) format for volume manufacturing.
• Operating Range & Qualification — Consumer‑grade qualification with an operating temperature range of −20 °C to 85 °C.

Typical Applications

• Feature phones and mobile devices — Provides multimedia processing, display control and integrated connectivity for consumer handsets and feature-rich phones.
• Portable media players and gaming — Combines graphics acceleration and DDR memory interface for responsive media playback and portable gaming platforms.
• Handheld PDAs and wireless PDAs — Delivers the processing and peripheral interfaces needed for compact handheld systems.
• Portable consumer electronics — Suitable for portable DVD players and digital cameras where integrated display, I/O and multimedia capabilities are required.

Unique Advantages

• Highly integrated multimedia platform: Combines an ARM926EJ-S core with display controllers, graphics acceleration and DDR support to streamline multimedia system design.
• On‑chip security features: Built‑in cryptography, RNG, RTIC, secure fusebox and secure memory plus the SAHARAH2 co‑processor provide hardware-level security primitives for protected applications.
• Versatile connectivity: Integrated Ethernet and USB 2.0 + PHY functionality reduce the need for external controllers, simplifying board layout and BOM.
• Power‑aware architecture: Series-level power-saving mechanisms (DPTC, power gating, clock gating) and 90 nm dual Vt process choices help optimize performance versus leakage for battery-powered devices.
• Manufacturing-ready package: 404‑LFBGA (17×17 mm) in Tape & Reel supports automated surface-mount assembly for volume consumer products.

Why Choose MCIMX27VJP4AR2?

The MCIMX27VJP4AR2 positions itself as a compact, consumer‑grade multimedia application processor that balances embedded processing performance with extensive on‑chip integration. Its ARM926EJ-S core at up to 400 MHz, combined with DDR memory support, display and graphics capabilities, integrated connectivity and a comprehensive security feature set, makes it well suited for designers of consumer handheld and portable devices.

Design teams benefit from series-level documentation and package information provided for the i.MX27 family, enabling informed hardware integration and system-level planning for consumer multimedia applications.

Request a quote or submit an inquiry to check pricing and availability for the MCIMX27VJP4AR2 and to discuss your volume and delivery requirements.
