MCIMX27VJP4A

The MCIMX27VJP4A is an NXP i.MX27 series multimedia applications microprocessor based on a single ARM926EJ-S 32-bit core running up to 400 MHz. It combines processing, display and peripheral interfaces with on-chip security and power-management features targeted at compact, battery-sensitive embedded devices.

Designed for portable multimedia and handheld applications, the device emphasizes low-power operation through techniques such as DPTC, power gating and clock gating, implemented in a 90 nm dual-Vt process and paired with on-chip cache for improved runtime efficiency.

Key Features

• Processor Core  ARM926EJ-S single 32-bit core operating up to 400 MHz, suitable for embedded multimedia control and application processing.
• Memory and Storage Interfaces  DDR memory controller for external DRAM connectivity; on-chip cache to boost execution efficiency.
• Security Subsystem  Integrated security features including cryptography, random number generator (RNG), RTIC, secure fusebox and secure memory; co-processor listed as Security; SAHARAH2.
• Display and Graphics  Display interface controllers for keypad and LCD plus graphics acceleration to support user interfaces and visual content.
• Connectivity  Ethernet 10/100 Mbps (1) and USB 2.0 + PHY (3) for wired networking and host/device USB connectivity; additional 1-Wire interface for simple peripheral or sensor connections.
• Low-Power Optimization  Device-level power saving techniques (DPTC, power gating, clock gating) and a 90 nm dual-Vt process targeted at reducing leakage and runtime power.

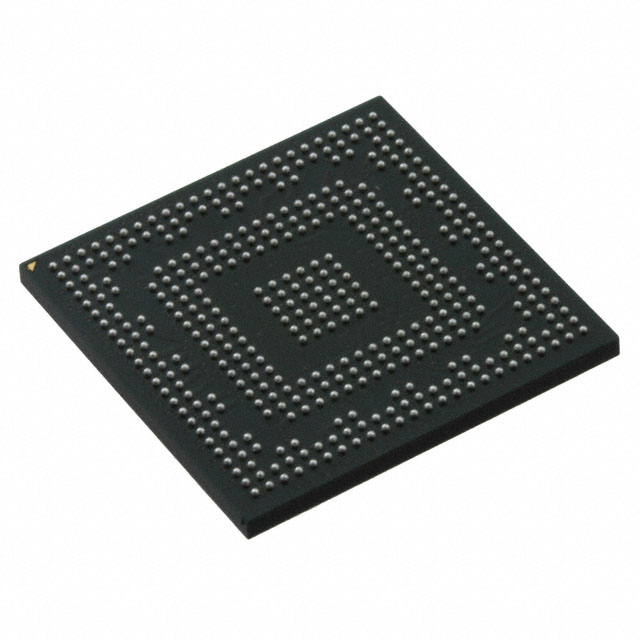

• Package and Mounting  404-LFBGA surface-mount package (17 mm × 17 mm) for compact board designs.
• Operating Range & Compliance  Qualified for consumer applications with an operating temperature range of -20 °C to 85 °C and RoHS compliance.

Typical Applications

• Feature-rich Cellular Handsets  Use the i.MX27 core and graphics/display interfaces for application and UI control in compact phone designs.
• Portable Media Players  Combine the processor core, display controller and graphics acceleration to handle playback control and user interfaces.
• Mobile Gaming Devices  Leverage processing performance and graphics acceleration for handheld gaming platforms and UI responsiveness.
• Handheld PDAs and Wireless PDAs  Low-power operation, integrated connectivity and security features make it appropriate for portable personal digital assistants.
• Portable Consumer Electronics  Devices such as portable DVD players and digital cameras can use the integrated interfaces and low-power features for compact system designs.

Unique Advantages

• Balanced Performance and Power: ARM926EJ-S core at up to 400 MHz with on-chip cache and power-saving techniques provides a trade-off of compute capability and energy efficiency.
• Integrated Security: Built-in cryptography, RNG, RTIC, secure fusebox and secure memory plus the SAHARAH2 security co-processor help simplify secure system design.
• Rich I/O Integration: On-chip Ethernet, USB 2.0 with PHY and additional 1-Wire interface reduce external component count for networked and sensor-based products.
• Display-Ready: Dedicated keypad and LCD controllers with graphics acceleration streamline UI implementation for handheld and consumer devices.
• Compact Packaging: 404-LFBGA (17×17 mm) surface-mount package enables small form-factor boards while providing high pin count for diverse peripherals.
• Consumer-Grade Robustness: Rated for -20 °C to 85 °C operation and RoHS compliant, suited to mainstream portable and consumer electronics markets.

Why Choose MCIMX27VJP4A?

The MCIMX27VJP4A positions itself as a compact, low-power multimedia applications processor that combines an ARM926EJ-S core with integrated display, connectivity and security features. Its design focus on power-saving techniques and on-chip cache makes it well suited for battery-powered consumer devices requiring a balance of performance and efficiency.

This part is appropriate for engineers developing handheld and portable consumer electronics, offering a high integration level to reduce BOM and simplify board design while providing the security and connectivity needed for modern embedded applications.
