MCIMX27VOP4AR2

The MCIMX27VOP4AR2 is an NXP Semiconductors i.MX27 multimedia applications microprocessor based on the ARM926EJ-S core running at up to 400 MHz. It targets consumer embedded applications that require low-power operation, integrated multimedia and display interfaces, and a comprehensive security feature set.

Designed for handheld and portable devices, the device combines a single 32-bit core with on-chip peripherals and connectivity options to simplify system design while maintaining energy-efficient operation.

Key Features

• Core  ARM926EJ-S single 32-bit core operating up to 400 MHz for control and multimedia processing.
• Memory and Display  DDR memory controller with integrated display interface controllers for LCD and keypad support; on-chip graphics acceleration is included.
• Security Subsystem  Dedicated security co-processor (SAHARAH2) plus cryptography, random number generator, RTIC, secure fusebox, and secure memory for device and data protection.
• Connectivity  Integrated Ethernet 10/100 Mbps (1 port), multiple USB 2.0 controllers with PHY (3), and 1-Wire interface for flexible peripheral connections.
• Low-Power Design  Architectural and process-level power optimizations (data sheet references such as DPTC, power gating, and clock gating) for reduced power consumption in portable applications.

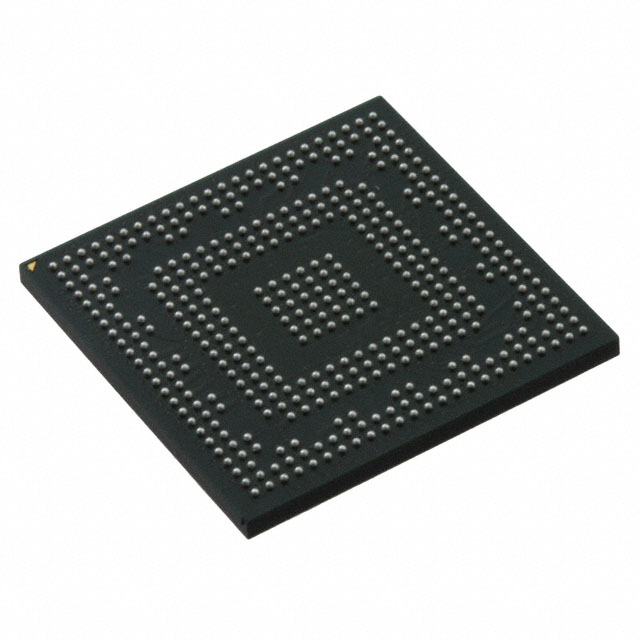

• Package and Mounting  404-LFBGA package (17 × 17 mm) in a surface-mount form factor suitable for compact board layouts.
• Operating Range and Qualification  Consumer-grade qualification with an operating temperature range of −20 °C to 85 °C and RoHS compliance.

Typical Applications

• Feature-rich cellular phones  Used where a low-power ARM926EJ-S core, display and multimedia support, and integrated connectivity are required for handheld devices.
• Portable media players and mobile gaming machines  Provides display controller support, graphics acceleration, USB connectivity, and DDR memory interface for multimedia playback and interactive applications.
• Personal digital assistants (PDAs) and wireless PDAs  Offers a compact, low-power processor platform with security features and peripheral interfaces suited to handheld productivity devices.
• Portable DVD players and digital cameras  Delivers the integrated multimedia and I/O functions needed for compact consumer electronics.

Unique Advantages

• Highly integrated multimedia platform: Combines ARM926EJ-S processing, DDR memory controller, display interfaces, and graphics acceleration to reduce system complexity.
• Comprehensive security suite: On-chip SAHARAH2 co-processor with cryptography, RNG, secure fusebox, RTIC, and secure memory for layered device security.
• Multiple high-speed I/O options: Integrated Ethernet 10/100 Mbps, three USB 2.0 controllers with PHY, and 1-Wire interface provide flexible connectivity choices.
• Designed for low-power consumer products: Power-saving techniques and 90 nm process-level optimizations noted in the data sheet support energy-efficient operation in portable systems.
• Compact, surface-mount package: 404-LFBGA (17 × 17 mm) package supports small form-factor designs and automated assembly.
• Ready for consumer applications: Consumer qualification and RoHS compliance align the device with typical consumer electronics manufacturing and regulatory expectations.

Why Choose MCIMX27VOP4AR2?

The MCIMX27VOP4AR2 positions itself as a balanced solution for consumer embedded designs that demand a combination of processing capability, multimedia interfaces, integrated security, and low-power operation. Its ARM926EJ-S core at up to 400 MHz, together with on-chip peripherals and connectivity, simplifies bill-of-materials and board-level design for handheld and portable products.

Backed by NXP Semiconductors' product documentation and package information, this device is suited to designers targeting consumer multimedia and portable applications that require a compact, integrated processor platform with a strong security feature set and multiple I/O options.

Request a quote or submit an inquiry to receive pricing, availability, or additional technical details for MCIMX27VOP4AR2.
