MCIMX513DJM8CR2

The MCIMX513DJM8CR2 is an embedded microprocessor from NXP Semiconductors based on an ARM® Cortex®-A8 core running at 800 MHz. Designed for compact, surface-mount applications, this single-core 32-bit MPU integrates high-performance processing, multimedia DSP support and a broad set of peripheral interfaces for connected embedded systems.

Targeted use cases include metering, portable medical devices, thermostats, industrial process control and sensor-driven products where a balance of processing performance, interface integration and device-level security is required.

Key Features

• Core — ARM® Cortex®-A8 single core, 32-bit architecture running at 800 MHz for responsive embedded processing.
• Multimedia and DSP — Includes multimedia co-processor support and NEON™ SIMD for accelerated signal and media processing tasks.
• Memory Controllers — Integrated controllers for LPDDR and DDR2 to support flexible memory choices and system memory performance.
• Connectivity — On-chip Ethernet 10/100 Mbps (1 port) and multiple USB 2.0 interfaces (three USB 2.0 host/device ports plus one USB 2.0 with PHY) for network and peripheral connectivity.
• Display and Input — Integrated controllers for LCD and keypad interfaces to support user interface designs.
• Security — Hardware security features including ARM TrustZone (ARM TZ), boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory and secure RTC.

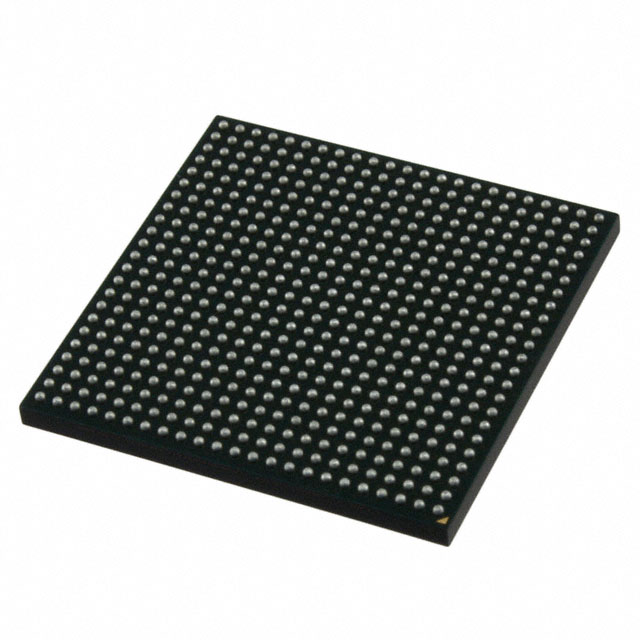

• Package and Mounting — 529-BGA (19×19) supplier device package in tape & reel format; surface-mount device suitable for compact board designs.
• Operating Range — Rated for operation from −20 °C to 85 °C, addressing standard consumer and industrial temperature requirements.

Typical Applications

• Smart and Single-Phase Metering — Provides the processing and interface support needed for electricity meters and utility metering designs.
• Portable Medical Equipment — Enables low-power, precise measurement and user-interface control in battery-operated medical devices.
• Thermostats and Building Controls — Drives display and sensor interfacing for HVAC and thermostat applications requiring secure connectivity.
• Industrial Process Control — Acts as the control and communications engine for industrial measurement and automation systems.
• Sensor Interfacing and Digital Scales — Supports high-resolution sensing, aggregation and local processing for digital scales and sensor hubs.

Unique Advantages

• Balanced Processing Performance: An 800 MHz Cortex-A8 core delivers the compute capability for user interfaces, control loops and local data processing without excessive board-level complexity.
• Flexible Memory Support: LPDDR and DDR2 controller support enables designers to choose memory technology that matches cost, performance and power goals.
• Rich Connectivity: Integrated Ethernet and multiple USB 2.0 ports simplify system-level connectivity and peripheral integration, reducing external component count.
• Comprehensive Device Security: Multiple hardware security mechanisms (ARM TZ, secure boot, cryptography and secure JTAG/fusebox) help protect firmware, keys and system integrity.
• Compact, Production-Ready Packaging: 529-BGA in tape & reel format supports efficient surface-mount assembly for volume production.
• Application Focus: Designed with metering, medical, thermostat and industrial use cases in mind, helping accelerate time-to-market for those segments.

Why Choose MCIMX513DJM8CR2?

The MCIMX513DJM8CR2 positions itself as a versatile embedded MPU that combines a high-speed ARM® Cortex®-A8 core with multimedia acceleration, flexible memory options and robust security features. Its integrated connectivity and display/input controllers make it suitable for compact, connected products where integration and security matter.

Backed by NXP Semiconductors, this MPU is appropriate for engineers developing metering, portable medical, thermostat, industrial control and sensor-driven designs that require a balance of performance, integration and production-ready packaging.

Request a quote or contact sales to discuss pricing, availability and lead times for the MCIMX513DJM8CR2. Our team can help evaluate fit for your design and provide ordering information.
