MCIMX515CJM6C

The MCIMX515CJM6C is an NXP Semiconductors i.MX 515 series microprocessor based on a single ARM® Cortex®‑A8 32‑bit core running at 600 MHz. It combines processing performance with integrated memory controllers, display and peripheral interfaces, graphics acceleration and a broad security feature set for embedded applications.

Designed and qualified for industrial use, the device supports LPDDR and DDR2 memory, 10/100 Mbps Ethernet, multiple USB 2.0 ports, LCD and keypad display controllers, and operates across a wide temperature range, making it suitable for metering, medical, industrial control and other embedded systems requiring robust integration.

Key Features

• Core ARM® Cortex®‑A8 single 32‑bit core at 600 MHz for general-purpose and multimedia processing.
• Multimedia and DSP Includes multimedia DSP capability and NEON™ SIMD for accelerated media and signal-processing workloads.
• Memory Controllers Integrated controllers for LPDDR and DDR2 memory to support flexible system memory architectures.
• Display and HMI On‑chip display interface controllers for LCD and keypad-driven user interfaces.
• Connectivity 1 × 10/100 Mbps Ethernet interface and multiple USB 2.0 ports (3 × USB 2.0, plus 1 × USB 2.0 with PHY) for peripheral and network connectivity.
• Peripheral Interfaces Includes additional interfaces such as 1‑Wire for simple sensor and peripheral integration.
• Graphics Acceleration Graphics acceleration support to enable responsive graphical user interfaces and display tasks.
• Security Extensive on‑chip security features including ARM TrustZone (ARM TZ), Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory and Secure RTC.

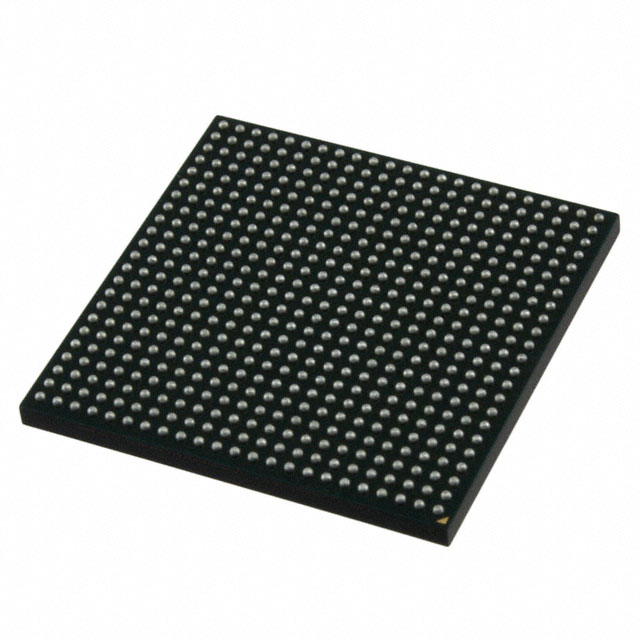

• Package & Mounting 529‑LFBGA (529‑BGA, 19×19 mm) surface‑mount package for compact PCB integration.
• Environmental & Qualification Industrial qualification with an operating temperature range of −40 °C to 95 °C and RoHS compliance.

Typical Applications

• Smart Metering Single‑phase electricity meters and low‑end utility metering where embedded processing, secure boot and network connectivity are required.
• Portable Medical Equipment Portable medical devices that benefit from a compact processor with multimedia capabilities and integrated interfaces.
• Building Controls & Thermostats Thermostat and HVAC controls leveraging display interfaces, 1‑Wire sensor connectivity and industrial temperature qualification.
• Industrial Process Control Automated test equipment and industrial control systems that require robust operation across wide environmental ranges and secure operation.
• Sensor & Instrumentation Sensor interfacing and digital scales utilizing the device’s peripheral set, processing and security features.

Unique Advantages

• High single‑core processing power: 600 MHz ARM® Cortex®‑A8 core provides the compute needed for control, multimedia and signal processing tasks.
• Integrated multimedia acceleration: NEON™ SIMD and multimedia DSP capabilities accelerate media and algorithmic workloads without large external subsystems.
• Flexible memory support: On‑chip LPDDR and DDR2 controllers simplify memory selection and board design.
• Rich peripheral integration: Multiple USB ports, Ethernet, display controllers and 1‑Wire reduce external component count and BOM complexity.
• Comprehensive on‑chip security: ARM TZ, secure boot, cryptography and multiple secure elements support protected system designs.
• Industrial readiness: Industrial qualification and −40 °C to 95 °C operating range enable deployment in demanding environments.

Why Choose MCIMX515CJM6C?

MCIMX515CJM6C positions itself as a compact, industrially qualified embedded microprocessor that balances processing performance, multimedia capability and extensive on‑chip integration. Its feature set—spanning memory controllers, display and peripheral interfaces, Ethernet and multiple USB ports—helps streamline system design for embedded products.

Backed by NXP Semiconductors and the i.MX 515 series, this device is suited to designers building metering, portable medical, building control, industrial measurement and sensor applications that require a secure, integrated and temperature‑hardened solution.

Request a quote or contact sales to discuss availability, pricing and how MCIMX515CJM6C can fit into your next embedded design.
