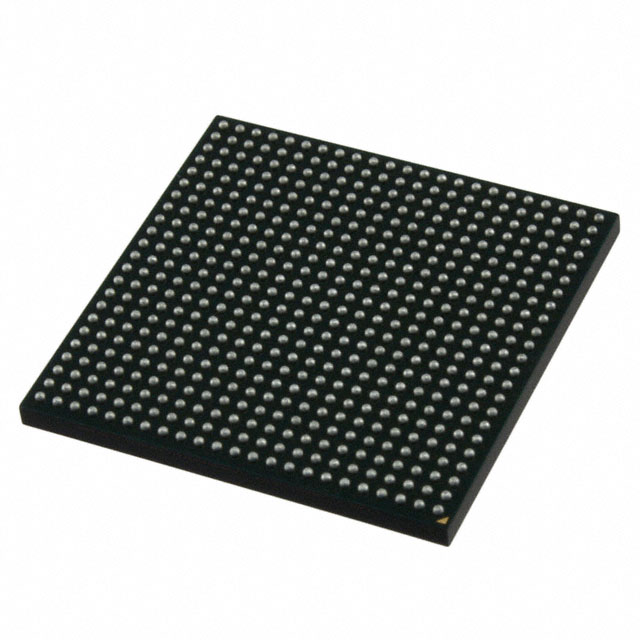

MCIMX515DJM8CR2

The MCIMX515DJM8CR2 is an NXP Semiconductors i.MX 515 series microprocessor featuring a single ARM® Cortex®-A8 core running at 800 MHz in a 529-ball LFBGA (19×19) package. Designed for embedded and consumer applications, it combines a 32-bit Cortex-A8 core with multimedia acceleration and a broad set of integrated interfaces for display, memory and connectivity.

With support for LPDDR and DDR2 memory controllers, multiple USB ports, 10/100 Mbps Ethernet and hardware security features, this device targets designs that require mid-range processing, multimedia capability and on-chip security in a surface-mount BGA package.

Key Features

• Core — ARM® Cortex®-A8 single core, 32-bit architecture running at 800 MHz for application processing in embedded systems.
• Memory Controllers — Integrated controllers for LPDDR and DDR2 memory types to support flexible memory subsystem designs.
• Multimedia & DSP — Multimedia co-processor support with NEON™ SIMD for accelerated media and signal processing tasks.
• Display & UI — On-chip display interface controllers including LCD and keypad support for user interface and HMI implementations.
• Connectivity — Integrated 10/100 Mbps Ethernet (1) and multiple USB 2.0 ports (three USB 2.0 plus one USB 2.0 with PHY) to enable wired networking and peripheral connectivity.
• Security — Hardware security features including ARM TrustZone (ARM TZ), Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory and Secure RTC for device and data protection.
• Additional Interfaces — Included 1-Wire interface for simple sensor and peripheral connections.
• Graphics Acceleration — Built-in graphics acceleration to support UI rendering and multimedia display tasks.
• Package & Mounting — 529-LFBGA (529-BGA, 19×19) surface-mount package for compact board designs requiring high pin density.
• Operating Range & Compliance — Consumer-qualified device with operating temperature range of −20 °C to 85 °C and RoHS-compliant status.

Typical Applications

• Consumer Embedded Devices — Use the Cortex-A8 core and multimedia acceleration for consumer-focused embedded systems requiring responsive UI and media playback.
• Human-Machine Interfaces — Leverage LCD and keypad controllers plus graphics acceleration to drive interactive displays and control panels.
• Networked Peripherals — Integrate 10/100 Ethernet and multiple USB 2.0 ports to implement connected devices and USB-based peripherals.
• Secure Embedded Systems — Employ comprehensive on-chip security features for designs that require secure boot, cryptography and protected debug access.

Unique Advantages

• Balanced Processing Performance — A single 800 MHz Cortex-A8 core delivers a practical mix of performance and efficiency for mid-range embedded workloads.
• Integrated Multimedia Acceleration — NEON™ SIMD and graphics acceleration reduce CPU load for media and UI tasks, simplifying software partitioning.
• Flexible Memory Support — On-chip controllers for LPDDR and DDR2 enable designers to choose memory technologies that match power and cost targets.
• Comprehensive Connectivity — Multiple USB ports plus Ethernet and 1-Wire provide versatile options for peripherals, sensors and network connectivity without heavy external components.
• Robust Security Capability — Hardware-based security primitives and secure boot elements support protected device deployment and secure firmware workflows.
• Compact, Surface-Mount Package — The 529-BGA (19×19) package offers high I/O density in a compact footprint for space-constrained boards.

Why Choose MCIMX515DJM8CR2?

The MCIMX515DJM8CR2 positions itself as a versatile embedded microprocessor combining an ARM® Cortex®-A8 800 MHz core with multimedia acceleration, flexible memory support and a broad set of integrated interfaces. Its hardware security features and connectivity options make it suitable for consumer and embedded designs that require on-chip performance, secure operation and rich I/O integration.

Ideal for engineers seeking a consumer-qualified processor with display, USB, Ethernet and graphics capabilities in a compact 529-LFBGA package, this i.MX 515 series device supports scalable designs that balance performance, integration and board-level density.

Request a quote or submit a purchasing inquiry to obtain pricing and availability for MCIMX515DJM8CR2. Our team can provide technical details and lead-time information to support your design schedule.
