MCIMX515CJM6CR2

The MCIMX515CJM6CR2 is an NXP Semiconductors i.MX 515 series microprocessor featuring a single ARM® Cortex®-A8 core running at 600 MHz. Designed for embedded applications, this industrial-qualified MPU combines compute performance, multimedia acceleration and a broad set of interfaces in a 529-ball BGA package.

With integrated support for LPDDR and DDR2 memory, multiple USB ports, Ethernet and display/keypad controllers, the device targets embedded and industrial systems that require a compact, secure and connected processing solution operating from −40 °C to 95 °C.

Key Features

• Core — ARM® Cortex®-A8 single core, 32-bit at 600 MHz for general-purpose embedded processing.
• Co-processors / Multimedia — Multimedia acceleration with NEON™ SIMD for optimized signal and media processing.
• Memory Controllers — Supports LPDDR and DDR2 memory interfaces for flexible memory subsystem designs.
• Display & HMI — Integrated LCD and keypad display interface controllers for human-machine interface implementations.
• Connectivity — 10/100 Mbps Ethernet (1) and multiple USB options: USB 2.0 (3) and USB 2.0 with integrated PHY (1) for wired connectivity and peripheral support.
• Security — On-chip security features including ARM TrustZone (ARM TZ), boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory and secure RTC to protect system integrity.
• Graphics Acceleration — Graphics acceleration present to assist display and UI rendering tasks.

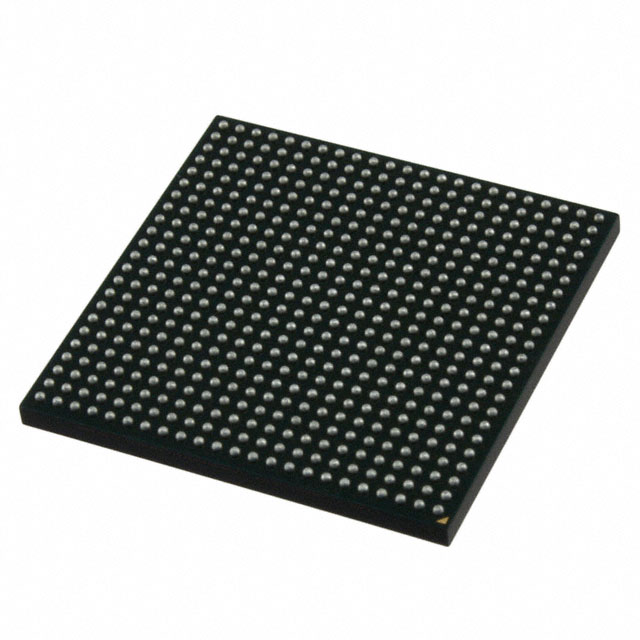

• Package & Mounting — 529‑ball LFBGA package (529‑BGA, 19×19) in a surface-mount form factor suitable for compact board designs.
• Environmental & Qualification — Industrial qualification with operating temperature range from −40 °C to 95 °C; RoHS compliant.
• Additional Interfaces — 1‑Wire interface support for simple sensor or peripheral connections.

Typical Applications

• Industrial Automation — Use for embedded controllers and sensor gateway nodes where industrial qualification and Ethernet connectivity are required.
• Human-Machine Interfaces — Drive LCD-based displays and keypads with on-chip display controllers and graphics acceleration for responsive UIs.
• Edge Multimedia & Signal Processing — Leverage NEON™ SIMD and graphics acceleration for media processing and accelerated signal tasks in edge devices.
• Connected Embedded Devices — Combine multiple USB ports and 10/100 Mbps Ethernet for peripherals, storage and networked applications in compact embedded systems.

Unique Advantages

• Balanced Performance and Efficiency: A 600 MHz ARM® Cortex®-A8 core provides a practical mix of compute capability for embedded workloads without excessive system complexity.
• Integrated Multimedia Acceleration: NEON™ SIMD and graphics acceleration reduce software overhead for media and UI tasks, simplifying system partitioning.
• Flexible Memory Options: LPDDR and DDR2 controller support enables designers to choose memory types that match power, cost and performance targets.
• Comprehensive Connectivity: Multiple USB interfaces and a 10/100 Mbps Ethernet port allow a wide range of peripherals and network topologies with minimal external components.
• Security-Ready Platform: Built-in TrustZone, boot and cryptographic features support hardware-enforced security models for protected applications.
• Industrial Reliability: Industrial qualification and a −40 °C to 95 °C operating range make the device suitable for harsh embedded and industrial environments.

Why Choose MCIMX515CJM6CR2?

The MCIMX515CJM6CR2 positions itself as a compact, industrial-grade embedded processor offering a single ARM® Cortex®-A8 core at 600 MHz with integrated multimedia acceleration, broad interface support and a strong set of hardware security features. Its 529‑BGA package and surface-mount form factor make it suitable for space-constrained designs.

This device is well suited to engineers building industrial, HMI, edge multimedia and connected embedded systems who need a combination of performance, connectivity and security backed by NXP Semiconductors. The industrial temperature range and RoHS compliance help ensure long-term deployment in demanding environments.

Request a quote or submit a purchase inquiry to get pricing and availability for the MCIMX515CJM6CR2 and accelerate your design cycle.
