MCIMX515DJM8C

The MCIMX515DJM8C is an embedded microprocessor from NXP Semiconductors' i.MX 515 series. It integrates a single ARM® Cortex®-A8 32-bit core running at 800 MHz with multimedia acceleration and NEON™ SIMD support for compute and media tasks.

Designed for embedded and consumer applications, the device combines connectivity (USB, Ethernet), display I/O (LCD, keypad), memory controller support, and an extensive security feature set to deliver a compact, integrated processing solution in a 529-LFBGA surface-mount package.

Key Features

• Core ARM® Cortex®-A8 single core, 32-bit architecture operating at 800 MHz for general-purpose and multimedia processing.
• Multimedia & DSP Integrated multimedia co-processor with NEON™ SIMD support for accelerated media and signal processing.
• Memory Controllers Supports DDR2 and LPDDR2 memory interfaces to match common embedded DRAM choices.
• Display Interfaces Built-in controllers for LCD and keypad interfaces to support user interface implementations.
• Connectivity Includes one 10/100 Mbps Ethernet interface and multiple USB 2.0 ports (three USB 2.0 ports plus one USB 2.0 with PHY).
• Additional I/O Provides a 1-Wire interface for simple single-pin peripheral communication.
• Security Comprehensive security features including ARM TrustZone (ARM TZ), boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory, and secure RTC.

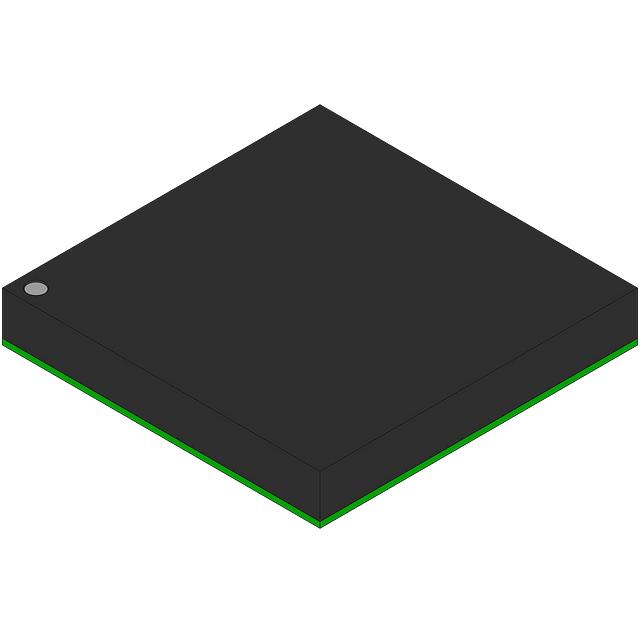

• Package & Mounting 529-LFBGA / 529-BGA (2017, 19×19) surface-mount package for compact board-level integration.
• Operating Range Qualified for consumer applications with an operating temperature range of -20 °C to 85 °C.
• Compliance RoHS compliant.

Typical Applications

• Consumer Embedded Devices — Compact processing and multimedia support for consumer electronics requiring integrated connectivity and security.
• Human-Machine Interfaces (HMIs) — LCD and keypad controllers plus graphics acceleration enable responsive user interfaces.
• Multimedia Appliances — NEON™ SIMD and multimedia co-processor capabilities support media processing tasks in embedded appliances.

Unique Advantages

• Integrated Multimedia Acceleration: NEON™ SIMD and multimedia co-processor reduce external processing requirements for media workloads.
• Comprehensive Connectivity: Multiple USB 2.0 ports and a 10/100 Mbps Ethernet interface provide flexible I/O options for device networking and peripherals.
• Security Feature Set: On-chip ARM TZ, secure boot, cryptography, and secure JTAG/fusebox options help implement secure embedded designs.
• Flexible Memory Support: DDR2 and LPDDR2 controller support accommodates a range of memory choices for performance and cost trade-offs.
• Compact Surface-Mount Package: 529-LFBGA (19×19) package enables dense board layouts while supporting thermal and mechanical requirements for consumer products.
• Consumer Temperature Range: Rated for -20 °C to 85 °C to meet typical consumer product environments.

Why Choose MCIMX515DJM8C?

The MCIMX515DJM8C positions itself as a compact, integrated microprocessor for embedded and consumer applications that need a balance of CPU performance, multimedia capability, connectivity, and device-level security. Its ARM® Cortex®-A8 core at 800 MHz, combined with NEON™ SIMD and multimedia acceleration, supports a range of UI and media tasks while reducing external component count.

As part of the i.MX 515 series from NXP Semiconductors, this device is suited for designers seeking a single-chip solution with multiple USB ports, Ethernet, display interfaces, and robust security primitives in a 529-LFBGA surface-mount package. Its RoHS compliance and consumer temperature rating support reliable deployment in consumer embedded products.

Request a quote or submit a parts inquiry to receive pricing and availability for the MCIMX515DJM8C for your next embedded design.
