MCIMX514AJM6C

The MCIMX514AJM6C is an NXP Semiconductors i.MX 514 series microprocessor featuring a single ARM® Cortex®-A8 core running at 600 MHz in a 529-ball LFBGA (19×19) package. Designed for embedded, IoT and industrial solutions, this device integrates multimedia acceleration, rich I/O and a comprehensive hardware security feature set to address compact system designs.

Key Features

• Core Single ARM® Cortex®-A8 32-bit core running at 600 MHz for general-purpose embedded processing.
• Multimedia and SIMD On-chip multimedia co-processor with NEON™ SIMD support to accelerate media and signal-processing workloads.
• Memory Controllers Integrated controllers for LPDDR and DDR2 memory to support a range of memory performance and capacity options.
• Display and UI Display interface controllers for LCD and keypad support plus graphics acceleration for user interfaces.
• Connectivity Single 10/100 Mbps Ethernet port and multiple USB controllers (three USB 2.0, plus one USB 2.0 with PHY) for wired networking and peripheral connectivity.
• Security Hardware security features including ARM TrustZone (TZ), boot security, cryptography, RTIC, secure fusebox, secure JTAG, secure memory and secure RTC.
• Additional Interfaces 1-Wire interface for simple sensor and peripheral connectivity.

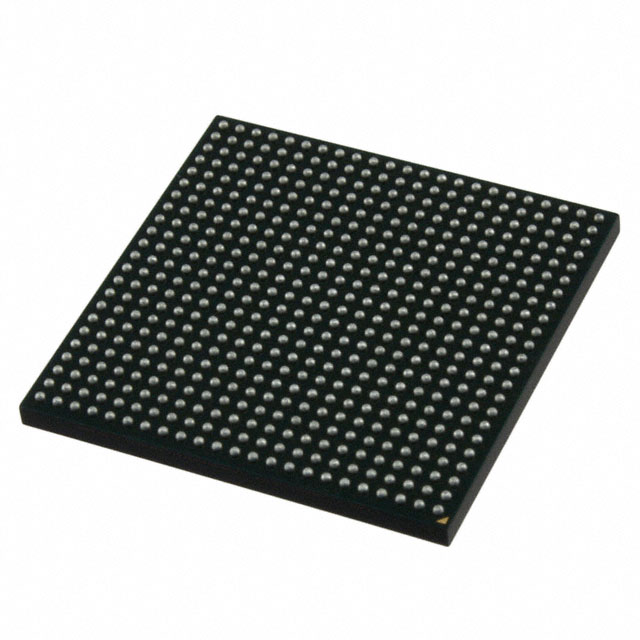

• Package and Mounting 529-LFBGA (529-BGA, 19×19) surface-mount package for high-density board designs.
• Qualification and Environmental Industrial qualification with an operating temperature range of −40 °C to 125 °C and RoHS compliance.

Typical Applications

• Industrial Control Use in embedded controllers and machine interfaces where industrial temperature range and Ethernet connectivity are required.
• IoT Gateways and Edge Devices Ethernet and multiple USB ports enable networked gateway designs and peripheral aggregation at the edge.
• Human-Machine Interfaces (HMIs) LCD support and graphics acceleration suit display-driven user interfaces and keypad-based controls.
• Multimedia-Enabled Embedded Systems NEON SIMD and multimedia co-processing support basic media and signal-processing tasks in compact systems.

Unique Advantages

• Compact, single-core performance: ARM® Cortex®-A8 core at 600 MHz delivers deterministic 32-bit processing in a small footprint.
• Integrated multimedia acceleration: NEON™ SIMD and graphics acceleration reduce external component needs for media and UI tasks.
• Comprehensive hardware security: Multiple built-in security features protect boot, cryptographic operations and secure storage.
• Flexible memory support: LPDDR and DDR2 controllers allow designers to choose memory types that match performance and cost targets.
• Industrial-ready thermal range: −40 °C to 125 °C operating range supports deployment in harsh environments.
• High-density packaging: 529-LFBGA surface-mount package enables space-efficient board designs.

Why Choose MCIMX514AJM6C?

The MCIMX514AJM6C positions itself as a compact, integrated solution for embedded, IoT and industrial designs that require a single 32-bit ARM® Cortex®-A8 core combined with multimedia acceleration, broad I/O and a robust hardware security suite. Its support for LPDDR/DDR2 memory, multiple USB ports, Ethernet and display controllers makes it suitable for space-constrained systems that still demand rich connectivity and user-interface capabilities.

Backed by NXP Semiconductors and the i.MX 514 series pedigree, this device is a practical choice for engineers building industrial and IoT products that need validated security features, industrial temperature operation and a high-density BGA package.

Request a quote or submit an inquiry to receive pricing and availability information for the MCIMX514AJM6C. Our team can assist with technical questions and support your design requirements.
