MCIMX6S1AVM08ACR

The MCIMX6S1AVM08ACR is an NXP i.MX 6S series microprocessor based on a single ARM® Cortex®-A9 core running at 800 MHz. It targets embedded multimedia applications requiring a compact, high‑performance application processor with integrated graphics acceleration and broad peripheral support.

Series-level capabilities include 2D/3D graphics and video processing, a DDR/LPDDR memory interface, and integrated power management, making this device suitable for designs that need processing performance, multimedia features, and a rich set of I/O in a 21 × 21 mm 624‑MAPBGA package.

Key Features

• Core ARM® Cortex®-A9 single core, 32‑bit, operating at 800 MHz for general-purpose embedded processing.
• Multimedia and Acceleration Integrated graphics acceleration and series-level support for 2D/3D graphics and 1080p video processing.
• Memory Memory controller support for LPDDR2, LVDDR3 and DDR3 devices to match a range of system memory designs.
• Peripherals and Interfaces Multiple high-speed and peripheral interfaces including four USB 2.0 controllers with PHY, keypad and LCD display controllers, and CAN.
• Networking Integrated Ethernet MAC supporting 10/100/1000 Mbps (1) for wired network connectivity.
• Security Built-in security features include ARM TrustZone (ARM TZ), boot security, cryptography, secure fusebox, secure JTAG, secure memory, secure RTC, RTIC and tamper detection.

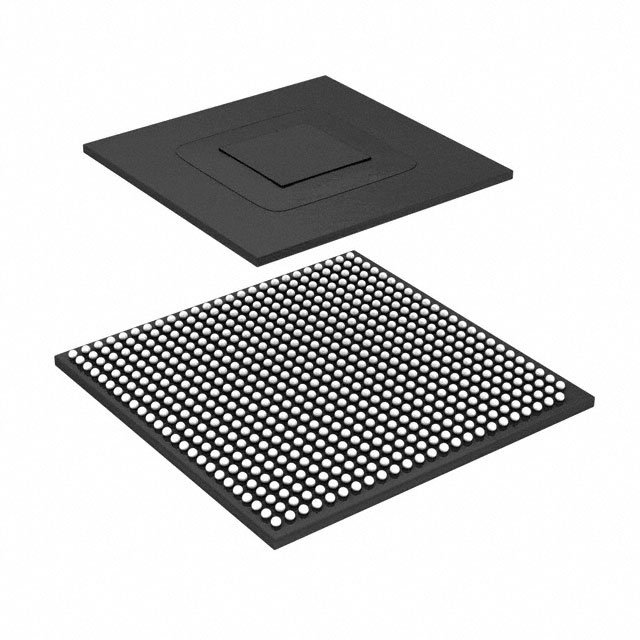

• Package and Mounting Supplier device package: 624‑MAPBGA (21 × 21 mm). Package case listed as 624‑LFBGA; device is surface‑mount.
• Operating Range Rated for an operating temperature range of −40 °C to 125 °C.
• Qualification Specification field indicates Automotive qualification in the provided product data.
• Standards Compliance RoHS compliant as stated in product specifications.

Typical Applications

• Multimedia Tablets and Portable Devices Use the integrated graphics acceleration and display controllers for responsive user interfaces and video playback.
• Human‑Machine Interfaces (HMI) Drive LCD panels and handle keypad input for industrial and consumer HMIs requiring multimedia and touch/keypress control.
• Connected Embedded Systems Leverage Gigabit Ethernet and CAN for wired networking and vehicle or industrial connectivity in embedded applications.
• Embedded Multimedia Appliances Implement 2D/3D graphical UIs and 1080p video processing in consumer or kiosk systems.

Unique Advantages

• Integrated Multimedia Subsystem: On‑chip graphics acceleration and series video capabilities reduce the need for external GPUs or video processors.
• Flexible Memory Support: Native controllers for LPDDR2, LVDDR3 and DDR3 give designers memory choice to balance cost and performance.
• Comprehensive Security Suite: Multiple hardware security features support secure boot, cryptography and runtime protection for sensitive applications.
• Broad Peripheral Mix: Abundant USB ports with PHY, Ethernet, CAN and display interfaces streamline system integration for connected products.
• Rugged Operating Range: Specified −40 °C to 125 °C operation supports deployment in temperature‑challenging environments.
• RoHS Compliant: Meets RoHS requirements for lead‑free designs and environmental compliance.

Why Choose MCIMX6S1AVM08ACR?

The MCIMX6S1AVM08ACR combines an ARM® Cortex®‑A9 core at 800 MHz with a multimedia‑focused feature set and a wide range of I/O to address embedded applications that require video/graphics, secure boot and robust connectivity. Its memory flexibility and integrated peripherals simplify BOM and system architecture for compact, feature‑rich devices.

This device is appropriate for designers building multimedia tablets, HMIs, connected appliances or other embedded systems that need a balance of processing performance, integrated graphics, and secure system features in a compact 21 × 21 mm BGA package.

Request a quote or submit your project requirements to receive pricing, lead‑time and packaging options tailored to your design needs.
