MCIMX7D2DVM12SD

The MCIMX7D2DVM12SD is an NXP i.MX 7D dual-core microprocessor IC combining an ARM® Cortex®-A7 and an ARM® Cortex®-M4 core in a single device running at 1.2 GHz. It is designed for connected and portable embedded applications that require functional integration and low-power operation.

Targeted use cases include audio devices, human‑machine interfaces, access control systems, portable medical and healthcare equipment, and IP phones, where balanced application processing and real‑time control are needed.

Key Features

• Dual-Core Architecture — ARM® Cortex®-A7 and ARM® Cortex®-M4 cores provide 2-core, 32-bit processing with a Cortex‑A7 core clock up to 1.2 GHz for application processing and a Cortex‑M4 for real‑time tasks.
• Multimedia Acceleration — Integrated multimedia DSP and NEON™ MPE provide SIMD acceleration for signal processing and media workloads.
• Flexible Memory Interfaces — Supports LPDDR2, LPDDR3, DDR3 and DDR3L memory controllers for a range of DRAM options and performance points.
• Display and Audio Interfaces — Display interface support includes keypad, LCD and MIPI; additional audio/peripheral support includes AC'97.
• High‑Speed Connectivity — Dual Ethernet ports supporting 10/100/1000 Mbps and multiple USB 2.0 interfaces: one USB 2.0 + PHY and two USB 2.0 OTG + PHY.
• On‑Chip Power and Clocking — Integrated LDO voltage regulator parameters, PLLs and on‑chip oscillators are provided as documented in the i.MX7D datasheet.
• Security Features — Hardware security features include A‑HAB, ARM TrustZone (ARM TZ), CAAM, CSU, SJC and SNVS for secure boot and system integrity.

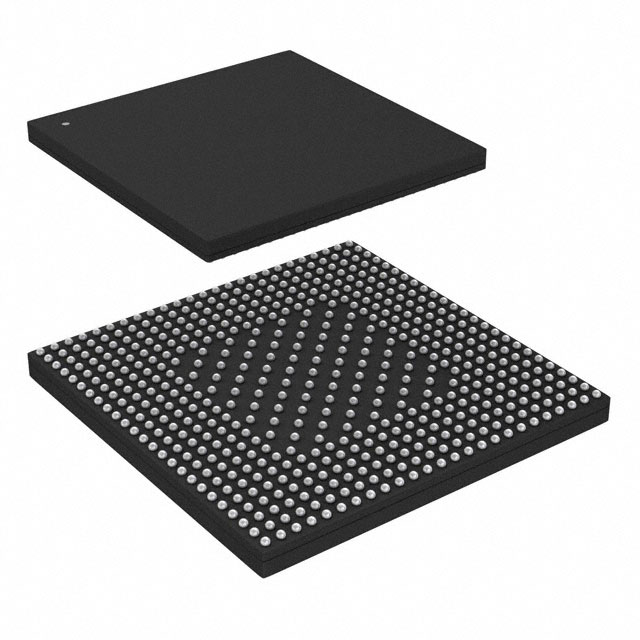

• Package and Mounting — Offered in a 541‑MAPBGA (19×19 mm) supplier device package and 541‑LFBGA package case; surface‑mountable for compact board designs.
• Commercial Qualification & Compliance — Consumer qualification with RoHS compliance and an operating temperature range of 0 °C to 85 °C.

Typical Applications

• Audio and Voice Systems — Use the multimedia DSP and NEON MPE to handle audio processing, codecs and voice interfaces in consumer audio and IP telephony devices.
• Human‑Machine Interfaces (HMI) — Combine the Cortex‑A7 application core with display interfaces (LCD, MIPI) to drive responsive user interfaces and graphical control panels.
• Access Control and Security Panels — Dual-core processing with built-in security features supports secure authentication, network connectivity and real‑time control.
• Portable Medical & Healthcare — Low‑power, integrated design and real‑time M4 core are suited for portable monitoring and medical devices requiring both application processing and deterministic control.

Unique Advantages

• Highly integrated dual-core solution: Combines application and real‑time cores in one IC to simplify system architecture and offload deterministic tasks to the M4 core.
• Comprehensive connectivity: Dual Gigabit Ethernet and multiple USB 2.0 ports enable robust wired networking and peripheral support for connected devices.
• Flexible memory options: Support for LPDDR2/LPDDR3 and DDR3/DDR3L memory controllers allows designers to match memory choice to performance and cost targets.
• On‑chip power and clock management: Integrated LDO regulator parameters, PLLs and on‑chip oscillators reduce external component count and ease board design.
• Hardware security building blocks: Multiple security modules (A‑HAB, ARM TZ, CAAM, CSU, SJC, SNVS) provide layered mechanisms for secure boot and data protection.
• Compact BGA packaging: 541‑MAPBGA (19×19 mm) surface‑mount package supports dense, space‑constrained designs.

Why Choose MCIMX7D2DVM12SD?

The MCIMX7D2DVM12SD positions itself as a balanced embedded processor offering application performance and real‑time control through its ARM® Cortex®‑A7 and Cortex®‑M4 cores, while providing extensive connectivity, security and memory interface options. Its integration of power management and clocking elements simplifies system design and reduces bill‑of‑materials for space‑ and power‑sensitive products.

This device is well suited for engineers developing connected consumer, HMI, audio and portable medical products who need a commercially qualified, RoHS‑compliant processor with dual Ethernet, multiple USB interfaces, and a compact BGA footprint within an established i.MX 7Dual family.

Request a quote or submit a procurement inquiry to get pricing and availability for the MCIMX7D2DVM12SD. Our team can help confirm fit for your design and provide the latest lead‑time information.
