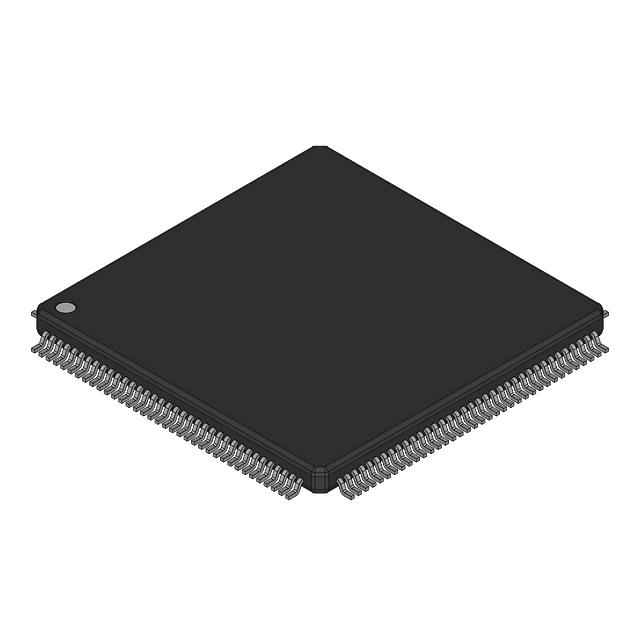

NG80960JA16

The NG80960JA16 is a microprocessor IC based on Intel's i960 core, delivering a single 32-bit RISC processing engine at 16MHz in a 132-pin PQFP package. Designed for embedded applications, it provides a compact surface-mount solution with 3.3 V I/O and commercial-grade operating characteristics.

This part is RoHS compliant and specified for commercial use, making it suitable for embedded system designs that require a 32-bit RISC processor in a 132‑QFP form factor with an operating range of 0 °C to 100 °C.

Key Features

• Core Single i960 32-bit RISC core operating at 16MHz, providing a standard 32-bit processing architecture.
• Power 3.3 V I/O voltage level for compatibility with common embedded system power domains.
• Package & Mounting 132‑pin PQFP (132‑QFP) surface-mount package for board-level integration and standardized footprint.
• Grade & Temperature Range Commercial grade device rated for operation from 0 °C to 100 °C.
• Graphics Acceleration No integrated graphics acceleration; focused on processor core functionality.
• Environmental Compliance RoHS compliant to support lead‑free manufacturing requirements.

Typical Applications

• Embedded Systems General-purpose embedded processing where a 32-bit RISC core and 16MHz operation are required.
• Commercial Product Integration Suited for commercial-grade products that operate within a 0 °C to 100 °C temperature window.
• Surface-Mount Board Designs 132‑QFP surface-mount package enables straightforward board-level assembly and integration.
• RoHS-Compliant Designs Appropriate for products requiring RoHS conformance in component selection and manufacturing.

Unique Advantages

• 32‑Bit i960 Architecture: Provides a single, standardized 32-bit RISC core for consistent instruction set and processing model.
• 16MHz Clocking: Fixed 16MHz operation suitable for designs targeting that clock domain.
• 3.3 V I/O Compatibility: Native 3.3 V I/O simplifies interfacing with common logic families and peripherals.
• Compact PQFP132 Package: 132‑pin QFP offers a dense pinout while remaining compatible with surface-mount assembly processes.
• Commercial Operating Range: Rated for 0 °C to 100 °C operation to match common commercial application environments.
• RoHS Compliant: Supports lead-free design and manufacturing requirements.

Why Choose NG80960JA16?

The NG80960JA16 brings Intel's i960 32-bit RISC core to a surface-mount 132‑QFP package with 3.3 V I/O, a 16MHz clock, and commercial-grade temperature specifications. Its combination of a well-defined processor architecture and RoHS compliance makes it a practical choice for embedded designs that require a straightforward, single-core 32-bit MPU in a compact package.

This part is suited to designers and teams selecting components for commercial embedded products where clear electrical and thermal specifications, surface-mount assembly, and environmental compliance are important selection criteria.

Request a quote or submit an inquiry to obtain pricing, availability, and procurement details for NG80960JA16.
