NG80960JA25

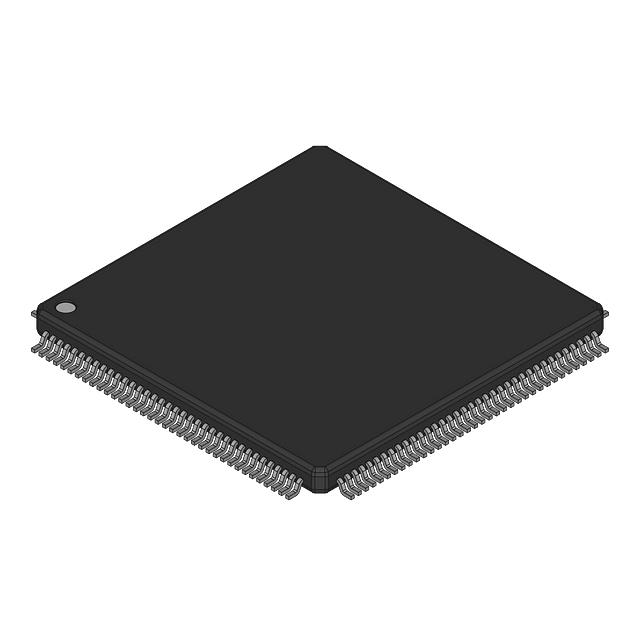

The NG80960JA25 is a microprocessor IC from Intel’s i960 Jx series featuring a single 32-bit i960 core running at 25 MHz. It is supplied in a 132-pin QFP surface-mount package and is targeted at embedded and commercial microprocessor applications.

Key attributes include 3.3 V I/O, a commercial operating temperature range of 0 °C to 100 °C, and RoHS compliance, making it suitable for a range of embedded designs that align with the i960 processor family.

Key Features

• Core Single i960 core with a 32-bit data path as specified for the NG80960JA25, providing a consistent architecture for embedded designs.
• Clock / Performance 25 MHz operating frequency as indicated in the product name for determinable timing and system integration.
• Power 3.3 V I/O voltage, suitable for common embedded system voltage domains.
• Package & Mounting 132-pin QFP (132-QFP) surface-mount package, enabling standard PCB assembly and proven board-level integration.
• Operating Range & Grade Commercial grade with an operating temperature range of 0 °C to 100 °C, appropriate for typical commercial and industrial-environment embedded applications.
• Environmental Compliance RoHS compliant, supporting regulatory requirements for lead-free manufacturing.
• Graphics No graphics acceleration; the device is focused on CPU processing as specified.

Typical Applications

• Embedded Controllers Use as the central processing element in embedded hardware designs requiring a single 32-bit i960 core with 3.3 V I/O and a 132-QFP footprint.
• Commercial Instrumentation Suitable for commercial instrumentation where a commercial-grade microprocessor and a 0 °C to 100 °C operating range are acceptable.
• Industrial Automation Integration into control and automation equipment that utilize the i960 architecture and require surface-mount QFP packaging.

Unique Advantages

• Intel i960 Architecture: Native i960 core provides a consistent 32-bit architecture for designs aligned with the i960 Jx series.
• Defined I/O Voltage: 3.3 V I/O simplifies interface design with common embedded components and peripherals.
• Standard Surface-Mount Package: 132-QFP package supports established PCB assembly and prototyping processes.
• Commercial Temperature Range: 0 °C to 100 °C operation caters to a wide range of non-automotive commercial applications.
• RoHS Compliant: Meets lead-free manufacturing requirements for regulated markets.
• Clear Feature Set: No graphics acceleration—useful where the application requires CPU-focused processing without integrated graphics resources.

Why Choose NG80960JA25?

The NG80960JA25 combines the Intel i960 single 32-bit core with a 25 MHz clock, 3.3 V I/O, and a 132-pin QFP surface-mount package to deliver a straightforward, verifiable platform for embedded and commercial applications. Its commercial temperature range and RoHS compliance make it suitable for designs that prioritize clear hardware parameters and regulatory alignment.

This part is well matched to engineers and procurement teams building systems around the i960 Jx series who need a documented hardware footprint and defined electrical and thermal limits. Choosing NG80960JA25 supports designs that require a single-core 32-bit processor with established packaging and voltage characteristics.

Request a quote or submit an inquiry for NG80960JA25 to receive pricing and availability information for your next embedded design.
