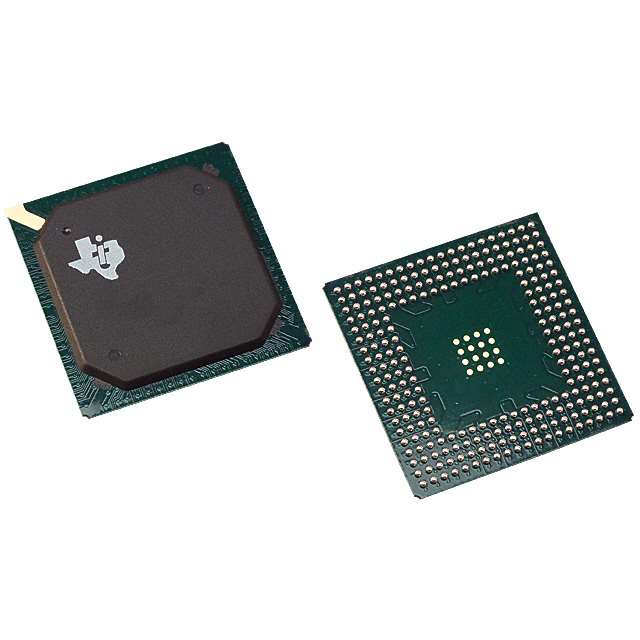

OMAPL137BZKBT3

The OMAPL137BZKBT3 is an ARM926EJ-S microprocessor IC from the OMAP-L13x series featuring a single 32-bit core running at 375 MHz in a 256-BGA (17×17) package. It targets embedded applications that require a balanced combination of compute, on-chip peripherals, and security features.

On-chip controllers and interfaces—including SDRAM controller, LCD display controller, Ethernet, SATA, USB with PHYs and HPI—provide integration for systems that combine connectivity, storage, and display functionality while operating across a wide temperature range.

Key Features

• Core — Single ARM926EJ-S 32-bit core running at 375 MHz, suitable for general embedded processing tasks.
• Memory and Bus — Integrated SDRAM controller to interface with external SDRAM devices for system memory.
• Co-processors — Includes signal processing support (C674x) and system control coprocessor (CP15) to support dedicated processing tasks.
• Display — Built-in LCD display controller for driving display panels and user interfaces.
• Connectivity — 10/100 Mbps Ethernet interface for networked applications and an HPI interface for host parallel communication.
• Storage — On-chip SATA 3 Gbps interface for direct connection to storage devices.
• USB — USB 1.1 and USB 2.0 controllers with PHYs, enabling a range of USB peripheral and host configurations.
• Security — Boot security and cryptography features to support secure boot and data protection functions.
• Package and Mounting — 256-ball BGA package (17×17) with surface-mount mounting for compact PCB integration.
• Operating Temperature — Rated for operation from −40 °C to 125 °C, supporting deployment in wide-temperature environments.
• Graphics — No dedicated graphics acceleration included.

Typical Applications

• Embedded control platforms — Single-core ARM processing with SDRAM support and HPI makes the device suitable for embedded controllers that require peripheral connectivity and external memory.
• Networked appliances — Integrated 10/100 Mbps Ethernet and USB interfaces enable network connectivity and peripheral integration for connected devices.
• Storage-enabled systems — SATA 3 Gbps interface provides direct attachment for storage subsystems and data-logging applications.
• Human–machine interfaces (HMI) — On-chip LCD controller supports display-driven interfaces and control panels.
• Wide-temperature embedded equipment — −40 °C to 125 °C operating range for systems deployed in harsh or industrial environments.

Unique Advantages

• Integrated peripheral set: Ethernet, SATA, USB (1.1 and 2.0) with PHYs, LCD controller, and HPI reduce external component count and simplify board design.
• Security primitives on-chip: Boot security and cryptography features support secure system boot and data protection without requiring additional security ICs.
• Storage-ready interface: Native SATA 3 Gbps enables direct connection to disk or flash storage for data-intensive embedded applications.
• Single-core deterministic compute: A 375 MHz ARM926EJ-S core provides consistent, predictable processing capability for control and real-time tasks.
• Robust thermal range: −40 °C to 125 °C capability supports designs that must operate across wide temperature extremes.
• Compact BGA footprint: The 256-ball 17×17 BGA package allows high-density PCB layouts while keeping a broad set of interfaces available.

Why Choose OMAPL137BZKBT3?

The OMAPL137BZKBT3 combines a 375 MHz ARM926EJ-S core with a broad set of integrated interfaces—Ethernet, SATA, USB with PHYs, LCD controller, SDRAM controller and HPI—making it a solid choice for embedded designs that require connectivity, storage, display and on-chip security. Its specification-driven feature set supports streamlined BOMs and compact board designs.

This device is suited for engineers and designers building networked or storage-capable embedded systems that need predictable single-core performance, integrated peripheral support, and operation across a wide temperature range. It offers a clear integration advantage for systems where these exact interfaces and operating conditions are required.

Request a quote or submit an inquiry to receive pricing and availability information for OMAPL137BZKBT3 and to discuss how it fits your next embedded design.
