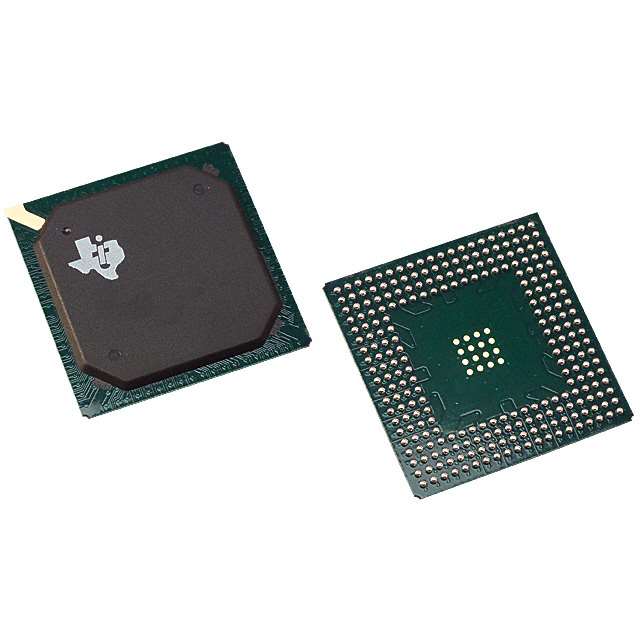

OMAPL137CZKB4

The OMAPL137CZKB4 is an ARM926EJ-S microprocessor IC from the OMAP-L13x series, featuring a single 32-bit core running at 456 MHz in a 256-ball BGA (17×17) package. Designed for embedded applications, it integrates peripheral controllers and co-processor support to address designs that require on-chip connectivity, display interfacing, storage, and signal processing capabilities.

With integrated Ethernet, SATA, USB interfaces and security features such as boot security and cryptography, this device targets commercial embedded systems that demand a compact, surface-mount processor solution with a defined operating temperature range.

Key Features

• Core and Performance ARM926EJ-S core, single 32-bit core at 456 MHz for deterministic embedded processing.
• Co-processors Signal processing support via C674x and system control via CP15 to assist specialized workloads.
• Memory and Display SDRAM controller and an LCD display interface controller for system memory and display connectivity.
• Connectivity Integrated Ethernet 10/100 Mbps (1 port), SATA 3 Gbps (1 port), and USB interfaces including USB 1.1 + PHY and USB 2.0 + PHY.
• Additional Interfaces Host Port Interface (HPI) available for external device communication.
• Security Boot security and cryptography features are included to support secure system boot and data protection.
• Package and Mounting 256-BGA (17×17) supplier device package, for surface-mount assembly in compact board designs.
• Operating Range and Grade Commercial grade with an operating temperature range of 0°C to 90°C.
• Environmental Compliance RoHS compliant.

Typical Applications

• Embedded Control and Automation — Single-core ARM926EJ-S processing and system control support make it suitable for control-oriented embedded systems.
• Networking and Storage Appliances — Integrated Ethernet 10/100 and SATA 3 Gbps provide on-chip connectivity for compact networked or storage devices.
• Human-Machine Interfaces (HMI) — LCD display interface and SDRAM controller support basic display-driven embedded interfaces.
• Signal Processing and Sensor Interfaces — C674x signal processing support and HPI enable signal-oriented processing and external data interfacing.

Unique Advantages

• Integrated connectivity set — Ethernet, SATA and USB interfaces included on-chip reduce external component count for connected embedded designs.
• Dedicated signal processing support — C674x co-processor capability enables targeted signal processing tasks without additional discrete DSP chips.
• Security-ready — Built-in boot security and cryptography features help protect system integrity and stored data.
• Compact surface-mount package — 256-BGA (17×17) package supports space-constrained PCB layouts while enabling automated assembly.
• Commercial temperature range — 0°C to 90°C rating aligns with a wide range of indoor and industrial-environment embedded applications.
• RoHS compliant — Meets common environmental compliance requirements for commercial electronics manufacturing.

Why Choose OMAPL137CZKB4?

The OMAPL137CZKB4 combines a 456 MHz ARM926EJ-S core with integrated connectivity, memory interface, co-processor support, and security features in a compact 256-BGA package. Its integration reduces board-level complexity while providing the interfaces commonly required in embedded systems, from display and storage to network connectivity.

This part is suited to commercial embedded product teams and engineers designing compact, connected devices that require a balance of processing, signal processing support, and on-chip peripherals. Its defined operating range and RoHS compliance support predictable manufacturing and deployment in commercial environments.

Request a quote for OMAPL137CZKB4 to evaluate pricing and availability for your design requirements.
