OMAPL138BZCG4

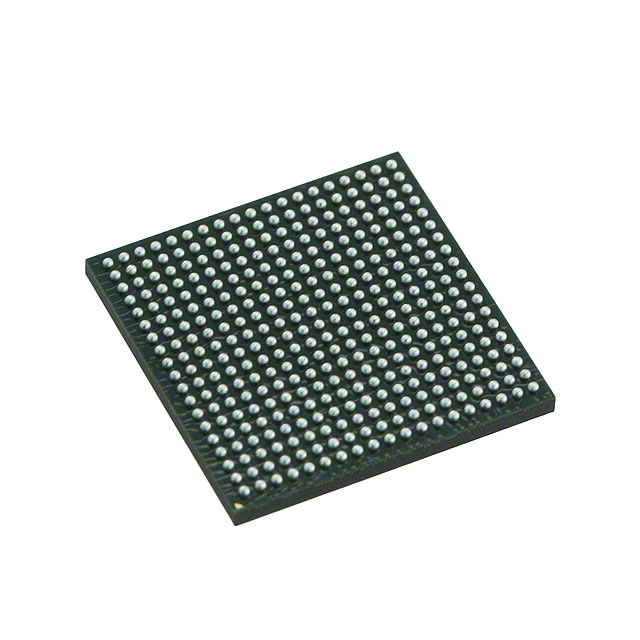

The OMAPL138BZCG4 is an OMAP-L1x series microprocessor IC featuring an ARM926EJ-S single 32-bit core running at 456 MHz. It combines an ARM application processor with a C674x signal-processing co-processor and a broad set of peripheral controllers to support embedded designs that require on-chip processing and peripheral integration.

Designed for commercial-grade embedded applications, the device provides integrated connectivity and storage interfaces, SDRAM memory support, hardware security features, and a compact 361‑NFBGA (13×13) surface-mount package for space-constrained systems.

Key Features

• Processor Core  The ARM926EJ-S single 32-bit core operates at 456 MHz, delivering predictable embedded CPU performance for control and application tasks.
• Signal-Processing Co-Processor  Includes a C674x DSP co-processor for signal-processing workloads and CP15 for system control, enabling offload of compute-intensive tasks.
• Memory and External Memory Interfaces  SDRAM memory controller is provided; datasheet series details include external memory interface options (EMIFA) and DDR2 support for flexible memory subsystem implementation.
• Display and Host Interfaces  On-chip LCD display controller and Host Port Interface (HPI) support integration of local displays and external host connections.
• High-Speed I/O and Storage  Integrated peripherals include 10/100 Mbps Ethernet (1), SATA 3 Gbps (1), USB 1.1 + PHY (1) and USB 2.0 + PHY (1) for networking, peripheral and storage connectivity.
• Security Features  Boot security and cryptography features are available to help protect boot integrity and support secure functions.
• Package and Mounting  Supplied in a 361‑NFBGA (13×13) package, intended for surface-mount PCB assembly to support compact system designs.
• Operating Range and Compliance  Commercial-grade device with an operating temperature range of 0 °C to 90 °C and RoHS compliance for environmental standards.

Typical Applications

• Embedded Networking and Gateways  Use Ethernet, USB and SATA interfaces to enable networked appliances, edge gateways or protocol-conversion devices that require integrated I/O and storage.
• Signal Processing Systems  Combine the ARM core with the C674x DSP co-processor for applications needing real-time signal processing or algorithm acceleration.
• User Interface and Display Controllers  Integrate local display functionality using the on-chip LCD controller for human-machine interfaces in embedded products.
• Compact Embedded Controllers  The 361‑NFBGA package and surface-mount mounting are suitable for space-constrained control platforms that require a mix of compute and peripheral connectivity.

Unique Advantages

• Integrated Processor Pairing  ARM926EJ-S CPU plus a C674x DSP co-processor lets designers partition control and signal-processing tasks without adding discrete DSP devices.
• Wide Peripheral Set  On-chip Ethernet, SATA, USB 1.1/2.0 and LCD controller reduce external component count and simplify system-level design.
• On-Device Security  Built-in boot security and cryptography features help protect system boot and secure operations without external security ICs.
• Compact, Surface-Mount Package  361‑NFBGA (13×13) package enables dense PCB layouts for compact embedded systems.
• Commercial Temperature and RoHS Compliance  Rated 0 °C to 90 °C for commercial applications and RoHS-compliant for environmental requirements.

Why Choose OMAPL138BZCG4?

OMAPL138BZCG4 positions itself as a highly integrated embedded MPU solution that combines an ARM926EJ-S application core with a C674x DSP co-processor and a broad set of interfaces (Ethernet, SATA, USB, LCD, SDRAM). This combination supports designs that need both control and signal-processing capability while minimizing external components.

The device is suitable for commercial embedded developers seeking a single-package platform that balances processing capability, peripheral integration and secure boot features. Its compact 361‑NFBGA package and commercial operating range make it a practical choice for space- and cost-sensitive product designs.

Request a quote or submit an inquiry to receive pricing, availability and lead-time information for OMAPL138BZCG4.
