10AX022E3F27E1HG

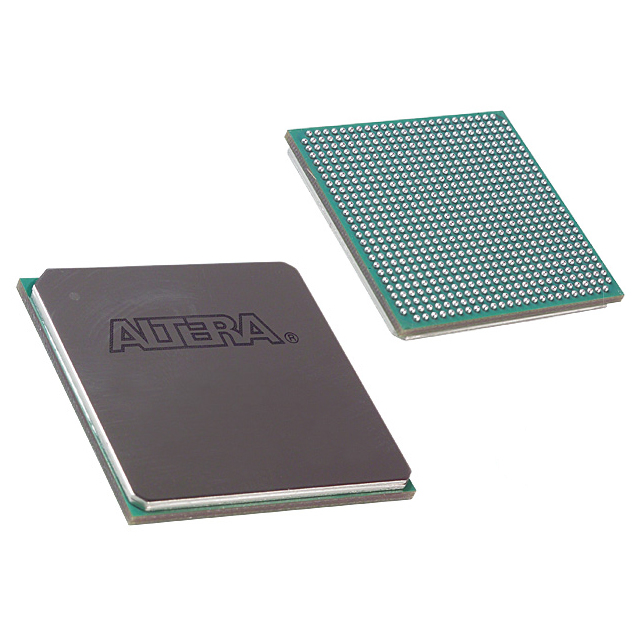

The 10AX022E3F27E1HG is an Intel Arria 10 GX field-programmable gate array (FPGA) in a 672‑BBGA/FCBGA package intended for surface-mount applications. It belongs to the Arria 10 device family, a 20 nm mid-range FPGA family described as delivering higher performance and improved power efficiency for power-sensitive designs.

This device provides 220,000 logic elements, 13,752,320 total RAM bits, and 240 I/Os, making it suitable for mid-range applications that require significant logic density, embedded memory capacity, and flexible I/O resources. Key electrical and environmental characteristics include a core supply range of 870 mV to 930 mV and an operating temperature range of 0 °C to 100 °C.

Key Features

• Core Logic  220,000 logic elements provide substantial programmable resources for implementing complex digital functions and custom accelerators.
• Embedded Memory  13,752,320 total RAM bits for on-chip buffering, state storage, and memory-intensive algorithms.
• I/O Density  240 general-purpose I/O pins to support multiple interfaces and parallel buses in board-level designs.
• Package & Mounting  672‑BBGA (672‑FBGA, 27×27) package for surface-mount PCB assembly, enabling compact board layouts.
• Power & Voltage  Core voltage supply specified from 870 mV to 930 mV to match design power domains and regulators.
• Temperature Grade  Extended grade operation across 0 °C to 100 °C for applications requiring above-commercial temperature range performance.
• RoHS Compliance  Device is RoHS compliant for regulatory and environmental requirements.
• Arria 10 Family Capabilities  Device is part of the Arria 10 family, which includes features such as adaptive logic modules, variable-precision DSP blocks, embedded memory blocks, clock networks with PLLs, and support for high-speed serial transceivers and hard IP (PCIe Gen1/2/3, 10 Gbps Ethernet) as described in the product family documentation.

Typical Applications

• Wireless Infrastructure  Channel and switch cards in remote radio heads and mobile backhaul designs that require programmable signal processing and I/O flexibility.
• Wireline Networking  Line cards, muxponder/transponder subsystems, and aggregation equipment where mid-range FPGA performance and embedded memory are needed.
• Broadcast & Pro AV  Studio switches, professional audio/video processing, and transport functions that benefit from on-chip buffering and programmable logic.
• Computing & Storage  Cloud server acceleration, flash cache, and storage controllers that leverage logic density and embedded RAM.
• Medical & Imaging  Diagnostic imaging and scanner subsystems that require custom processing pipelines and significant on-chip memory.

Unique Advantages

• High logic density: 220,000 logic elements allow implementation of complex algorithms and multi-function designs without immediate need for additional FPGAs.
• Substantial on-chip RAM: 13,752,320 total RAM bits reduce external memory dependence for many buffering and stateful processing tasks.
• Flexible I/O count: 240 I/Os support multiple peripheral interfaces and high-pin-count system integrations on a single device.
• Compact surface-mount package: 672‑FBGA (27×27) packaging enables dense PCB layouts while maintaining robust thermal and electrical characteristics.
• Family-level system features: As part of the Arria 10 family, the device benefits from series capabilities such as DSP blocks, PLL-based clocking, and support for high-speed serial and protocol hard IP, aiding faster system integration.
• Extended temperature operation: Rated 0 °C to 100 °C to accommodate designs that require above-commercial temperature ranges.

Why Choose 10AX022E3F27E1HG?

This Arria 10 GX FPGA provides a balanced combination of programmable logic density, embedded RAM capacity, and a high I/O count within a compact 672‑FBGA surface-mount package. It is positioned for mid-range, performance-sensitive applications where on-chip memory and substantial logic resources reduce system complexity and external component count.

Designed within the Arria 10 family, this device aligns with development flows targeting 20 nm mid-range FPGAs and SoCs, offering long-term value through scalable device family features and documented device family capabilities for transceivers, DSP, and clocking resources.
