5AGZME1H3F35I4N

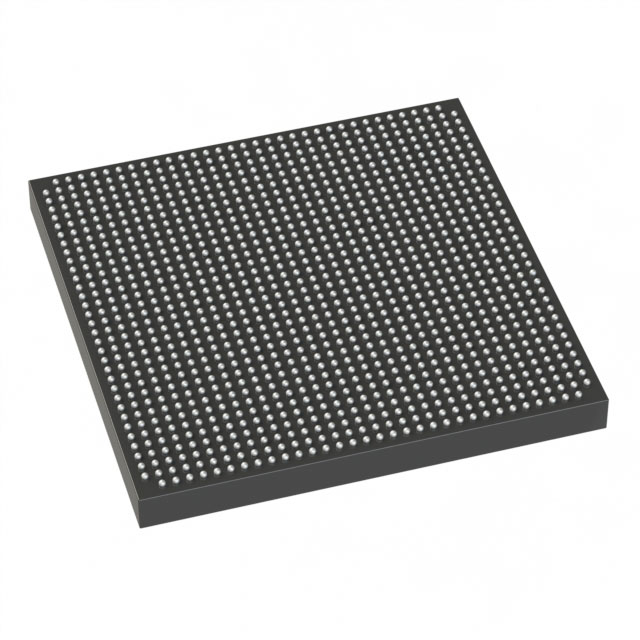

The 5AGZME1H3F35I4N is an Intel Arria V GZ series field programmable gate array supplied in a 1152-BBGA (FCBGA) surface-mount package. This industrial-grade device provides 220,000 logic elements, approximately 15.28 Mbits of on-chip RAM, and 414 user I/O pins for complex, high‑density programmable designs. The device is specified for a core supply range of 820 mV to 880 mV and an operating temperature range of −40 °C to 100 °C, and it is RoHS compliant.

Key Features

• Programmable logic 220,000 logic elements for implementing large-scale, customized digital logic functions.
• Embedded memory Approximately 15.28 Mbits of on-chip RAM to support buffering, state storage, and memory-intensive logic functions.
• I/O capacity 414 I/O pins to interface with a wide range of peripherals, buses, and external devices.
• Package & mounting 1152-BBGA (FCBGA) surface-mount package; supplier device package listed as 1152-FBGA (35×35).
• Voltage supply Core supply specified from 820 mV to 880 mV to match system power rails and power-management designs.
• Industrial operating range Rated for −40 °C to 100 °C operation for deployments that require extended temperature capability.
• Regulatory RoHS compliant.

Unique Advantages

• High-density logic capacity: 220,000 logic elements provide the implementation headroom needed for complex digital architectures and large FPGA designs.
• Substantial on-chip RAM: Approximately 15.28 Mbits of embedded memory reduces dependence on external memory for many buffering and storage tasks.
• Flexible I/O count: 414 I/O pins enable broad peripheral connectivity and flexible board-level partitioning.
• Industrial robustness: Specified for −40 °C to 100 °C operation to support systems operating across wide temperature ranges.
• Compact, surface-mount package: 1152-BBGA FCBGA package and 35×35 supplier footprint simplify board layout for high-density applications.
• Compliance-ready: RoHS compliance helps meet environmental and regulatory requirements.

Why Choose 5AGZME1H3F35I4N?

The 5AGZME1H3F35I4N positions itself as a high-capacity Arria V GZ FPGA option for designs that require significant programmable logic resources, substantial embedded memory, and a large I/O complement within a compact BGA footprint. Its industrial temperature rating and RoHS compliance make it suitable for long-life and environmentally constrained deployments.

This device is suitable for engineering teams and procurement seeking a programmable-logic IC with verified electrical and packaging specifications—providing design scalability, on-chip memory resources, and a clear operating-voltage and temperature envelope.

Request a quote or submit an inquiry to our sales team for pricing, availability, and lead-time information on part 5AGZME1H3F35I4N.
