5CGXFC5C7M13C8N

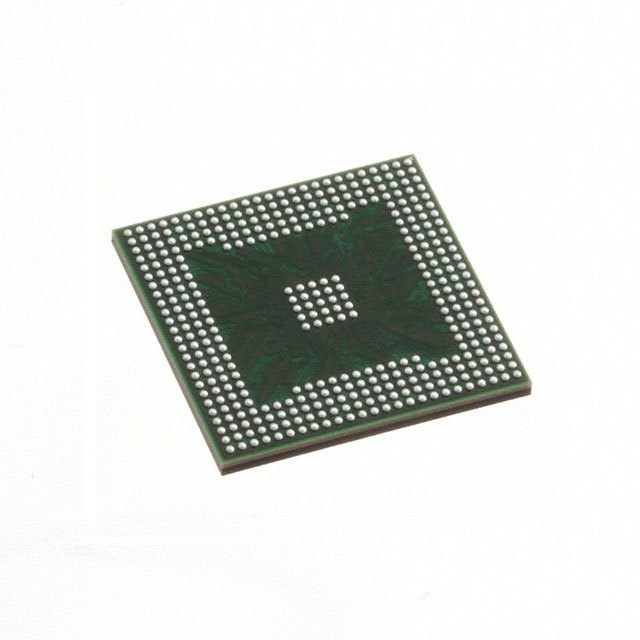

The 5CGXFC5C7M13C8N is a Cyclone® V GX Field Programmable Gate Array (FPGA) in a 383-TFBGA package. It delivers a balance of programmable logic, on-chip memory and I/O for cost-sensitive, high-volume embedded and communications designs.

Built on the Cyclone V device family, this part targets designs that require moderate logic density, integrated high-speed interfaces and low power operation while retaining commercial-grade temperature and packaging characteristics.

Key Features

• Logic Capacity  77,000 logic elements provide flexible programmable logic for custom control, datapath and glue logic implementations.
• Embedded Memory  Approximately 5 Mbits of embedded memory (5,001,216 total RAM bits) for FIFOs, buffers and local storage.
• I/O and Packaging  175 I/O pins in a 383-TFBGA package (supplier package: 383-MBGA, 13×13) with surface-mount construction for compact board integration.
• Low-Voltage Core  Core supply range specified at 1.07 V to 1.13 V to support the Cyclone V low-power device family architecture.
• Commercial Temperature Grade  Rated for 0 °C to 85 °C operation, suitable for commercial embedded and communications equipment.
• Series-Level Architecture  As part of the Cyclone V family, the device benefits from series features such as 28 nm low-power process technology and integrated hard IP elements including transceivers and memory controllers.
• RoHS Compliant  Environmental compliance for lead-free manufacturing and assembly.

Typical Applications

• Wireless and Wireline Communications  Implements interface logic, packet buffering and protocol adaptation where integrated transceivers and memory controllers are beneficial.
• Embedded Systems  Provides programmable control, custom peripheral glue logic and on-chip buffering in compact commercial designs.
• High-volume, Cost-sensitive Products  Addresses applications that prioritize low power and low system cost while requiring moderate FPGA capacity.
• Prototyping and System Integration  Useful for proof-of-concept and product development where Cyclone V family scalability and compatible package footprints simplify migration.

Unique Advantages

• Balanced Logic and Memory: 77,000 logic elements paired with approximately 5 Mbits of embedded RAM supports a wide range of mid-range FPGA tasks without external memory for many functions.
• Integrated I/O in Compact Package: 175 I/Os in a 383-TFBGA (13×13) footprint enable dense connectivity while minimizing board area.
• Low-Voltage Core Operation: Narrow core voltage range (1.07 V–1.13 V) aligns with the Cyclone V low-power architecture for reduced power consumption.
• Series-Level Integration: Benefits from Cyclone V family features such as 28 nm low-power process technology and available hard IP (transceivers, memory controllers) to simplify system design.
• Commercial Temperature and RoHS Compliance: Commercial grade temperature rating (0 °C–85 °C) and RoHS compliance make the device suitable for mainstream electronic products and manufacturing flows.

Why Choose 5CGXFC5C7M13C8N?

The 5CGXFC5C7M13C8N places moderate FPGA capacity, meaningful on-chip memory and a substantial I/O complement into a compact 383-TFBGA package, making it a practical choice for commercial embedded and communications designs that require integrated interfaces and cost-conscious power profiles. Its alignment with Cyclone V family architecture supports straightforward migration across device densities and compatible package footprints.

Choose this Cyclone V GX device when you need a commercially graded FPGA that combines programmable logic, embedded RAM and robust I/O connectivity within a low-power design envelope.

Request a quote or submit a sales inquiry to check availability and get pricing for the 5CGXFC5C7M13C8N.
