5CGXFC5F6M11I7N

The 5CGXFC5F6M11I7N is an Intel Cyclone® V GX field-programmable gate array (FPGA) in a 301-TFBGA package designed for cost- and power-sensitive embedded systems. As a member of the Cyclone V family, it benefits from the series architecture that combines programmable logic with enhanced hard IP to address industrial, wireless/wireline and military markets.

This device delivers 77,000 logic elements, approximately 5.0 Mbits of embedded memory and 129 general-purpose I/Os in a surface-mount 301-MBGA (11×11) footprint. It is specified for industrial operation and supports a core supply voltage window of 1.07 V to 1.13 V with an operating temperature range from −40 °C to 100 °C.

Key Features

• Core Logic  77,000 logic elements (ALM-based) for mid-density FPGA designs requiring configurable logic and datapath flexibility.
• Embedded Memory  Approximately 5.0 Mbits of on-chip RAM to support buffering, state storage, and local data processing.
• I/O Capacity & Interfaces  129 general-purpose I/Os suitable for diverse peripheral connectivity and system interfacing.
• Family-Level Integration  Part of the Cyclone V family, which includes integrated transceivers, hard memory controllers and optional hard processor system (HPS) features such as an Arm Cortex-A9 MPCore in some variants.
• Power  Core operating supply specified from 1.07 V to 1.13 V, consistent with the Cyclone V 1.1 V core class for low-power operation.

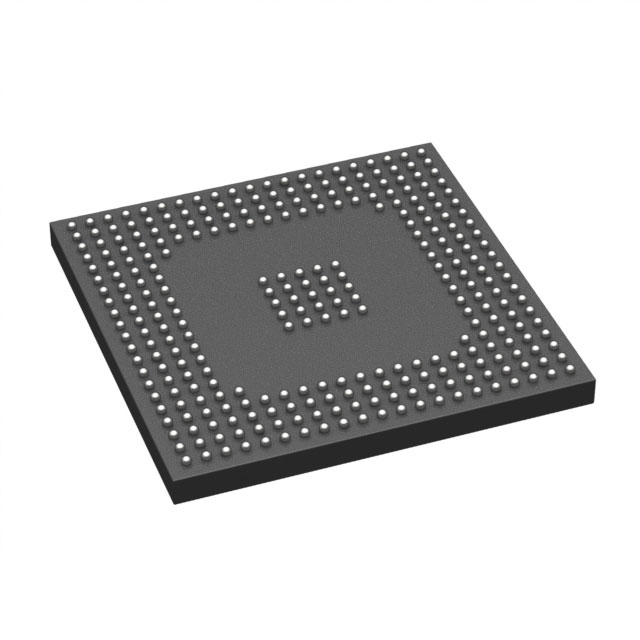

• Package & Mounting  301-TFBGA package (supplier package: 301-MBGA 11×11) designed for surface-mount assembly in compact board layouts.
• Temperature & Grade  Industrial grade device rated for −40 °C to 100 °C operating temperature to meet demanding environmental conditions.
• Process & Architecture (Cyclone V family)  Built on a 28-nm low-power class process with enhanced ALMs, variable-precision DSP blocks, and M10K embedded memory blocks (family characteristics).

Typical Applications

• Industrial Automation  Deterministic logic and I/O capacity make this device suitable for motion control, PLC functions and factory-automation interfaces operating across industrial temperature ranges.
• Wireless & Wireline Infrastructure  Cyclone V family integration (transceivers and memory controllers) supports baseband processing, fronthaul/transport logic and protocol handling in communications equipment.
• Defense & Military Electronics  Industrial-grade temperature range and configurable logic allow implementation of custom signal processing, I/O aggregation and system control in rugged platforms.
• Embedded SoC and Control  Use in embedded processing subsystems where programmable logic is paired with hard IP (family-level HPS options) to offload tasks and accelerate deterministic control functions.

Unique Advantages

• Mid-Density Logic with Flexibility:  77,000 logic elements provide a balance between capacity and cost for a wide range of embedded designs.
• On-Chip Memory for Local Data:  Approximately 5.0 Mbits of embedded RAM supports buffering and stateful logic without external memory in many use cases.
• Generous I/O Count:  129 I/Os accommodate multiple peripherals, sensors and external interfaces, simplifying board-level routing and I/O management.
• Industrial Temperature Rating:  Qualified for −40 °C to 100 °C operation to meet environmental demands in factory and fielded equipment.
• Compact, Surface-Mount Package:  301-TFBGA (301-MBGA 11×11) enables high-density board layouts while retaining accessibility to the Cyclone V feature set.
• Series-Level Integration:  Leverages Cyclone V family attributes such as low-power 28-nm process, enhanced ALMs, DSP resources and integrated IP blocks for system-level optimization.

Why Choose 5CGXFC5F6M11I7N?

This Cyclone V GX device targets designers who need a cost- and power-conscious FPGA with substantial logic, embedded memory and I/O resources in an industrial-grade package. Its combination of 77,000 logic elements, approximately 5.0 Mbits of embedded memory, and 129 I/Os provides a practical platform for mid-range embedded and communications designs.

Being part of the Cyclone V family means access to the family’s documented architecture and development resources, allowing scalable migration within the series and enabling integration of hard IP where applicable. The result is a compact, reliable building block for systems that require programmable logic with real-world temperature and power characteristics.

Request a quote or submit an inquiry to receive pricing and availability information for the 5CGXFC5F6M11I7N Cyclone V GX FPGA.
