5CGXFC7B6M15C7N

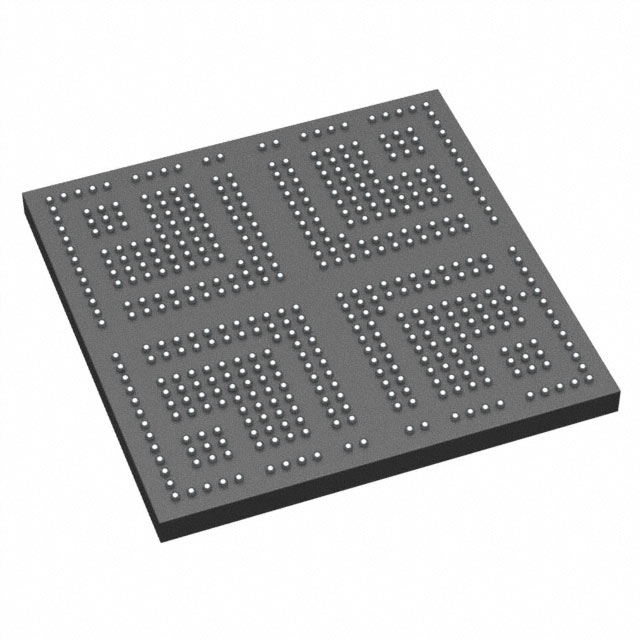

IC FPGA 240 I/O 484MBGA
Part Description

Cyclone® V GX Field Programmable Gate Array (FPGA) IC 240 7880704 149500 484-LFBGA

Quantity 426 Available (as of October 8, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerIntel
Manufacturing StatusActive
Manufacturer Standard Lead Time16 Weeks
Datasheet

Specifications & Environmental

Device Package484-MBGA (15x15)GradeCommercialOperating Temperature0°C – 85°C
Package / Case484-LFBGANumber of I/O240Voltage1.07 V - 1.13 V
Mounting MethodSurface MountRoHS ComplianceRoHS CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs56480Number of Logic Elements/Cells149500
Number of GatesN/AECCN3A001A2CHTS Code8542.39.0001
QualificationN/ATotal RAM Bits7880704

Overview of 5CGXFC7B6M15C7N – Cyclone® V GX FPGA, 484-LFBGA, 240 I/O

The 5CGXFC7B6M15C7N is an Intel Cyclone® V GX field-programmable gate array supplied in a 484-LFBGA (484-MBGA, 15×15) surface-mount package. It delivers high logic capacity and embedded memory suitable for cost-sensitive, bandwidth-focused designs across industrial, communications, and military markets.

Built on TSMC's 28‑nm low‑power (28LP) process and enhanced with integrated transceivers and hard memory controllers (as described for the Cyclone V family), this device targets applications that require substantial programmable logic, on‑chip RAM, and flexible I/O while operating at a core supply range of 1.07 V to 1.13 V.

Key Features

  • Core Logic  Approximately 149,500 logic elements providing substantial programmable logic capacity for complex digital designs.
  • Embedded Memory  Approximately 7.88 Mbits of on‑chip RAM to support buffering, packet processing, and data‑intensive functions.
  • I/O and Packaging  240 user I/O pins in a 484‑LFBGA (484‑MBGA, 15×15) surface‑mount package for dense board integration and connector flexibility.
  • Process and Hard IP  Based on TSMC 28‑nm low‑power (28LP) technology with Cyclone V family features such as integrated transceivers and hard memory controllers.
  • Voltage and Power  Core supply operating range 1.07 V to 1.13 V, aligned with the Cyclone V family’s 1.1 V core nominal specification.
  • Operating Conditions  Commercial grade operation from 0 °C to 85 °C and RoHS‑compliant construction.

Typical Applications

  • Industrial Control: Used for motor control, PLC logic, and machine‑level signal aggregation where programmable logic and on‑chip memory reduce external BOM.
  • Wireless & Wireline Communications: Supports protocol processing, packet buffering, and I/O interfacing with integrated transceivers and hard memory controllers described for the Cyclone V family.
  • Defense and Aerospace Systems: Employed in mission systems requiring large programmable logic arrays and on‑chip RAM for data handling and custom signal processing.

Unique Advantages

  • High Logic Density: Approximately 149,500 logic elements enable complex custom logic and state machines without resorting to multiple devices.
  • Substantial On‑Chip RAM: About 7.88 Mbits of embedded memory reduces reliance on external memory for buffers and FIFOs.
  • Integrated System Features: Cyclone V family characteristics such as integrated transceivers and hard memory controllers simplify high‑bandwidth interface designs.
  • Compact, Surface‑Mount Package: 484‑LFBGA (15×15) package provides high I/O count in a compact footprint for dense PCB layouts.
  • Commercial Temperature Range: Rated 0 °C to 85 °C for typical commercial applications and environments.
  • Regulatory Compliance: RoHS‑compliant construction supports environmentally conscious product development and manufacturing.

Why Choose 5CGXFC7B6M15C7N?

The 5CGXFC7B6M15C7N pairs a large logic fabric with significant on‑chip RAM and a high I/O count in a compact 484‑LFBGA package, making it a practical choice for designers who need to consolidate complex digital functions into a single FPGA. Its 28‑nm low‑power foundation and Cyclone V feature set (including integrated transceivers and hard memory controllers) provide a balance of integration and efficiency for communications, industrial, and defense applications where programmable flexibility and on‑chip resources matter.

This device is suitable for development teams and procurement organizations seeking a commercially rated FPGA with clear electrical and thermal operating limits (1.07 V to 1.13 V core range, 0 °C to 85 °C) and RoHS compliance for long‑term product deployment.

If you would like pricing or availability information for 5CGXFC7B6M15C7N, please request a quote or submit an inquiry with your quantity and delivery requirements.
