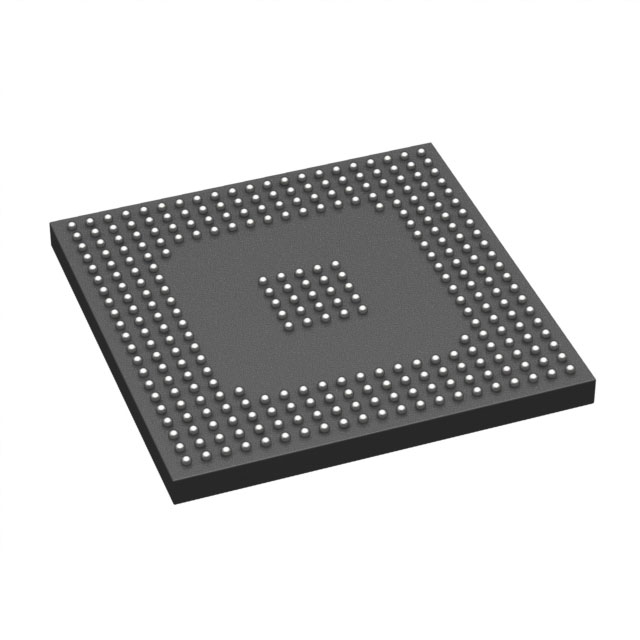

The 5CGXFC5F6M11C7N is an Intel Cyclone® V GX family FPGA in a 301-TFBGA package. It provides a mid-range programmable fabric with integrated transceivers and hard memory-controller capability—targeted at high-volume, cost-sensitive designs that require a balance of logic capacity, embedded memory, and efficient power operation.

With 77,000 logic elements, approximately 5.0 Mbits of embedded memory and 129 I/O pins, this commercial-grade device is suited for applications that demand programmable logic integration, moderate on-chip memory, and a compact surface-mount package.

Key Features

• Logic Capacity — 77,000 logic elements suitable for mid-density FPGA designs and feature integration.
• Embedded Memory — Approximately 5.0 Mbits of on-chip RAM (5,001,216 bits) for buffering, state storage, and small memory structures.
• I/O — 129 general-purpose I/O pins to interface with peripherals, memory, and external logic.
• Integrated IP — Series-level Cyclone V features include integrated transceivers and hard memory controllers to simplify high-bandwidth interfaces and memory connectivity.
• Power and Process — Built on a low-power process with a documented supply range of 1.07 V to 1.13 V (nominal 1.1 V core), enabling efficient core operation.
• Package and Mounting — Surface-mount 301-TFBGA package (supplier package 301-MBGA, 11×11) for compact board layouts.
• Operating Range — Commercial operating temperature range of 0 °C to 85 °C for mainstream environments.
• Environmental Compliance — RoHS compliant.

Typical Applications

• Wireless and Wireline Communications — Implement protocol processing, PHY interface logic and mid-bandwidth datapath functions using the device's logic resources and integrated transceiver capabilities.
• Embedded and SoC Acceleration — Offload deterministic data-paths and custom peripherals from processors by leveraging the FPGA fabric and on-chip memory for buffering and control.
• Consumer and High-Volume Electronics — Integrate multiple control and interface functions into a single programmable device to reduce BOM and streamline board designs for cost-sensitive products.

Unique Advantages

• Balanced Logic and Memory — 77,000 logic elements paired with approximately 5.0 Mbits of embedded RAM provide a practical mix for mid-density designs without external memory for many use cases.
• Compact, Surface-Mount Package — The 301-TFBGA (301-MBGA 11×11) package enables dense PCB implementations while supporting the device’s 129 I/O pins.
• Efficient Core Voltage — Narrow supply window (1.07 V to 1.13 V) centered around the 1.1 V core supports stable, low-voltage operation consistent with Cyclone V low-power process characteristics.
• Series-Level Interface Capabilities — Cyclone V GX family features such as integrated transceivers and hard memory controllers reduce external IP needs and simplify high-speed interface designs.
• Commercial Availability — Commercial-grade temperature range and RoHS compliance align the device with mainstream product lifecycles and regulatory requirements.

Why Choose 5CGXFC5F6M11C7N?

The 5CGXFC5F6M11C7N delivers a practical combination of logic density, embedded memory, and I/O in a compact 301-TFBGA surface-mount package. It is positioned for designers who need mid-range FPGA capacity with series-level Cyclone V features—such as integrated transceivers and hard memory controllers—while maintaining efficient core power characteristics.

This device is well suited for teams developing high-volume, cost-sensitive systems that require programmable flexibility, moderate on-chip memory, and savings in board-level complexity. Its RoHS compliance and commercial operating range make it appropriate for mainstream electronic products and embedded applications.

Request a quote or submit an inquiry for pricing and availability of the Intel 5CGXFC5F6M11C7N FPGA.
