5CGXFC5F6M11C6N

IC FPGA 129 I/O 301MBGA
Part Description

Cyclone® V GX Field Programmable Gate Array (FPGA) IC 129 5001216 77000 301-TFBGA

Quantity 321 Available (as of October 8, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerIntel
Manufacturing StatusActive
Manufacturer Standard Lead Time16 Weeks
Datasheet

Specifications & Environmental

Device Package301-MBGA (11x11)GradeCommercialOperating Temperature0°C – 85°C
Package / Case301-TFBGANumber of I/O129Voltage1.07 V - 1.13 V
Mounting MethodSurface MountRoHS ComplianceRoHS CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs29080Number of Logic Elements/Cells77000
Number of GatesN/AECCN3A001A2CHTS Code8542.39.0001
QualificationN/ATotal RAM Bits5001216

Overview of 5CGXFC5F6M11C6N – Cyclone® V GX Field Programmable Gate Array (301-TFBGA)

The 5CGXFC5F6M11C6N is a Cyclone® V GX FPGA device offering a mid-range FPGA fabric with integrated high-speed features for cost-sensitive, high-volume designs. Built on the Cyclone V family architecture, it pairs a low-voltage 1.07–1.13 V core with a fabric optimized for logic integration, embedded memory and DSP acceleration.

This device is suited to applications in industrial, wireless and wireline, and military markets that require a balance of performance, integration and power efficiency—leveraging embedded memory, variable-precision DSP blocks and integrated transceivers and memory controller capabilities described for the Cyclone V family.

Key Features

  • Logic Capacity — Approximately 77,000 logic elements to implement control, glue-logic and mid-density datapath functions.
  • Embedded Memory — Approximately 5.0 Mbits of on-chip RAM (5,001,216 total RAM bits) with Cyclone V series memory block features such as M10K blocks and support for ECC as described in the device family documentation.
  • Adaptive Logic Module (ALM) — Enhanced 8-input ALM architecture for efficient logic packing and register utilization, as specified for Cyclone V devices.
  • Variable-Precision DSP Blocks — DSP resources for accelerated signal and algorithm processing, as documented for the Cyclone V series.
  • I/O — 129 user I/O pins to interface with peripherals and external devices.
  • High-Speed Transceivers & Memory IP — Cyclone V GX family includes integrated transceivers and hard memory controllers to support higher bandwidth links and external memory interfaces.
  • Power — Core voltage operating range of 1.07 V to 1.13 V, with the Cyclone V family characterized for low-power operation on TSMC 28-nm low-power (28LP) process technology.

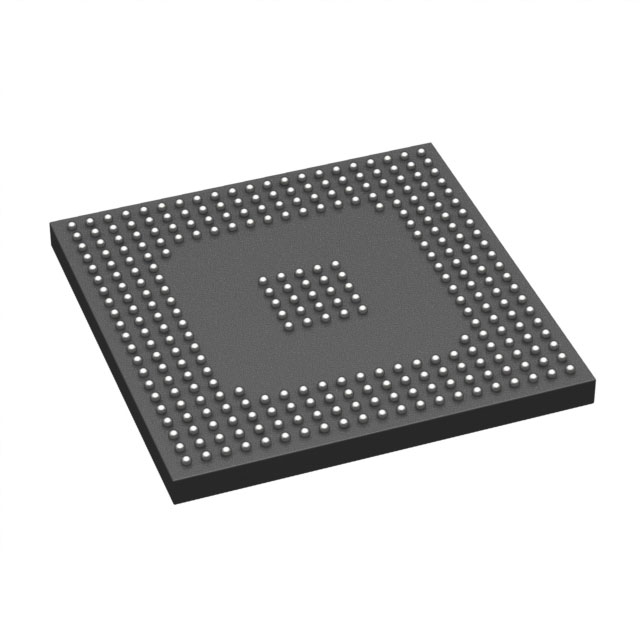

  • Package & Mounting — 301-TFBGA package case; supplier device package listed as 301-MBGA (11×11). Surface-mount mounting type.
  • Operating Range & Grade — Commercial grade with operating temperature 0 °C to 85 °C.
  • Environmental — RoHS-compliant.

Typical Applications

  • Communications & Networking — Use integrated transceivers and hard memory controller features to implement mid-range packet processing, protocol bridging and link aggregation functions.
  • Signal Processing & Acceleration — Leverage variable-precision DSP blocks and embedded RAM for algorithm acceleration, filtering and real-time data manipulation.
  • Embedded SoC & Control — Combine FPGA fabric with Cyclone V family system integrations for control logic, interface bridging and embedded processing tasks.
  • Industrial Systems — Deploy logic, I/O and embedded memory to implement sensor aggregation, deterministic control logic and communications interfaces within the commercial temperature range.

Unique Advantages

  • Balanced Logic Density: Approximately 77,000 logic elements provide a solid mid-range resource set for complex glue logic and moderate datapaths without overprovisioning.
  • On-chip Memory Capacity: Roughly 5.0 Mbits of embedded RAM supports buffering, FIFOs and algorithm state storage, reducing dependence on external memory for many use cases.
  • Integrated High-Speed Features: Cyclone V GX family-level transceivers and hard memory controllers enable higher-bandwidth interfaces and simplify board-level design for communications applications.
  • Low-Voltage Core: Narrow core supply range (1.07–1.13 V) aligns with the Cyclone V family’s low-power 28 nm process characteristics, aiding predictable power budgeting.
  • Commercial Packaging & Mounting: Available in a compact 301-TFBGA / 301-MBGA (11×11) surface-mount package suitable for dense PCB layouts.
  • RoHS Compliance: Environmentally compliant manufacturing aligns with standard commercial product requirements.

Why Choose 5CGXFC5F6M11C6N?

The 5CGXFC5F6M11C6N delivers a balanced, mid-range Cyclone V GX FPGA platform tailored to designers who need substantive logic resources, on-chip memory and DSP capabilities alongside integrated high-speed interfaces. Its combination of approximately 77,000 logic elements, ~5.0 Mbits of embedded RAM and family-level transceiver and memory-IP features make it appropriate for communications, signal processing and embedded control systems operating within a commercial temperature envelope.

Designed for cost-sensitive, high-volume applications, this Cyclone V GX device provides predictable power characteristics with a defined core-voltage window and a compact surface-mount package, offering a practical path for scalable designs that leverage the Cyclone V family feature set.

Request a quote or submit an inquiry for pricing and availability for the 5CGXFC5F6M11C6N. Include your quantity and lead-time requirements to receive a prompt response.
