5CGXFC5F7M11C8N

The 5CGXFC5F7M11C8N is an Intel Cyclone V GX field-programmable gate array (FPGA) in a 301-TFBGA package designed for cost- and power-sensitive electronic systems. As a Cyclone V GX device, it combines FPGA fabric with features from the Cyclone V family, including an enhanced adaptive logic module architecture and integrated transceiver capability.

This device targets applications that need substantial programmable logic and embedded memory with efficient power characteristics, offering 77,000 logic elements, approximately 5.0 Mbits of embedded memory, and 129 general-purpose I/O in a commercial-grade, surface-mount BGA package.

Key Features

• Logic Capacity — 77,000 logic elements to implement complex digital functions and custom logic.
• Embedded Memory — Approximately 5.0 Mbits of on-chip RAM for buffers, FIFOs, and data storage.
• I/O Count — 129 general-purpose I/O pins to interface with peripherals, sensors, and external devices.
• Integrated Transceiver Capability — Cyclone V GX family characteristics include support for high-speed transceivers (documented family transceiver rates include 3.125 Gbps and 6.144 Gbps).
• Power and Core Voltage — Device-level supply range specified at 1.07 V to 1.13 V; the Cyclone V family uses a ~1.1 V core voltage.

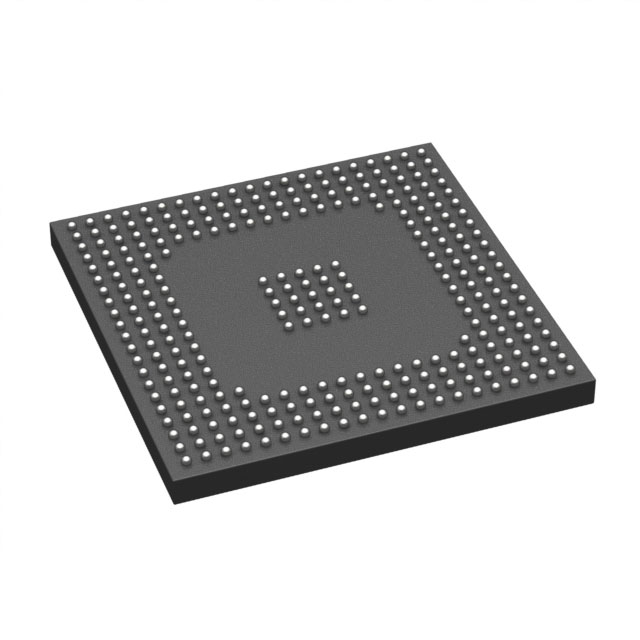

• Packaging and Mounting — 301-TFBGA (supplier package: 301-MBGA, 11 mm × 11 mm) in a surface-mount footprint for compact board designs.
• Commercial Grade and Environmental — Commercial temperature grade (0 °C to 85 °C) and RoHS-compliant.
• Family Architecture Highlights — Based on Cyclone V device architecture featuring enhanced 8-input adaptive logic modules (ALMs) and TSMC 28-nm low-power process technology (family-level information).

Typical Applications

• Wireless Infrastructure — Implement protocol logic, packet processing, and FPGA-accelerated datapath functions where integrated transceivers and programmable logic are required.
• Wireline Communications — Use for line interfaces, framing, and custom logic in high-bandwidth communication systems leveraging the family’s transceiver capabilities.
• Industrial Systems — Deploy for control logic, sensor interfacing, and custom communication bridging within the commercial temperature range.
• Defense and Aerospace Systems — Suitable for custom signal processing and interface logic in applications that leverage programmable hardware (observe system-level qualification requirements).

Unique Advantages

• Substantial Programmable Logic: 77,000 logic elements enable large custom designs and complex state machines without external ASIC development.
• On-chip Memory for Data Handling: Approximately 5.0 Mbits of embedded RAM reduces dependence on external memory for intermediate buffering and low-latency storage.
• Integrated High-speed I/O: 129 I/O pins provide broad interfacing capability for peripherals, sensors, and external subsystems.
• Compact, Surface-mount Package: 301-TFBGA (11 mm × 11 mm supplier package) allows dense board layouts while maintaining thermal and electrical performance for commercial applications.
• Controlled Power Envelope: Narrow voltage supply window (1.07–1.13 V) aligns with the Cyclone V family core voltage characteristics for predictable power design.
• Regulatory and Environmental Compliance: RoHS compliance supports designs aimed at environmentally conscious manufacturing and procurement.

Why Choose 5CGXFC5F7M11C8N?

The 5CGXFC5F7M11C8N delivers a balanced combination of programmable logic density, embedded memory, and I/O count in a compact surface-mount package. It is well suited for commercial-grade designs that require significant on-chip resources and the Cyclone V family’s architectural advantages, including enhanced ALMs and high-speed transceiver capability at the device-family level.

This part is targeted at engineers and product teams building communication, industrial, and defense-related systems who need a scalable FPGA fabric with integrated memory and robust I/O in a BGA footprint, while maintaining predictable power and thermal parameters in the 0 °C to 85 °C range.

Request a quote or submit an inquiry to obtain pricing and availability for the 5CGXFC5F7M11C8N and to discuss lead times and volume options.
