5CGXFC7B7M15C8N

IC FPGA 240 I/O 484MBGA
Part Description

Cyclone® V GX Field Programmable Gate Array (FPGA) IC 240 7880704 149500 484-LFBGA

Quantity 192 Available (as of October 7, 2026)
Product CategoryField Programmable Gate Array (FPGA)
ManufacturerIntel
Manufacturing StatusActive
Manufacturer Standard Lead Time16 Weeks
Datasheet

Specifications & Environmental

Device Package484-MBGA (15x15)GradeCommercialOperating Temperature0°C – 85°C
Package / Case484-LFBGANumber of I/O240Voltage1.07 V - 1.13 V
Mounting MethodSurface MountRoHS ComplianceRoHS CompliantREACH ComplianceREACH Unaffected
Moisture Sensitivity Level3 (168 Hours)Number of LABs/CLBs56480Number of Logic Elements/Cells149500
Number of GatesN/AECCN3A001A2CHTS Code8542.39.0001
QualificationN/ATotal RAM Bits7880704

Overview of 5CGXFC7B7M15C8N – Cyclone® V GX FPGA IC, 484-LFBGA

The 5CGXFC7B7M15C8N is an Intel Cyclone V GX field-programmable gate array (FPGA) in a 484-LFBGA package. Built on the Cyclone V family architecture, this device delivers a combination of high logic density, embedded memory, and programmable I/O for cost-sensitive, high-volume designs.

This device is suited for applications that require large programmable logic capacity, significant on-chip RAM, and flexible I/O routing while operating within a commercial temperature range and a 1.07–1.13 V core supply window.

Key Features

  • Logic Density  Approximately 149,500 logic elements for implementing complex digital logic and state machines.
  • Embedded Memory  Approximately 7.88 Mbits of on-chip RAM to store buffers, FIFOs, and working data without external memory in many designs.
  • I/O Capacity  240 general-purpose I/O pins to handle multiple interfaces, buses, and peripheral connections.
  • Family-Level Integration  Cyclone V GX family devices include integrated high-speed transceivers and hard memory controllers (family-level features described in the Cyclone V device overview).
  • Process and Core Voltage  Device is based on the Cyclone V platform with a documented 1.1 V nominal core; this part’s specified supply range is 1.07 V to 1.13 V.

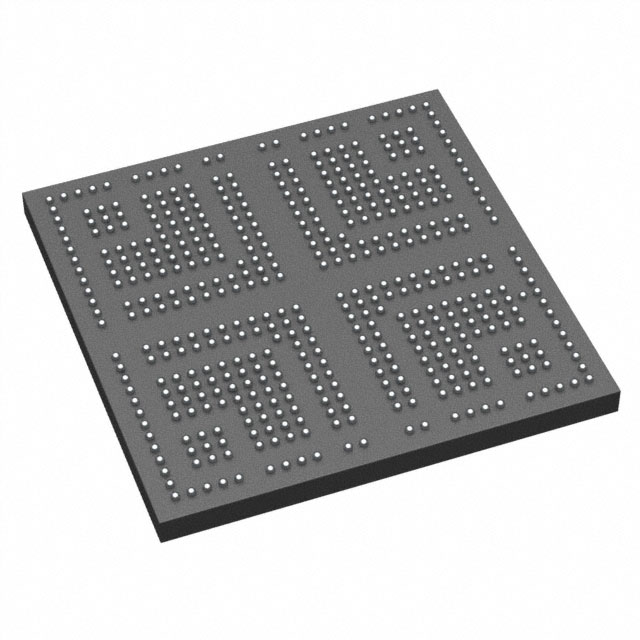

  • Package and Mounting  484-LFBGA package (supplier device package: 484-MBGA, 15×15 mm) designed for surface-mount assembly.
  • Commercial Grade and Environmental  Commercial-grade device rated for 0 °C to 85 °C operation and RoHS compliant.

Typical Applications

  • Industrial Control  Programmable logic for motor control, sensor aggregation, and real-time I/O processing where high logic density and on-chip memory accelerate development.
  • Wireless Infrastructure  Baseband and protocol-processing blocks that benefit from integrated transceivers and abundant logic resources in the Cyclone V GX family.
  • Wireline Communications  Packet processing, protocol bridging, and interface adaptation using the device’s large logic array and flexible I/O count.
  • High-Performance Embedded Systems  Custom accelerators, buffering, and glue logic that leverage substantial on-chip RAM and a wide complement of I/Os.

Unique Advantages

  • High Logic Capacity: With roughly 149,500 logic elements, this part supports complex designs and integration of multiple functions into a single chip.
  • Significant On-Chip Memory: Approximately 7.88 Mbits of embedded RAM reduce dependence on external memory for many buffering and data-path tasks.
  • Flexible I/O Count: 240 I/Os provide broad connectivity for interfaces, sensors, and peripheral expansion without additional bridge logic.
  • Compact Surface-Mount Package: The 484-LFBGA (484-MBGA, 15×15 mm) package enables high-density board layouts and reliable surface-mount assembly.
  • Controlled Core Supply: Narrow supply range (1.07–1.13 V) aligns with the Cyclone V platform’s 1.1 V core requirements for predictable power delivery and integration.
  • RoHS-Compliant Commercial Offering: Commercial-grade device with RoHS compliance for mainstream electronic products operating within 0 °C to 85 °C.

Why Choose 5CGXFC7B7M15C8N?

The 5CGXFC7B7M15C8N brings Cyclone V GX family characteristics—high logic density, substantial on-chip RAM, and versatile I/O—in a compact 484-LFBGA surface-mount package. Its specified core voltage window and commercial temperature rating make it suitable for a wide range of cost-sensitive designs that require substantial programmable resources without adding external logic or memory wherever possible.

This part is targeted at engineers who need a balance of integration and capacity: implement large, performance-oriented functions, consolidate multiple discrete components, and accelerate time to market while staying within commercial operating conditions.

Request a quote or submit a procurement inquiry to receive pricing, availability, and ordering information for 5CGXFC7B7M15C8N.
