5SGXEB9R1H43I2G

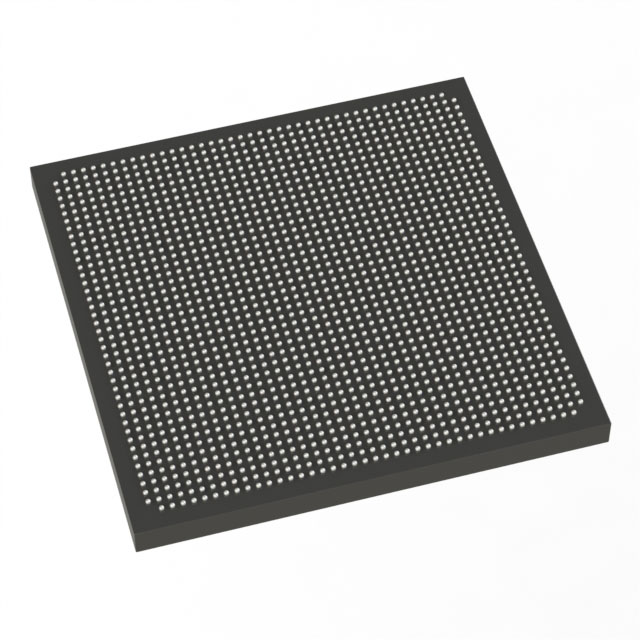

The 5SGXEB9R1H43I2G is an Intel Stratix® V GX field programmable gate array (FPGA) offered in a high-density, industrial-grade configuration. It provides 840,000 logic elements and approximately 53 Mbits of embedded memory in a compact 1760-BBGA (45×45) surface-mount package.

With 600 user I/O pins and an operating range designed for industrial environments, this device targets designs that require significant logic capacity, substantial on-chip RAM, and robust thermal tolerance.

Key Features

• Core & logic capacity  840,000 logic elements to implement large-scale digital logic and custom accelerators.
• Embedded memory  Approximately 53 Mbits of on-chip RAM for data buffering, state storage, and high-throughput processing.
• I/O density  600 user I/O pins to support complex parallel interfaces and multiple peripheral connections.
• Package & mounting  1760-BBGA, FCBGA (45×45) surface-mount package for high-density board integration.
• Voltage supply  Core supply range from 870 mV to 930 mV for the device core rail.
• Temperature & grade  Industrial grade device with an operating temperature range of −40 °C to 100 °C.
• Environmental compliance  RoHS compliant.

Unique Advantages

• High integration density: 840,000 logic elements allow consolidation of large designs onto a single device, reducing board count.
• Significant on-chip memory: Approximately 53 Mbits of embedded RAM minimizes dependence on external memory for many buffering and data-path tasks.
• Broad I/O capability: 600 I/O pins provide flexibility for diverse interface requirements and parallel data channels.
• Industrial-ready thermal range: Rated for −40 °C to 100 °C to support deployment in demanding temperature environments.
• Compact, high-density package: 1760-BBGA (45×45) surface-mount package supports high-pin-count designs in space-constrained layouts.
• Regulatory alignment: RoHS compliance supports environmental and regulatory requirements.

Why Choose 5SGXEB9R1H43I2G?

The 5SGXEB9R1H43I2G combines high logic capacity, substantial embedded memory, and extensive I/O in an industrial-grade Stratix V GX FPGA form factor. Its specification set makes it suitable for designs that require large programmable logic fabrics, significant on-chip RAM, and robust operating temperature margins.

Engineers selecting this device benefit from a high-density FPGA platform packaged for surface-mount integration and backed by Intel Stratix V family documentation and datasheet support for design and validation needs.

Request a quote or submit an inquiry to receive pricing and availability information for 5SGXEB9R1H43I2G.
