5SGXEBBR1H43I2N

The 5SGXEBBR1H43I2N is a Stratix V GX family Field Programmable Gate Array (FPGA) IC from Intel, offered in an industrial temperature grade. It provides substantial programmable logic capacity together with large embedded memory and a high count of I/O to support dense digital designs.

This device targets applications that require high-density logic, on‑chip memory, and extensive I/O, delivered in a surface‑mount FCBGA/HBGA package with industrial operating temperature and RoHS compliance.

Key Features

• Programmable Logic — 952,000 logic elements for implementing large-scale digital designs and complex logic functions.
• Embedded Memory — Approximately 53.25 Mbits of embedded memory (53,248,000 bits) to support buffering, FIFOs, and on-chip data storage.
• I/O Capacity — 600 I/Os to connect to a wide range of external devices, buses, and interfaces.

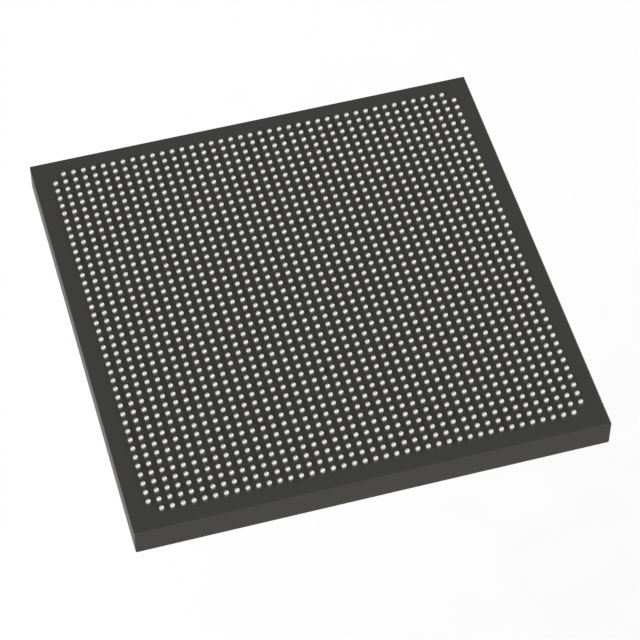

• Package & Mounting — 1760-BBGA (FCBGA) package case; supplier device package listed as 1760-HBGA (45×45). Surface mount construction for PCB assembly.
• Power — Core voltage supply range of 870 mV to 930 mV for core power planning and board-level power budgeting.
• Temperature & Grade — Industrial grade with an operating temperature range of −40 °C to 100 °C for use in demanding environments.
• Standards & Compliance — RoHS compliant.
• Family-Level Technical Coverage — Part of the Stratix V GX family described in the device datasheet, which documents electrical, switching, I/O timing, and transceiver-related characteristics for this device family.

Typical Applications

• High‑density digital processing — Large logic capacity and significant embedded memory enable complex datapath and compute implementations.
• High‑speed serial and I/O systems — Large I/O count supports designs that require extensive external connectivity and serialized interfaces.
• Industrial systems — Industrial-grade temperature range (−40 °C to 100 °C) makes the device suitable for control and automation equipment operating in harsh environments.

Unique Advantages

• Large programmable capacity: 952,000 logic elements provide the headroom for complex, multi‑lane logic designs without immediate migration.
• Substantial on‑chip memory: Approximately 53.25 Mbits of embedded RAM reduces dependency on external memory for buffering and packet storage.
• High I/O density: 600 I/Os simplify system integration by reducing external interface multiplexing and glue logic.
• Industrial reliability: Rated from −40 °C to 100 °C, the device supports extended‑temperature deployments common in industrial applications.
• Package options for surface mount assemblies: 1760‑BBGA (FCBGA) / 1760‑HBGA (45×45) packaging supports compact board layouts and automated assembly.
• Controlled core voltage range: 870 mV to 930 mV core supply range aids predictable power design and system validation.

Why Choose 5SGXEBBR1H43I2N?

The 5SGXEBBR1H43I2N delivers a combination of high logic capacity, considerable embedded memory, and a broad I/O complement in an industrial-grade Stratix V GX FPGA package. Its electrical and switching characteristics are documented as part of the Stratix V family, enabling engineering teams to plan power, timing, and thermal solutions with reference to the device datasheet.

This device is well suited to engineers and system designers building dense, high‑I/O digital systems that require robust on‑chip resources and industrial temperature performance. The package and supply characteristics support compact board integration and controlled power sequencing during development and production.

If you would like pricing, availability, or a formal quotation for 5SGXEBBR1H43I2N, please submit a request for a quote and our team will respond with next‑step details.
