APA1000-CQ208M

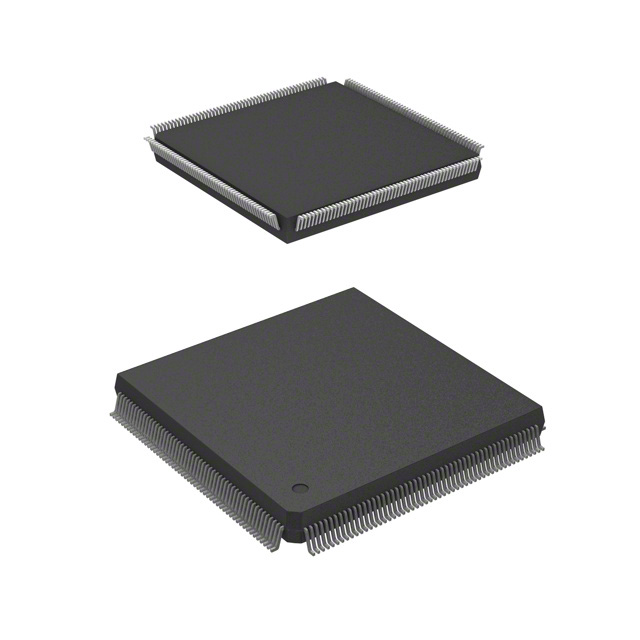

The APA1000-CQ208M is a ProASICPLUS field programmable gate array (FPGA) from Microchip Technology, provided in a 208-BFCQFP package with tie bar. It delivers 56,320 logic elements, approximately 0.20 Mbits of embedded memory, and 158 user I/O, making it suitable for applications that require reprogrammable logic with military-grade qualification.

Qualified to MIL-STD-883 and rated for operation from -55 °C to 125 °C, this FPGA targets designs that demand robust temperature performance and qualification for demanding environments. The device is surface-mount and RoHS compliant, with a 2.3 V to 2.7 V supply range.

Key Features

• Core Logic 56,320 logic elements (cells) and 1,000,000 gates provide substantial programmable logic density for implementing custom digital functions.
• Embedded Memory Approximately 0.20 Mbits (202,752 bits) of on-chip RAM for local data buffering, state storage, and real-time processing support.
• I/O Capacity 158 user I/O pins to support peripheral interfaces, signal aggregation, and board-level integration.
• Package and Mounting 208-BFCQFP package with tie bar; supplier device package listed as 208-CQFP (75×75). Designed for surface-mount assembly.
• Power Operates from a 2.3 V to 2.7 V supply range to match system power rails and design constraints.
• Temperature and Qualification Military grade with MIL-STD-883 qualification and an operating temperature range of -55 °C to 125 °C for deployment in demanding environments.
• Compliance RoHS compliant for environmental and regulatory consistency in manufacturing.

Typical Applications

• Military and Aerospace Systems — Use the MIL-STD-883 qualification and extended -55 °C to 125 °C temperature range for rugged avionics, defense electronics, and mission-critical subsystems.
• System Integration and Custom Logic — Implement custom state machines, glue logic, and protocol bridging using 56,320 logic elements and embedded RAM for compact, reprogrammable designs.
• I/O-Intensive Designs — Leverage 158 I/O pins to consolidate board-level interfaces, manage sensor arrays, or interface with multiple peripherals.

Unique Advantages

• Military-Grade Qualification: MIL-STD-883 qualification and a wide operating temperature range support deployment in harsh and temperature-extreme environments.
• High Logic Density: 56,320 logic elements and 1,000,000 gates enable complex digital functions while keeping board count and system complexity down.
• Embedded Memory On-Chip: Approximately 0.20 Mbits of RAM provides local storage for buffering and state management, reducing dependence on external memory.
• Ample I/O Count: 158 user I/O allow flexible connectivity for diverse peripheral and subsystem requirements.
• Compact Surface-Mount Package: 208-CQFP (75×75) package with tie bar supports standard surface-mount assembly processes for production readiness.
• Regulatory Compliance: RoHS compliance simplifies integration into regulated manufacturing flows.

Why Choose APA1000-CQ208M?

The APA1000-CQ208M combines substantial programmable logic capacity, on-chip memory, and a high I/O count in a military-qualified package, offering designers a reliable platform for rugged and demanding applications. Its qualification to MIL-STD-883 and wide operating temperature range make it a strong choice where environmental robustness and long-term reliability are required.

This FPGA is well suited to engineering teams building mission-critical systems, platform integrators consolidating functions into programmable devices, and programs that require a qualified, reprogrammable solution backed by established silicon technology.

Request a quote or submit a procurement inquiry to receive pricing and availability for APA1000-CQ208M. Our team will respond with a tailored quote and lead-time information for your project needs.
