APA1000-FG896

The APA1000-FG896 is a ProASICPLUS FPGA from Microchip Technology designed for commercial embedded logic applications. It integrates 56,320 logic elements and approximately 0.203 Mbits of on-chip RAM to provide a configurable hardware platform for custom digital functions.

This surface-mount 896-FBGA (31×31) device offers 642 I/O pins, support for a 2.3 V to 2.7 V supply, and a commercial operating range of 0 °C to 70 °C, making it suitable for a wide range of standard electronic designs that require programmable logic density and moderate on-chip memory.

Key Features

• Logic Capacity 56,320 logic elements (LEs) provide substantial programmable logic resources, supporting complex custom logic and glue-logic functions.
• On‑Chip Memory Approximately 0.203 Mbits of embedded RAM (202,752 total RAM bits) for data buffering, state storage, and small look-up tables.
• I/O Density 642 general-purpose I/O pins to support extensive interfacing with external peripherals, sensors, and high-pin-count connectors.
• Gate Count 1,000,000 gates of logic capacity for integrating substantial digital functionality on a single device.
• Power Operates from a 2.3 V to 2.7 V supply range, enabling compatibility with a variety of system voltage architectures within that window.

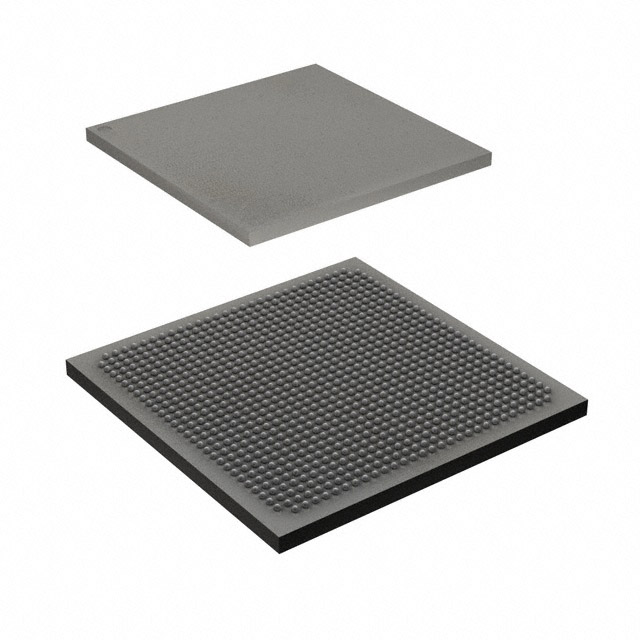

• Package & Mounting 896-FBGA (31×31) surface-mount package provides a compact, high-pin-count footprint for board-level integration.
• Temperature & Grade Commercial grade device rated for 0 °C to 70 °C operation, suitable for standard commercial products and environments.
• Environmental Compliance RoHS compliant to support regulatory requirements for lead-free manufacturing processes.

Typical Applications

• Configurable Logic and Glue-Logic Implement custom combinational and sequential logic to consolidate discrete components and simplify PCB design.
• Interface Bridging Provide signal translation and protocol bridging with high I/O count for multi-interface systems.
• Prototyping and Development Use the FPGA’s programmable resources and on-chip memory for iterative hardware development and proof-of-concept designs.

Unique Advantages

• Substantial Logic Density: 56,320 logic elements and 1,000,000 gates allow consolidation of multiple functions into a single device, reducing bill-of-materials and board complexity.
• High I/O Count: 642 I/O pins enable broad external connectivity without external multiplexers or expanders.
• Compact High-Pin Package: The 896-FBGA (31×31) package delivers high pin density in a compact footprint for space-constrained designs.
• Embedded Memory: Approximately 0.203 Mbits of on-chip RAM supports data buffering and small state machines without external memory.
• Commercial-Focus: A commercial operating range and RoHS compliance align the device with mainstream electronic product requirements.

Why Choose APA1000-FG896?

The APA1000-FG896 positions itself as a dense, commercially graded FPGA option for designers who need substantial logic resources, high I/O counts, and on-chip memory in a compact FBGA package. Its combination of logic elements, gate count, and embedded RAM supports consolidation of discrete logic and enables flexible, hardware-configurable solutions.

This device is well suited for development teams and product designs that prioritize integration, board-level space savings, and the ability to reprogram logic as design requirements evolve. Backed by Microchip Technology manufacturing and RoHS compliance, the APA1000-FG896 offers a reliable, long-term programmable logic option for commercial electronic products.

Request a quote or submit an inquiry to obtain pricing, availability, and lead-time information for the APA1000-FG896. Our team can assist with order details and integration questions.
