APA1000-FG896A

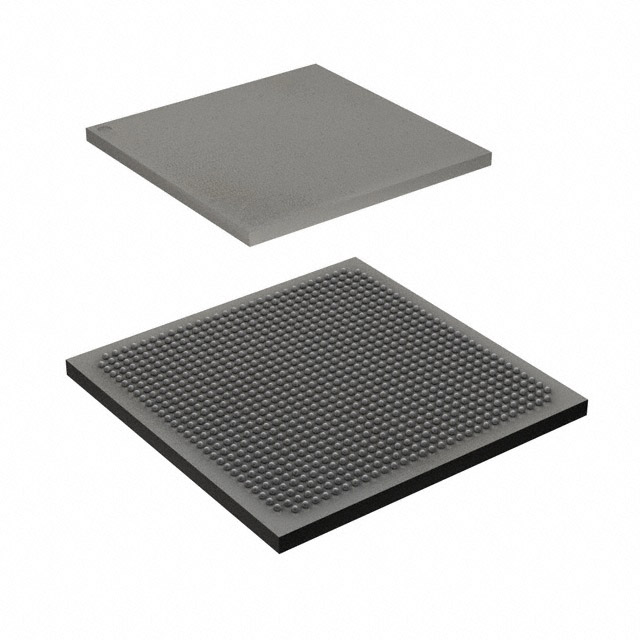

The APA1000-FG896A is a ProASICPLUS Field Programmable Gate Array (FPGA) packaged in an 896-ball BGA designed for surface-mount assembly. It integrates a substantial logic capacity and I/O count with on-chip memory and is provided in an automotive-grade, AEC-Q100 qualified device.

This device is suited for designs that require a high number of I/Os, significant logic resources, and operation across a wide temperature range, while meeting automotive qualification requirements.

Key Features

• Logic Capacity  Provides 56,320 logic elements and approximately 1,000,000 gates to implement complex digital functions and state machines.
• Embedded Memory  Includes 202,752 bits of on-chip RAM, approximately 0.203 Mbits of embedded memory for buffering, lookup tables, and small data stores.
• I/O Density  Offers 642 I/O pins to support dense external connectivity and multiple parallel interfaces.
• Power Supply  Operates from a supply range of 2.375 V to 2.625 V to match target system power rails.
• Package & Mounting  Supplied in an 896-BGA (896-FBGA, 31 × 31) surface-mount package to optimize board area and routing for high-pin-count applications.
• Automotive Qualification & Temperature  Automotive-grade device with AEC-Q100 qualification and an operating temperature range of −40 °C to 125 °C for demanding environments.
• Regulatory Compliance  RoHS compliant.

Typical Applications

• Automotive control systems  AEC-Q100 qualification and wide operating temperature range make the device suitable for electronic control units and sensor interface logic within automotive environments.
• High-density I/O hubs  High I/O count supports applications requiring many external connections, such as gateway modules or interface concentrators.
• Custom digital processing  Large logic element count and on-chip RAM enable implementation of custom logic, signal processing blocks, and glue logic in compact packages.

Unique Advantages

• High integration in a compact package: 896-BGA (31 × 31) packaging packs 642 I/Os and 56,320 logic elements into a space-efficient form factor, reducing board area compared with multiple discrete devices.
• Automotive-ready qualification: AEC-Q100 qualification and −40 °C to 125 °C operation support sustained performance in temperature-extreme automotive applications.
• Balanced logic and memory resources: Approximately 0.203 Mbits of embedded RAM alongside one million gates provide balanced resources for control, buffering, and small data processing tasks.
• Precise supply range: Narrow 2.375 V to 2.625 V supply requirement simplifies power-rail planning for systems designed around specific core voltage domains.
• RoHS compliance: Meets lead-free and hazardous-materials requirements for regulatory and manufacturing considerations.

Why Choose APA1000-FG896A?

The APA1000-FG896A positions itself as a robust, automotive-qualified FPGA option that combines a high I/O count, substantial logic capacity, and embedded memory in a compact 896-BGA package. Its qualification and extended temperature range make it appropriate for engineers designing electronics for automotive environments who need scalable digital logic and dense interfacing.

For teams seeking a proven FPGA platform with clear specification of logic, memory, I/O, package, and operating conditions, the APA1000-FG896A delivers predictable hardware characteristics and compliance that support long-term deployment and system-level integration.

Request a quote or submit your procurement inquiry to obtain pricing and availability for APA1000-FG896A and to discuss how this part can fit into your next design.
