APA1000-FGG896

The APA1000-FGG896 is a ProASICPLUS Field Programmable Gate Array (FPGA) IC from Microchip Technology. It provides a hardware-configurable logic resource with 56,320 logic elements, approximately 0.203 Mbits of embedded memory, and a gate count of 1,000,000.

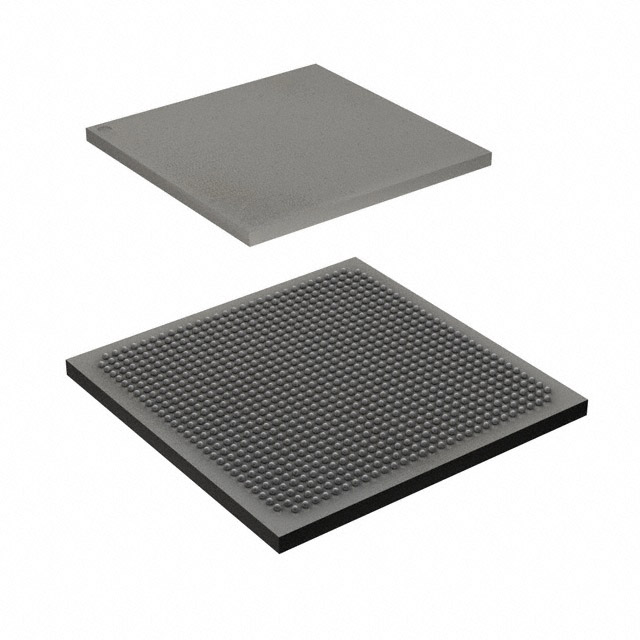

Designed as a commercial-grade, surface-mount device in an 896-BGA (896-FBGA, 31×31) package, the device offers 642 general-purpose I/Os, a 2.3 V to 2.7 V supply range, and an operating temperature range of 0 °C to 70 °C. The part is RoHS compliant.

Key Features

• Core Capacity 56,320 logic elements and an internal gate equivalent of 1,000,000 provide substantial programmable logic for complex implementations.
• Embedded Memory Total on-chip RAM of 202,752 bits (approximately 0.203 Mbits) for distributed storage and buffering within designs.
• I/O Density 642 device I/Os support extensive external interfacing and parallel connectivity requirements.
• Power and Voltage Operates from a 2.3 V to 2.7 V supply, enabling integration into low-voltage system domains.
• Package and Mounting Available in an 896-BGA (supplier package 896-FBGA, 31×31) surface-mount package to support high-pin-count board layouts.
• Operating Range and Grade Commercial-grade device rated for 0 °C to 70 °C operation.
• Environmental Compliance RoHS compliant to support regulatory requirements for lead-free assembly.

Unique Advantages

• High Logic Density: 56,320 logic elements and 1,000,000 gates enable implementation of complex logic functions on a single device, reducing PCB count.
• Substantial I/O Count: 642 I/Os allow extensive peripheral and subsystem connectivity without external multiplexing.
• On-Chip Memory: Approximately 0.203 Mbits of embedded RAM supports local buffering, state storage, and small data tables to simplify system design.
• Compact High-Pin Package: The 896-BGA (31×31) package delivers high pin count in a compact footprint suitable for dense PCB layouts.
• Low-Voltage Operation: 2.3 V to 2.7 V supply compatibility supports integration with low-voltage logic domains and power-optimized systems.
• Regulatory Compliance: RoHS compliance helps streamline lead-free manufacturing and environmental conformity.

Why Choose APA1000-FGG896?

The APA1000-FGG896 positions itself as a high-capacity, commercial-grade ProASICPLUS FPGA for designs that require substantial programmable logic, large I/O counts, and on-chip memory within a compact BGA package. Its combination of 56,320 logic elements, approximately 0.203 Mbits of embedded RAM, and 642 I/Os makes it suitable for systems where integration and pin density are key considerations.

As a Microchip Technology device, the APA1000-FGG896 offers a defined electrical and thermal envelope—2.3 V to 2.7 V supply and 0 °C to 70 °C operation—along with RoHS compliance to support modern assembly processes. Choose this part when your design requires a commercially graded FPGA with high logic and I/O resources in an 896-BGA surface-mount package.

Request a quote or submit a pricing inquiry to receive availability and lead-time information for the APA1000-FGG896.
