APA600-CQ208B

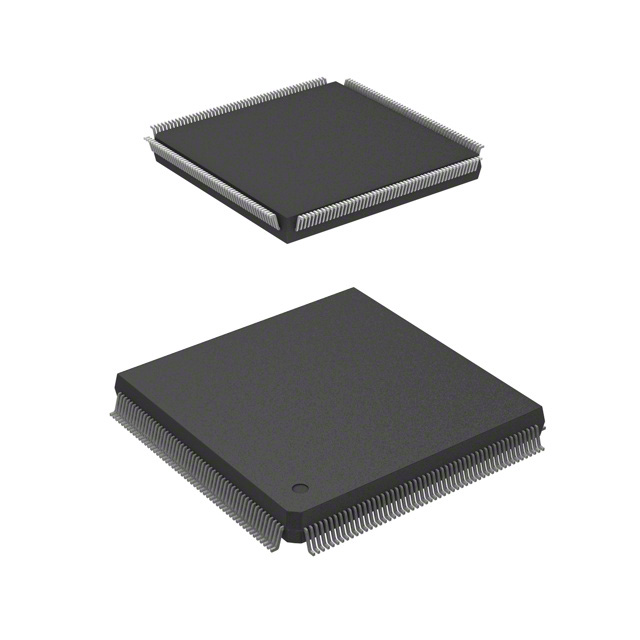

The APA600-CQ208B is a ProASICPLUS field programmable gate array (FPGA) IC supplied in a 208-BFCQFP package with tie bar. It integrates 21,504 logic elements and approximately 0.13 Mbits of embedded RAM to deliver flexible, reprogrammable logic for demanding embedded designs.

Engineered for military-grade environments, the device supports a wide operating temperature range and a low-voltage supply, making it suitable for applications that require robust thermal and electrical performance in a surface-mount 208-pin CQFP footprint.

Key Features

• Core Logic  21,504 logic elements provide substantial on-chip programmable logic capacity for custom digital functions.
• Embedded Memory  Total on-chip RAM of 129,024 bits (approximately 0.13 Mbits) for data buffering and state storage.
• I/O Count  158 user I/O pins to support multiple interfaces, peripheral connections, and board-level routing requirements.
• Gate Density  600,000 gates of logic capacity to implement complex combinational and sequential designs.
• Power  Operates from a 2.3 V to 2.7 V supply, enabling use with low-voltage system architectures.
• Package & Mounting  208-BFCQFP with tie bar (supplier package: 208-CQFP, 75×75); designed for surface-mount assembly.
• Temperature & Grade  Military grade with an operating temperature range of −55 °C to 125 °C for demanding environmental conditions.
• Compliance  RoHS compliant.

Typical Applications

• Military and Defense Electronics  Military-grade temperature rating and rugged packaging support use in defense systems requiring reliable programmable logic.
• Industrial Control  High logic density and 158 I/O pins enable implementation of control algorithms, state machines, and custom interfaces for industrial equipment.
• Embedded Systems and Prototyping  On-chip RAM and significant gate count make the device suitable for embedded designs that need reconfigurable logic and data buffering.

Unique Advantages

• High Logic Capacity: 21,504 logic elements and 600,000 gates support complex digital designs without immediate external logic expansion.
• Compact, Surface-Mount Packaging: 208-pin CQFP package (75×75) offers a high-pin-count solution in a board-friendly surface-mount form factor.
• Wide Operating Range: −55 °C to 125 °C rating and a 2.3 V–2.7 V supply range provide flexibility across harsh-environment deployments.
• Generous On-Chip Memory: Approximately 0.13 Mbits of embedded RAM supports buffering, FIFOs, and small data stores without external memory.
• Regulatory Compliance: RoHS compliance supports modern environmental and manufacturing requirements.

Why Choose APA600-CQ208B?

The APA600-CQ208B combines substantial programmable logic resources, a practical embedded memory footprint, and a high I/O count in a military-grade, surface-mount CQFP package. This balance of capacity, thermal range, and packaging makes it well suited to engineering teams building robust, reconfigurable solutions that must operate across challenging temperature extremes.

Choose this ProASICPLUS FPGA when your design requires reliable, field-programmable logic with military-grade environmental performance, compact board-level integration, and the on-chip resources to minimize external components and streamline system architecture.

Request a quote or submit a procurement inquiry to receive pricing and availability information for the APA600-CQ208B.
