EP20K100TC144-2

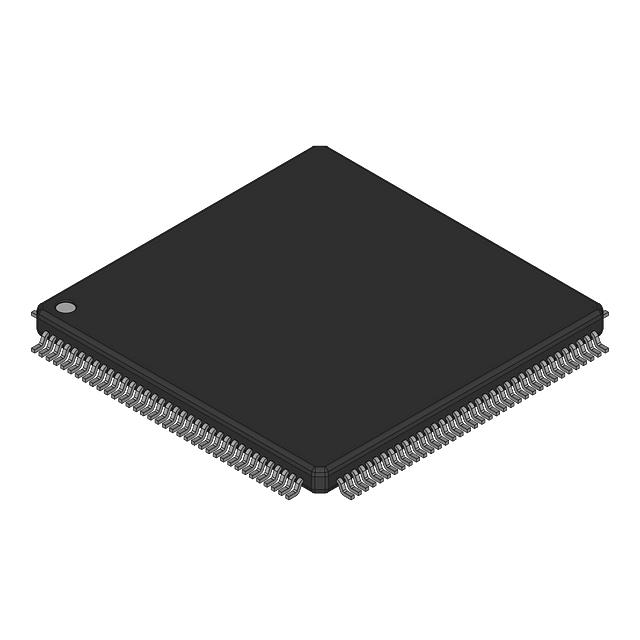

The EP20K100TC144-2 is an APEX-20K® field programmable gate array (FPGA) supplied in a 144-LQFP surface-mount package. It provides a compact, commercial-grade programmable logic solution with 4,160 logic elements, 53,248 bits of on-chip RAM and 101 user I/O pins.

With a supply voltage range of 1.71 V to 1.89 V and an operating temperature range of 0 °C to 85 °C, this device is intended for commercial electronic designs that require moderate logic density, embedded memory and flexible I/O in a low-profile package.

Key Features

• Core Logic 4,160 logic elements and approximately 263,000 gates provide the programmable fabric for custom digital functions and state machines.
• Embedded Memory Approximately 0.053 Mbits (53,248 bits) of on-chip RAM to support small buffers, FIFOs or lookup tables within the FPGA design.
• I/O Capacity 101 general-purpose I/O pins available for interfacing with external peripherals, sensors and buses.
• Power and Supply Operates from a supply voltage range of 1.71 V to 1.89 V to match compatible core power architectures.
• Package and Mounting Supplied in a 144-LQFP package (supplier device package: 144-TQFP, 20 × 20 mm) with surface-mount mounting for compact board designs.
• Environmental and Grade Commercial grade device with an operating temperature of 0 °C to 85 °C and RoHS compliance for regulatory conformity in many commercial products.

Typical Applications

• Digital Control and Glue Logic Implement custom control logic, protocol bridging or glue logic where moderate logic density and flexible I/O are required.
• Prototyping and Development Use the FPGA for proof-of-concept designs and feature validation that leverage its logic elements and embedded RAM.
• Peripheral and Interface Handling Handle sensor interfaces, simple bus translations or peripheral aggregation using the available 101 I/O pins.

Unique Advantages

• Balanced Logic and Memory: 4,160 logic elements combined with approximately 53,248 bits of on-chip RAM allow integrated implementation of control logic with local buffering.
• Compact, Low-Profile Package: The 144-LQFP surface-mount package (144-TQFP, 20 × 20 mm) saves board space while providing a high pin count for I/O connectivity.
• Commercial Temperature Range: Rated for 0 °C to 85 °C, suitable for a wide range of commercial electronic products and environments.
• Regulatory Compliance: RoHS-compliant construction supports regulatory requirements for many commercial applications.
• Defined Supply Requirements: Narrow core supply range (1.71 V–1.89 V) helps maintain predictable power design and regulation choices.

Why Choose EP20K100TC144-2?

The EP20K100TC144-2 provides a focused, commercial-grade FPGA option that balances logic capacity, embedded memory and I/O in a 144-LQFP surface-mount package. Its defined supply voltage range and operating temperature make it appropriate for commercial electronic designs that require reliable programmable logic and local embedded RAM.

This device is well suited for engineers and teams implementing custom digital logic, interface handling, and prototype validation where compact packaging, RoHS compliance and a clear specification set are important selection criteria.

Request a quote or submit an inquiry to receive pricing, availability and lead-time information for the EP20K100TC144-2.
