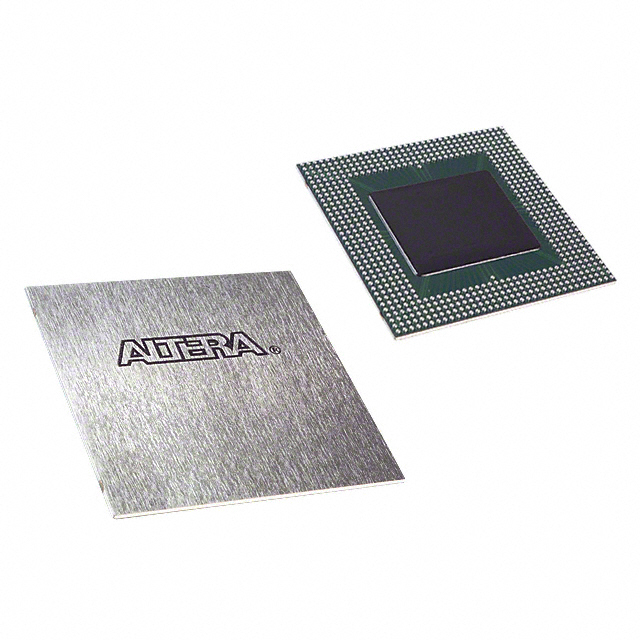

EP20K1500EBC652-1

The EP20K1500EBC652-1 is an APEX-20KE® family Field Programmable Gate Array (FPGA) in a 652‑BGA (45×45) package, designed for high-density commercial applications. It implements the MultiCore architecture integrating LUT logic, product-term logic and embedded memory to deliver a configurable platform for complex logic, memory interfacing and high‑performance I/O requirements.

With 51,840 logic elements, approximately 0.44 Mbits of embedded memory and 488 user I/O pins, this device targets commercial systems that need significant programmable logic, flexible I/O and on‑chip RAM without sacrificing board area.

Key Features

• High logic density — 51,840 logic elements and approximately 2,392,000 system gates provide substantial capacity for large FPGA designs.
• Embedded memory — Approximately 0.44 Mbits (442,368 bits) of on‑chip RAM for FIFOs, dual‑port RAM and other memory functions without reducing available logic.
• Rich I/O set — 488 user I/O pins with MultiVolt I/O interface support for interfacing with different voltage domains.
• Clock and timing management — Flexible clock management with up to four phase‑locked loops (PLLs) and built‑in low‑skew clock tree; includes ClockLock, ClockBoost and ClockShift features for programmable clock control.
• Advanced I/O capabilities — Supports high‑speed external memories (including DDR SDRAM and ZBT SRAM) and advanced signaling standards; LVDS performance and programmable output slew and clamp options are supported (per APEX 20K family documentation).
• Package and mounting — 652‑BGA (45×45) surface‑mount package for compact, high‑pin‑count board designs.
• Power and operating range — Internal supply range 1.71 V to 1.89 V and commercial operating temperature 0 °C to 85 °C.
• Regulatory — RoHS compliant.

Typical Applications

• High‑density logic systems — Implement complex, register‑intensive functions and large combinatorial logic using the device’s 51,840 logic elements.
• Memory interface controllers — Use the substantial on‑chip RAM and external memory support for DDR SDRAM and ZBT SRAM to build high‑performance memory controllers and buffering logic.
• High‑speed I/O bridging — Leverage MultiVolt I/O and advanced signaling support for bridging between different bus and peripheral voltage domains in commercial equipment.
• Embedded system integration — Consolidate custom logic, protocol handling and memory functions on a single programmable device to reduce component count and PCB area.

Unique Advantages

• Substantial on‑chip resources: 51,840 logic elements and approximately 0.44 Mbits of embedded memory enable large, integrated designs without immediate need for external logic devices.
• Flexible I/O and memory support: 488 I/O pins and family‑level support for DDR and ZBT memories simplify high‑speed data paths and memory subsystem design.
• Programmable clocking: Up to four PLLs and advanced clock features (ClockLock, ClockBoost, ClockShift) provide deterministic timing and clock domain control for complex systems.
• Compact high‑pin package: 652‑BGA (45×45) package packs high pin count in a small footprint for space‑constrained commercial designs.
• Commercial temperature and RoHS compliance: Rated for 0 °C to 85 °C operation and RoHS compliant for broad commercial deployment.

Why Choose EP20K1500EBC652-1?

The EP20K1500EBC652-1 combines high logic capacity, significant embedded RAM and a broad, flexible I/O complement in a compact 652‑BGA package—making it well suited for commercial designs that require scalable FPGA resources and on‑chip memory. As a member of the APEX 20K family, it provides the architecture and features to consolidate logic, memory buffering and high‑speed I/O in a single programmable device.

This part is appropriate for engineering teams building complex commercial systems who need programmable flexibility, substantial on‑chip resources and a compact, high‑pin‑count package for board‑level integration.

Request a quote or submit a sales inquiry to begin procurement or to get pricing and availability for EP20K1500EBC652-1.
