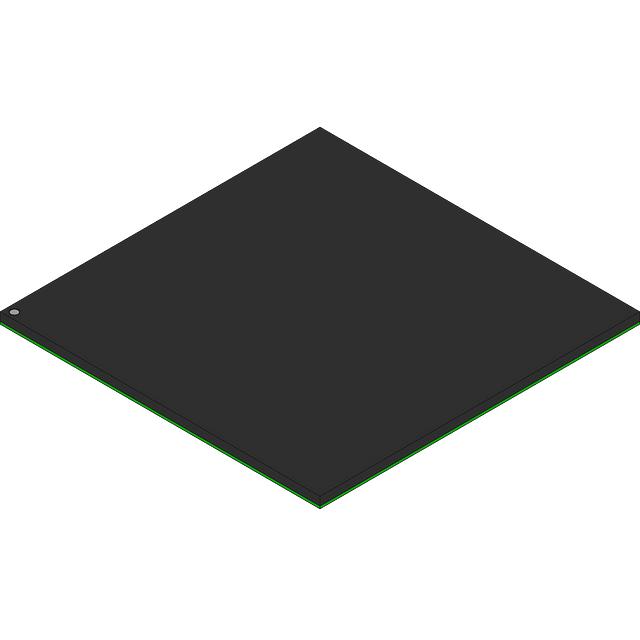

EP20K1500EBC652-2X

The EP20K1500EBC652-2X is an APEX-20KE family FPGA in a 652-ball BGA package, designed for reconfigurable digital logic and high-density I/O applications. It provides a large pool of programmable logic and embedded RAM to implement custom digital functions and interface-rich designs.

Key architectural highlights include 51,840 logic elements, 442,368 bits of on-chip RAM (approximately 0.44 Mbits), and 488 user I/O pins, all supplied in a 652-BGA (45×45) surface-mount package. The device is specified for commercial operation and is RoHS compliant.

Key Features

• FPGA Core  APEX-20KE family FPGA with 51,840 logic elements for implementing complex programmable logic functions.
• Embedded Memory  442,368 bits of on-chip RAM (approximately 0.44 Mbits) for data buffering, lookup tables, and state storage.
• I/O Count  488 user I/O pins to support dense external interfacing and parallel connectivity.
• Package and Mounting  652-BGA package (45×45) in a surface-mount format for compact board-level integration.
• Power  Single-core supply range specified at 1.71 V to 1.89 V to match system power-rail requirements.
• Operating Range  Commercial grade operation from 0 °C to 85 °C.
• Environmental Compliance  RoHS compliant for lead-free assembly and regulatory alignment.

Unique Advantages

• High logic density: 51,840 logic elements enable consolidation of multiple functions into a single device, reducing board-level component count.
• Substantial on-chip memory: Approximately 0.44 Mbits of embedded RAM supports local buffering and state storage without requiring external memory for many designs.
• Large I/O capacity: 488 I/O pins provide flexibility for parallel interfaces, sensor arrays, and multi-channel connectivity.
• Compact BGA footprint: 652-ball BGA (45×45) allows a high pin-count connection in a compact package suitable for space-constrained PCBs.
• Controlled power supply window: A narrow supply range (1.71–1.89 V) simplifies power-supply design and voltage planning.
• Commercial temperature support: Rated for 0 °C to 85 °C, matching typical commercial electronics deployments.

Why Choose EP20K1500EBC652-2X?

The EP20K1500EBC652-2X delivers a balance of high logic capacity, significant on-chip RAM, and broad I/O density in a compact 652-BGA package. These attributes make it well suited to designs that need substantial programmable logic and many external interfaces while maintaining a compact PCB presence and controlled power requirements.

For teams and projects that require a reconfigurable, RoHS-compliant commercial-grade FPGA with a clear set of electrical and mechanical specifications (1.71–1.89 V supply, 0 °C–85 °C operating range, 652-BGA 45×45 package), the EP20K1500EBC652-2X is positioned as a practical choice to integrate programmable logic, local memory, and high I/O counts into a single device.

Request a quote or submit an inquiry to receive pricing, availability, and ordering information for the EP20K1500EBC652-2X.
