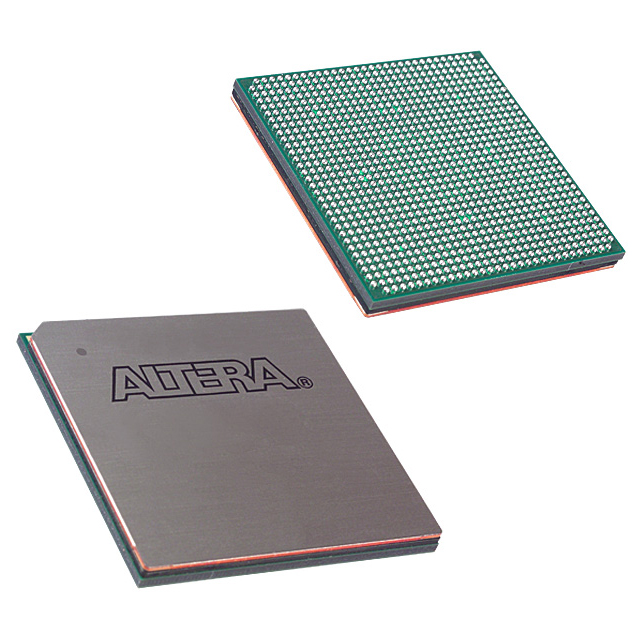

EP2S130F1020I4N

The EP2S130F1020I4N is an Intel Stratix® II FPGA delivered in a 1020‑ball BGA package, designed for high‑density programmable logic applications. The device integrates a large logic fabric, dedicated DSP resources, embedded memory, and a comprehensive I/O and clocking architecture to support complex digital designs that require significant on‑chip resources.

This industrial‑grade, surface‑mount component provides a wide operating temperature range and RoHS compliance, making it suitable for demanding systems that need dense logic, substantial embedded memory, and flexible high‑speed I/O and clocking features.

Key Features

• Core Logic 6,627 LABs comprising 132,540 logic elements enable implementation of large, complex digital designs and custom processing pipelines.
• Embedded Memory Approximately 6.75 Mbits of on‑chip RAM (6,747,840 bits) for data buffering, lookup tables, FIFOs and local storage.
• I/O Capacity & Standards 742 I/O pins provide extensive external interfacing. The Stratix II family supports advanced I/O features such as multi‑voltage I/O, on‑chip termination, and high‑speed differential interfaces as documented in the device handbook.
• Clocking and PLLs Enhanced and fast PLLs plus a hierarchical clock network provide flexible, high‑performance clock management for synchronized logic, high‑speed I/O, and external memory interfaces.
• DSP and Signal Processing Blocks Dedicated digital signal processing blocks support arithmetic and high‑throughput signal processing functions as part of the Stratix II architecture.
• Configuration & Debug JTAG boundary‑scan support and embedded logic analysis (SignalTap II) are included in the device family for board‑level testability and in‑system debugging.
• Power and Supply Core voltage supply range is 1.15 V to 1.25 V to support the device’s internal power requirements.
• Package & Mounting 1020‑BBGA package (supplier device package listed as 1020‑FBGA, 33×33) with surface‑mount attachment for compact, board‑level integration.
• Industrial Temperature Range Qualified for operation from −40 °C to 100 °C, supporting deployment in environments that require an extended temperature envelope.
• Environmental Compliance RoHS‑compliant construction for adherence to common environmental requirements.

Typical Applications

• High‑density digital systems — Implement large custom logic blocks, protocol processing, and control logic using the device’s 132,540 logic elements and extensive LAB resources.
• Signal processing and DSP — Leverage dedicated DSP blocks and abundant embedded RAM for filtering, transforms, and real‑time data manipulation.
• High‑speed I/O interfaces — Use extensive I/O count and advanced I/O features to interface with memory, SERDES pairs, and high‑bandwidth peripherals.
• Prototyping and system integration — Large logic capacity and on‑chip memory make the FPGA suitable for system‑level prototyping and consolidation of multiple functions into a single device.

Unique Advantages

• High logic density: 132,540 logic elements and 6,627 LABs provide a platform for complex designs without immediate need for multiple devices.
• Substantial on‑chip memory: Approximately 6.75 Mbits of embedded RAM reduces dependence on external memory for intermediate buffering and state storage.
• Comprehensive I/O and clocking: 742 I/O pins combined with enhanced PLLs and hierarchical clock networks enable flexible interfacing and precise timing control.
• Integrated DSP resources: On‑die DSP blocks accelerate compute‑intensive algorithms and offload tasks from external processors.
• Industrial reliability: −40 °C to 100 °C operating range and surface‑mount 1020‑BGA packaging support deployment in temperature‑sensitive and space‑constrained installations.
• Testability and debug support: JTAG boundary‑scan and embedded logic analysis capabilities improve development turnaround and board‑level diagnostics.

Why Choose EP2S130F1020I4N?

The EP2S130F1020I4N combines a high logic element count, substantial embedded memory, and dedicated DSP and clocking resources in a single industrial‑grade FPGA package. It targets designers who require dense programmable logic, ample on‑chip RAM, and flexible high‑speed I/O for complex digital and signal‑processing systems.

With Stratix II family architecture elements documented in the device handbook—such as multi‑level clocking, enhanced PLLs, advanced I/O support, and embedded debug features—this device offers a robust platform for scaling designs while maintaining system integration and testability.

Request a quote or submit an inquiry to receive pricing, availability, and technical support information for EP2S130F1020I4N.
