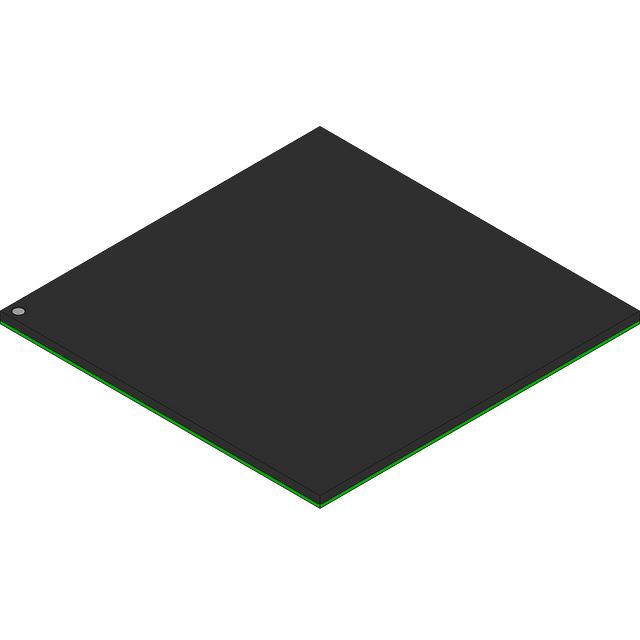

EPF10K50VBC356-1N

The EPF10K50VBC356-1N is a FLEX-10K® field programmable gate array (FPGA) from Altera provided in a 356-LBGA package. It delivers a configurable logic fabric with on-chip memory and a high count of general-purpose I/O for use in reprogrammable digital designs.

With 2,880 logic elements, approximately 0.02 Mbits of embedded RAM, and 274 I/O pins, this commercial-grade FPGA targets applications that require moderate logic density and abundant I/O in a compact surface-mount BGA footprint.

Key Features

• Core Logic  2,880 logic elements provide the FPGA's programmable logic capacity for implementing custom digital functions and state machines.
• Embedded Memory  Approximately 20,480 bits (≈0.02 Mbits) of on-chip RAM for small data buffering, lookup tables, and state storage.
• High I/O Count  274 available I/O pins suitable for designs requiring extensive peripheral, bus, or sensor connectivity.
• Power Supply  Operates from a 3 V to 3.6 V supply range, enabling integration with common 3.3 V systems.
• Package & Mounting  Surface-mount 356-LBGA package (356-BGA, 35×35) for compact PCB integration and high-density board layouts.
• Operating Range  Commercial temperature grade with operating range from 0 °C to 70 °C for standard ambient conditions.
• Environmental Compliance  RoHS compliant for adherence to common lead-free manufacturing requirements.

Typical Applications

• Custom Logic Prototyping  Implement and iterate custom digital logic and state machines during product development and proof-of-concept work.
• I/O-Intensive Interfaces  Aggregate multiple peripheral interfaces or bus signals where a high count of general-purpose I/O is required.
• Embedded System Control  Provide configurable control logic, finite-state controllers, and glue logic within compact embedded designs.

Unique Advantages

• Balanced Logic Capacity: 2,880 logic elements deliver moderate programmable logic resources suitable for a wide range of custom digital functions without overspecifying the design.
• Ample I/O Integration: 274 I/O pins reduce the need for external I/O expanders and simplify routing for complex peripheral setups.
• Compact BGA Footprint: The 356-LBGA (35×35) package enables a small PCB footprint while supporting high pin density for space-constrained designs.
• Straightforward Power Requirements: Standard 3 V–3.6 V supply compatibility eases integration with common system rails.
• RoHS Compliant: Meets lead-free manufacturing requirements for modern production flows.

Why Choose EPF10K50VBC356-1N?

The EPF10K50VBC356-1N positions itself as a practical, reprogrammable logic device combining 2,880 logic elements, approximately 20,480 bits of on-chip RAM, and 274 I/O in a compact 356-LBGA surface-mount package. Its commercial temperature rating and standard 3 V–3.6 V supply make it suitable for a broad range of non-industrial embedded and digital designs that require a balance of logic capacity and I/O density.

Designers and procurement teams looking for a FLEX-10K® FPGA from Altera with RoHS compliance and a compact BGA package will find this part appropriate for applications that prioritize configurable logic, on-chip memory, and extensive I/O in a commercially graded device.

Request a quote or submit an inquiry to obtain pricing and availability for the EPF10K50VBC356-1N.
