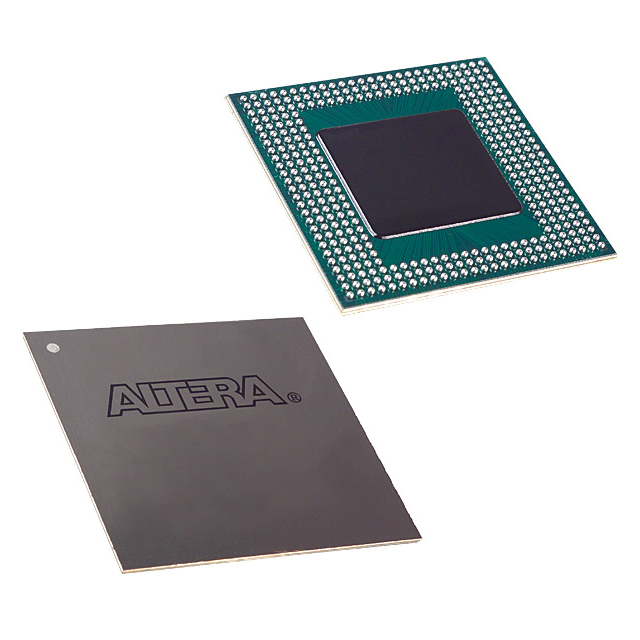

EPF10K50VBC356-3N
| Part Description |
FLEX-10K® Field Programmable Gate Array (FPGA) IC 274 20480 2880 356-LBGA |
|---|---|
| Quantity | 586 Available (as of October 7, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Intel |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 356-BGA (35x35) | Grade | Commercial | Operating Temperature | 0°C – 70°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 356-LBGA | Number of I/O | 274 | Voltage | 3 V - 3.6 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | Unknown | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 360 | Number of Logic Elements/Cells | 2880 | ||
| Number of Gates | 116000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 20480 |
Overview of EPF10K50VBC356-3N – FLEX-10K® Field Programmable Gate Array, 2,880 logic elements
The EPF10K50VBC356-3N is a FLEX 10K family field programmable gate array (FPGA) packaged in a 356-LBGA. It combines a logic array and embedded array blocks to implement general logic alongside dedicated megafunctions such as on-chip memory and specialized logic structures.
Designed for commercial embedded applications, this device delivers a balance of logic capacity, on-chip RAM, and flexible I/O in a space-efficient BGA package, and is suitable for system-level integration including System-on-a-Programmable-Chip (SOPC) implementations.
Key Features
- Core — FLEX 10K architecture 2,880 logic elements and 360 logic array blocks (LABs) provide the device’s core programmable fabric for implementing combinational and sequential logic.
- Logic capacity Up to 116,000 maximum system gates (device-specific typical gates and system gate figures are defined by the FLEX 10K family).
- Embedded memory 20,480 total RAM bits implemented across embedded array blocks (EABs) for on-chip storage and memory-mapped megafunctions.
- I/O capability 274 user I/O pins with per-pin features such as individual tri-state output enable, open-drain option, and programmable output slew-rate control for flexible interface design.
- Supply and temperature Single-supply operation from 3.0 V to 3.6 V; commercial operating temperature range of 0 °C to 70 °C.
- Package and mounting 356-LBGA package (356-BGA, 35 × 35) optimized for surface-mount PCB assembly and high pin-count routing.
- In-system configurability and test Supports in-circuit reconfigurability via external configuration devices or JTAG; built-in IEEE 1149.1 JTAG boundary-scan test circuitry is available without consuming device logic.
- System-level features Integrated features from the FLEX 10K family such as FastTrack continuous routing, dedicated carry and cascade chains, low-skew clock distribution, and ClockLock/ClockBoost options help implement high-performance arithmetic and clocking structures.
- Compliance RoHS compliant and supplied as a commercial-grade device.
Typical Applications
- SOPC and embedded controllers — Use the embedded arrays and logic fabric to integrate memory and specialized functions into system-on-programmable-chip designs.
- Memory-intensive logic — On-chip RAM and EABs support buffering, small data stores, and megafunctions without external memory in many applications.
- Peripheral and bus interfacing — FLEX 10K family support for PCI Local Bus Specification (as documented for FLEX 10K devices) and flexible I/O make the device suitable for interface and bridging logic.
- I/O-rich control and glue logic — High I/O count and per-pin control are useful for protocol translation, sensor aggregation, and board-level control tasks.
Unique Advantages
- Balanced logic and memory — 2,880 logic elements combined with 20,480 bits of embedded RAM enable mixed compute-and-data tasks on a single device, reducing the need for external components.
- Flexible I/O control — Per-pin tri-state enable, open-drain option, and slew-rate programmability simplify interface design and signal integrity tuning.
- In-system reconfigurability and testability — JTAG boundary-scan and in-circuit reconfiguration options streamline development, deployment, and field updates without consuming user logic.
- Proven system features — Dedicated carry/cascade chains, FastTrack routing, and low-skew clock trees facilitate efficient implementation of arithmetic functions and timing-sensitive designs.
- Space-efficient packaging — 356-LBGA package supports high pin count and board area savings for dense designs.
- Vendor toolchain support — FLEX 10K family devices are supported by Altera development systems for design entry, place-and-route, and megafunction generation (as documented for the family).
Why Choose EPF10K50VBC356-3N?
EPF10K50VBC356-3N brings a practical mix of logic, embedded memory, and I/O capability in a commercial-grade FLEX 10K device. Its 2,880 logic elements, 20,480 bits of on-chip RAM, and comprehensive system features make it a strong candidate for embedded system integration where compact packaging and in-system configurability are important.
The device is well suited to engineering teams building SOPC solutions, interface logic, and memory-backed megafunctions who need predictable routing, dedicated arithmetic chains, and on-board testability, with the development ecosystem and documentation available for the FLEX 10K family.
