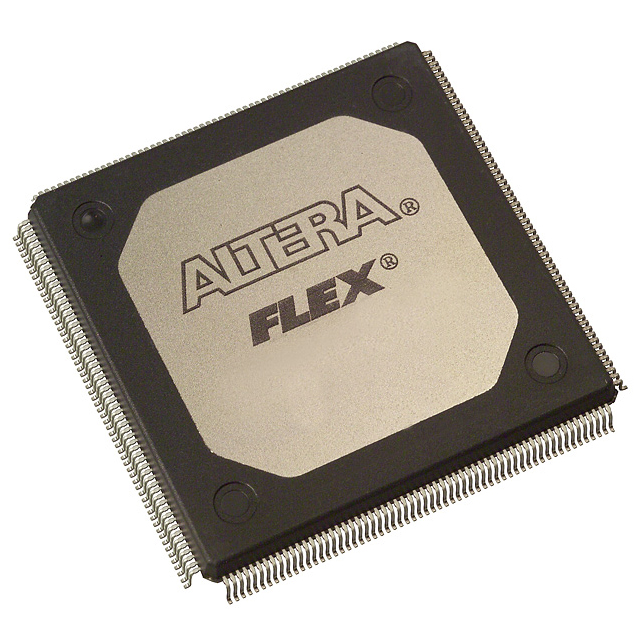

EPF10K50VRC240-2
| Part Description |
FLEX-10K® Field Programmable Gate Array (FPGA) IC 189 20480 2880 240-BFQFP Exposed Pad |
|---|---|
| Quantity | 1,147 Available (as of October 8, 2026) |
| Product Category | Field Programmable Gate Array (FPGA) |
|---|---|
| Manufacturer | Intel |
| Manufacturing Status | Obsolete |
| Manufacturer Standard Lead Time | Contact Us |
| Datasheet |
Specifications & Environmental
| Device Package | 240-RQFP (32x32) | Grade | Commercial | Operating Temperature | 0°C – 70°C | ||
|---|---|---|---|---|---|---|---|
| Package / Case | 240-BFQFP Exposed Pad | Number of I/O | 189 | Voltage | 3 V - 3.6 V | ||
| Mounting Method | Surface Mount | RoHS Compliance | RoHS non-compliant | REACH Compliance | REACH Unaffected | ||
| Moisture Sensitivity Level | 3 (168 Hours) | Number of LABs/CLBs | 360 | Number of Logic Elements/Cells | 2880 | ||
| Number of Gates | 116000 | ECCN | 3A991D | HTS Code | 8542.39.0001 | ||
| Qualification | N/A | Total RAM Bits | 20480 |
Overview of EPF10K50VRC240-2 – FLEX-10K® FPGA IC, 2880 Logic Elements, 20,480-bit Embedded RAM
The EPF10K50VRC240-2 is a member of the FLEX 10K family of embedded programmable logic devices. It combines a logic array with embedded memory array blocks to implement megafunctions and custom logic for system-level integration.
Designed for moderate-density applications, this device provides 2,880 logic elements, approximately 20,480 bits of on-chip RAM, and up to 189 user I/O pins in a 240‑pin BFQFP exposed pad package. It supports in-circuit reconfigurability and family-level software design tools for automated place-and-route.
Key Features
- Core Logic 2,880 logic elements and 360 logic array blocks (LABs) provide predictable combinational and sequential logic resources for custom functions.
- Embedded Memory Approximately 20,480 bits of RAM implemented across embedded array blocks (EABs) for megafunctions and local buffering.
- Gate Density Up to 116,000 maximum system gates, enabling integration of significant logic and RAM within a single device.
- I/O and Voltage Up to 189 user I/O pins with a supply voltage range of 3 V to 3.6 V (3.3 V class device).
- Clocking and Performance Built-in low-skew clock distribution trees, options for ClockLock and ClockBoost, and dedicated carry and cascade chains to support high-speed arithmetic and fan-in logic.
- Configurability and Test In-circuit reconfigurability via external configuration device, intelligent controller, or JTAG. Built-in JTAG boundary-scan test (IEEE 1149.1) is available without consuming device logic.
- Package and Mounting 240‑BFQFP exposed pad package (supplier package: 240‑RQFP 32×32), surface-mount mounting for PCB assembly.
- Commercial Grade and Temperature Commercial grade device with an operating temperature range of 0 °C to 70 °C and RoHS compliance.
Typical Applications
- System Integration & SOPC Implement megafunctions and local memory to consolidate peripheral functions and custom logic into a single programmable device.
- Interface Bridging Use abundant I/O and programmable logic to adapt and bridge peripheral interfaces and protocol conversions on a PCB.
- Custom Logic Acceleration Offload application-specific combinational and sequential tasks to on-chip logic and dedicated carry/cascade resources for faster, deterministic execution.
- Embedded Memory Functions Leverage the device’s embedded RAM blocks for buffering, lookup tables, and small data storage close to logic to reduce external memory requirements.
Unique Advantages
- Balanced Logic and Memory: 2,880 logic elements combined with approximately 20,480 bits of embedded RAM support mixed logic-plus-memory designs without external components.
- Rich I/O Count: Up to 189 user I/O pins provide flexible connectivity for multi-peripheral boards and complex signal routing.
- Family-Level Support: Part of the FLEX 10K family with software design tools for automatic place-and-route, enabling faster development cycles and easier migration to other density points in the family.
- On-Device Test and Reconfiguration: JTAG boundary-scan and in-circuit reconfigurability simplify debug, programming, and field updates without consuming core logic.
- Deterministic Arithmetic Support: Dedicated carry and cascade chains are optimized for fast adders, counters, and high-fan-in logic functions.
Why Choose EPF10K50VRC240-2?
The EPF10K50VRC240-2 delivers a practical balance of logic density, embedded memory, and I/O capacity in a commercially graded, RoHS‑compliant device. As a FLEX 10K family member, it provides predictable routing and clocking structures plus dedicated arithmetic/cascade resources to simplify implementation of complex logic and megafunctions.
This device is well suited for designers who require moderate-density programmable logic with on-chip memory, flexible I/O, and in-circuit reconfiguration supported by established development tools. Its package options and family compatibility offer a straightforward path for scaling designs within the FLEX 10K portfolio.
Request a quote or submit a pricing inquiry for EPF10K50VRC240-2 to receive availability, lead time, and commercial purchasing information.
