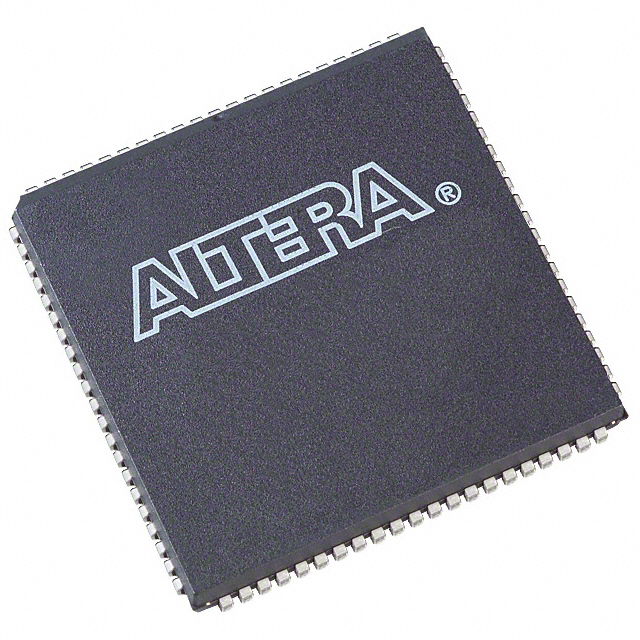

EPF8282ALC84-3

The EPF8282ALC84-3 is an Altera FLEX 8000 family programmable logic device designed for register-rich, low-cost programmable logic applications. It implements logic in compact look-up tables and programmable registers, offering 26 logic array blocks (LABs) and 208 logic elements suitable for control, bus interface, and data-manipulation functions.

With 68 user I/O pins, a 5.0 V nominal supply range (4.75 V to 5.25 V), and commercial-grade operating range, this surface-mount 84-LCC (J-lead) PLCC package is suited to a variety of standard embedded and system-level designs that require reconfigurable logic and predictable interconnect behavior.

Key Features

• Logic Fabric 26 logic array blocks (LABs) and 208 logic elements providing approximately 2,500 usable gates for implementing control logic, state machines, and glue-logic.
• I/O and Voltage Support 68 user I/O pins with MultiVolt-compatible family architecture; device supply specified at 4.75 V to 5.25 V for 5.0 V operation.
• Packaging & Mounting 84-LCC (J-Lead) surface-mount PLCC package (84-PLCC, 29.31 × 29.31 mm) optimized for board-level integration and standard assembly processes.
• Operational Range Commercial-grade temperature range from 0 °C to 70 °C for typical embedded and system applications.
• On-chip Resources Provides a high register count and dedicated routing resources typical of the FLEX 8000 family for predictable interconnect delays and efficient arithmetic/cascade functions.
• Configuration & Development Supports in-circuit reconfigurability via external configuration devices or intelligent controllers and is supported by family development tools described in the FLEX 8000 documentation.
• Compliance & RoHS RoHS compliant for environmentally conscious designs.

Typical Applications

• Bus Interfaces Implement custom bus logic and protocol bridging using the device's dense register resources and 68 I/O pins for mid-density interconnects.
• TTL Integration & Glue Logic Replace discrete glue logic with a single reprogrammable device to simplify board layout and reduce BOM count.
• Coprocessor / Control Functions Implement control paths, arbitration, and state machines that benefit from the FLEX 8000 architecture’s register-rich fabric.
• Data Manipulation & DSP Support Use the device’s flip-flop capacity and dedicated routing to support wide-data-path manipulation and basic DSP-oriented control functions.

Unique Advantages

• Compact, Reconfigurable Logic 208 logic elements in a single PLCC package let you consolidate multiple discrete functions into one programmable device.
• Predictable Interconnect FLEX 8000 family routing delivers predictable delays, simplifying timing closure for mid-complexity designs.
• 5 V-System Compatibility Device supply and family I/O compatibility with 5.0 V systems make it straightforward to integrate with legacy TTL and 5 V logic domains.
• Low-Cost, Surface-Mount Package The 84-LCC J-lead PLCC reduces board area and assembly complexity compared with multi-chip solutions.
• Development Ecosystem Family-level software support and standard EDA tool interfaces assist design entry, place-and-route, and verification workflows.

Why Choose EPF8282ALC84-3?

The EPF8282ALC84-3 positions itself as a practical, commercial-grade programmable logic solution when you need mid-density reconfigurable logic with an emphasis on register resources and predictable routing. Its combination of 208 logic elements, 68 I/Os, and a 5.0 V supply range makes it well suited for bus interfaces, control logic, and system glue tasks where consolidation and flexibility reduce board complexity.

Backed by the FLEX 8000 family architecture and documented development support, this device delivers straightforward integration for designers seeking a balance of capacity, I/O count, and package efficiency in standard embedded applications.

Request a quote or submit an inquiry to receive pricing and availability for the EPF8282ALC84-3 and to discuss how it can fit into your next design.
