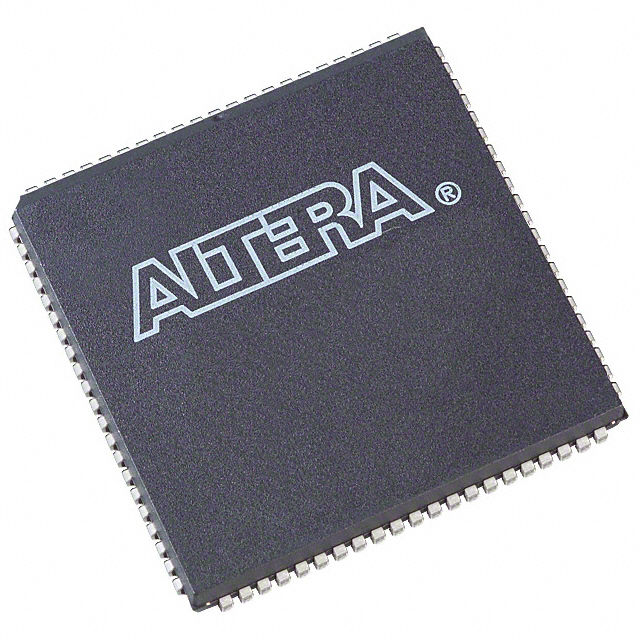

EPF8282ALC84-4N

The EPF8282ALC84-4N is a member of the FLEX 8000 programmable logic device family, delivering a compact, register-rich FPGA architecture for logic integration and control functions. This commercial-grade, surface-mount device packs 208 logic elements (approximately 2,500 usable gates) and 68 user I/O pins into an 84-pin PLCC (J-lead) package.

Targeted for applications requiring moderate logic density and high pin count in a small footprint, the EPF8282ALC84-4N is well suited for bus interfaces, TTL-level integration, coprocessor functions and high-speed control tasks where predictable routing and reconfigurability are valuable.

Key Features

• Core Logic  208 logic elements providing approximately 2,500 usable gates for implementing combinational and registered logic.
• Register Capacity  High register count suitable for synchronous designs (family-level flip-flop counts support register-rich implementations).
• I/O  68 user I/O pins in the 84-LCC package for flexible interfacing with external logic and buses.
• Voltage Supply  Operates from 4.75 V to 5.25 V, matching standard 5.0 V system environments.
• Package & Mounting  84-LCC (J-lead) surface-mount package—supplier device package 84-PLCC (29.31 × 29.31 mm)—for compact board-level integration.
• Temperature & Grade  Commercial grade with an operating temperature range of 0 °C to 70 °C.
• On-chip Memory  No embedded RAM bits (Total RAM bits: 0), simplifying resource planning for external memory needs.
• Low-power Standby  Family-level low standby current characteristics suitable for power-conscious designs.
• Design Tool Support  Supported by the MAX+PLUS II development system with automatic place-and-route and common HDL/EDIF flows for streamlined design entry and implementation.
• RoHS Compliant  Meets RoHS environmental requirements for compliant manufacturing processes.

Typical Applications

• Bus Interfaces  Implement parallel bus glue logic and protocol adaptors where multiple I/O and predictable routing are required.
• TTL Integration  Integrate legacy TTL signals and glue logic in mixed-voltage systems operating around 5.0 V.
• Coprocessor Functions  Offload control or specialized logic functions alongside a main processor, leveraging the device’s register-rich architecture.
• High-speed Controllers  Control logic for timing-critical subsystems that benefit from the FLEX 8000 family’s continuous routing and dedicated arithmetic/cascade resources.

Unique Advantages

• Compact, usable logic density: 208 logic elements (≈2,500 gates) deliver a balance of capability and board-space efficiency for mid-range logic tasks.
• Flexible I/O count: 68 user I/O pins in a small PLCC package enable complex interfacing without a large package footprint.
• 5 V system compatibility: 4.75–5.25 V supply range aligns with standard 5.0 V designs for straightforward integration.
• Quick design turnaround: Toolchain support with automatic place-and-route accelerates development and reduces time-to-prototype.
• RoHS compliant: Environmentally compliant manufacturing compatibility for modern production requirements.
• Surface-mount packaging: 84-LCC (J-lead) surface-mount form factor simplifies automated PCB assembly in compact layouts.

Why Choose EPF8282ALC84-4N?

The EPF8282ALC84-4N offers a practical mix of logic resources, I/O capacity, and standard 5 V operation in a compact 84-pin PLCC package—well suited for designers building moderate-density control, interface, and coprocessing functions. Its register-rich architecture and family-level routing features make it a dependable choice for predictable timing and efficient logic implementation.

This device is appropriate for teams and projects seeking a commercially graded FPGA solution that integrates smoothly into 5.0 V systems, provides RoHS compliance, and is supported by established MAX+PLUS II development tools for streamlined implementation and verification.

Request a quote or submit an inquiry to evaluate EPF8282ALC84-4N for your next logic integration or interface project.
