MPF300T-1FCG484I

The MPF300T-1FCG484I is a PolarFire™ Field Programmable Gate Array (FPGA) IC from Microchip Technology designed for industrial-grade embedded systems. It integrates 300,000 logic elements with approximately 21.09 Mbits of on-chip RAM and provides 244 user I/O pins in a compact 484-FCBGA (23×23) surface-mount package.

With an industrial operating temperature range and a core supply voltage range of 0.970 V to 1.08 V, this device is targeted at applications that require high logic capacity, substantial embedded memory, and robust environmental performance.

Key Features

• Core Logic  300,000 logic elements (logic cells) to implement complex custom logic and parallel datapaths.
• Embedded Memory  Approximately 21.09 Mbits of on-chip RAM to support buffering, lookup tables, and data storage within the FPGA fabric.
• I/O  244 user I/O pins to support a wide range of external interfaces and board-level connectivity.
• Power  Core supply voltage range from 0.970 V to 1.08 V for the FPGA fabric.

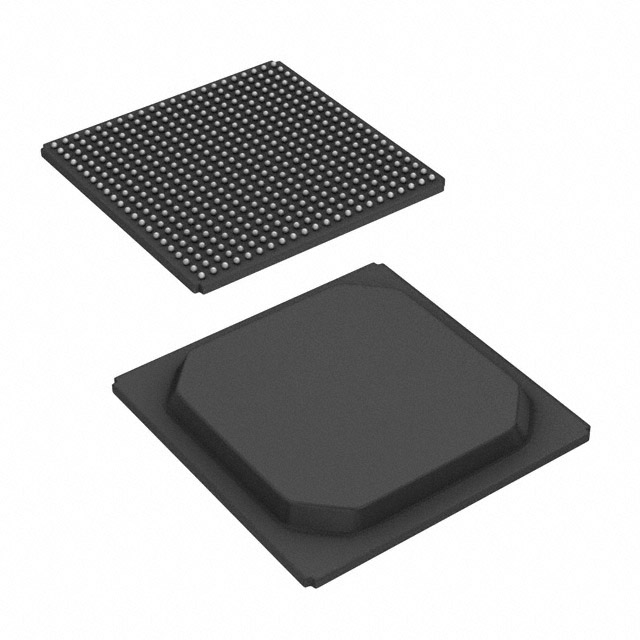

• Package & Mounting  484-FCBGA (23×23) ball grid array package, surface mount mounting for high-density board integration.
• Temperature & Grade  Industrial grade device rated for operation from −40 °C to 100 °C.
• Compliance  RoHS compliant to meet environmental and materials requirements.

Typical Applications

• Industrial control and automation  Industrial-grade temperature rating and high logic capacity make this FPGA suitable for programmable controllers, motion control, and factory automation systems.
• High-density I/O systems  244 I/O pins provide the connectivity needed for multi-channel data acquisition, sensor aggregation, and complex peripheral interfaces.
• Custom embedded processing  Large logic resources and embedded RAM support custom datapaths, protocol offload, and real-time processing in embedded systems.

Unique Advantages

• High logic capacity: 300,000 logic elements enable implementation of large-scale custom logic and parallel processing architectures.
• Significant on-chip memory: Approximately 21.09 Mbits of embedded RAM reduces reliance on external memory for many buffering and table storage needs.
• Substantial I/O count: 244 I/O pins simplify board-level designs that require many channels or mixed-signal interfacing without additional bridging devices.
• Industrial temperature range: Rated from −40 °C to 100 °C for deployment in demanding environmental conditions.
• Compact FCBGA package: 484-FCBGA (23×23) offers a high-density, surface-mount form factor for space-constrained PCBs.
• Low-voltage core operation: Core supply range of 0.970 V to 1.08 V to match modern FPGA power requirements.

Why Choose MPF300T-1FCG484I?

The MPF300T-1FCG484I delivers a balanced combination of large logic capacity, substantial embedded memory, and extensive I/O in an industrial-grade FPGA package. Its specifications make it well suited for engineers designing robust embedded systems that require scalable programmable logic and reliable operation across a wide temperature range.

Designed and manufactured by Microchip Technology, this device is a solid option for teams building industrial control, high-density I/O, and custom processing solutions that demand on-chip resources and a compact board footprint.

Request a quote or submit an inquiry for MPF300T-1FCG484I to check availability, lead times, and pricing. Our team can assist with technical details and ordering information.
