XA7S6-1CPGA196Q

The XA7S6-1CPGA196Q is a Spartan®-7 XA field programmable gate array (FPGA) IC from AMD. It provides a compact, surface-mount FPGA implementation with 6,000 logic elements, approximately 0.18 Mbits of embedded memory and 100 I/O pins for custom digital integration.

Designed and qualified for demanding temperature and reliability requirements, this device supports a supply range of 0.95 V to 1.05 V and an operating temperature from -40 °C to 125 °C, with AEC-Q100 qualification and RoHS compliance.

Key Features

• Core Logic  6,000 logic elements provide the configurable digital fabric for implementing custom logic functions and glue logic.
• Embedded Memory  Total on-chip RAM of 184,320 bits (approximately 0.18 Mbits) for data buffering, state storage and small on-chip storage requirements.
• I/O Capacity  100 I/O pins available for interfacing to peripherals, sensors and external logic.
• Power  Operates from a core supply in the range of 0.95 V to 1.05 V to match target system power rails.

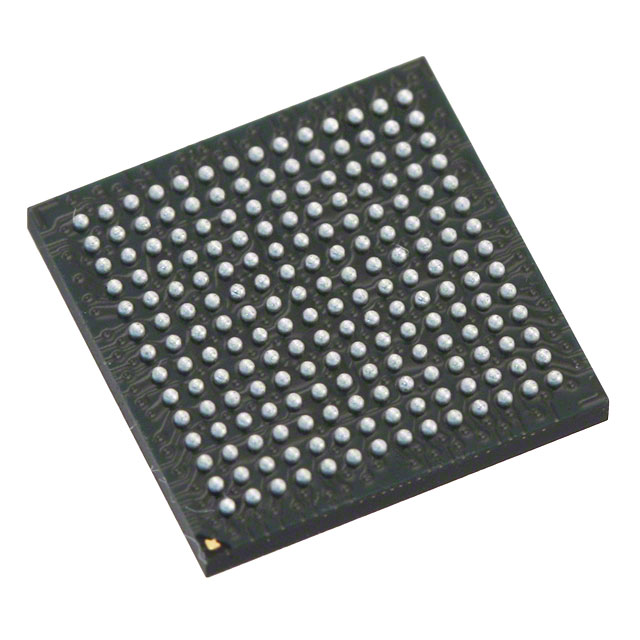

• Package & Mounting  196-TFBGA (CSBGA) package, supplier package listed as 196-CSPBGA (8×8), in a surface-mount form factor for compact board designs.
• Temperature & Qualification  Automotive-grade qualification (AEC-Q100) with an operating range of -40 °C to 125 °C for high-reliability environments.
• Environmental Compliance  RoHS-compliant construction for regulatory and manufacturing requirements.

Typical Applications

• Automotive Systems  AEC-Q100 qualification and a -40 °C to 125 °C operating range make this FPGA suitable for in-vehicle digital logic, control and interfacing tasks.
• Compact Embedded Designs  The 196-TFBGA surface-mount package and 100 I/O pins support space-constrained boards that require programmable logic integration.
• On-chip Memory and Buffering  Approximately 0.18 Mbits of embedded RAM enables localized buffering and small data storage for real-time processing or control state retention.

Unique Advantages

• AEC-Q100 Automotive Qualification: Explicit qualification supports deployment in automotive-grade systems where component-level qualification is required.
• Wide Operating Temperature: Rated from -40 °C to 125 °C to accommodate harsh-environment and extended-temperature applications.
• Compact BGA Package: 196-TFBGA (8×8 CSPBGA) packaging enables dense board layouts while retaining significant I/O and logic capability.
• Balanced Logic and Memory: 6,000 logic elements alongside 184,320 bits of RAM provide a balanced platform for control logic with modest on-chip memory needs.
• Low-Voltage Core Operation: Core supply range of 0.95 V to 1.05 V supports modern low-voltage system architectures.
• Regulatory Compliance: RoHS compliance simplifies integration into regulated manufacturing processes.

Why Choose XA7S6-1CPGA196Q?

The XA7S6-1CPGA196Q positions itself as a compact, automotive-qualified FPGA option from AMD, combining a practical level of logic density with embedded memory and a robust thermal qualification. Its package and I/O count are suitable for systems that need programmable logic in space-constrained assemblies while meeting automotive temperature and qualification requirements.

This device is well suited for engineers and designers building control, interface and buffering functions that require verified temperature performance and component qualification. The combination of AMD heritage, AEC-Q100 qualification and RoHS compliance supports long-term design stability and supply-chain compatibility.

Request a quote or submit a pricing and availability inquiry for the XA7S6-1CPGA196Q to begin integrating this FPGA into your next design.
