XC4VFX100-11FF1152C

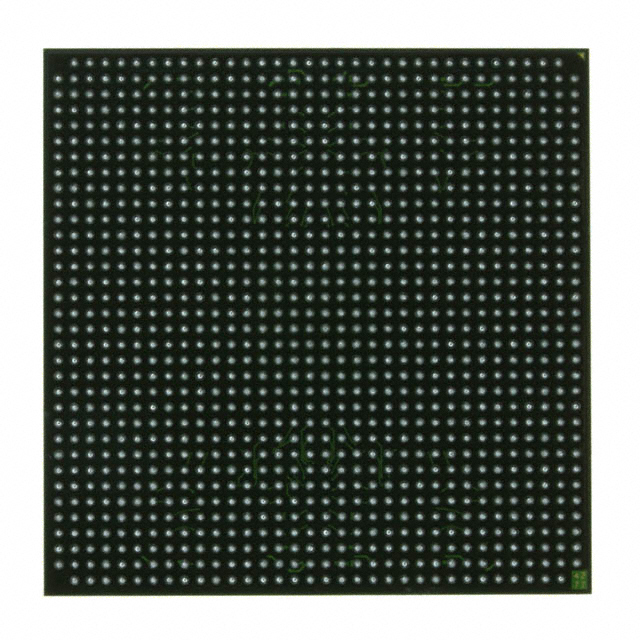

The XC4VFX100-11FF1152C is a Virtex®-4 FX field programmable gate array (FPGA) IC from AMD designed for commercial embedded logic applications. It combines a large logic fabric with on-chip memory and a high I/O count in a 1152-ball FCBGA package to address complex interfacing and custom logic requirements.

With 94,896 logic elements, approximately 6.93 Mbits of embedded memory and 576 user I/Os, this device is intended for designs that require significant programmable resources and dense I/O connectivity within a surface-mount 35×35 mm package.

Key Features

• Core Logic 94,896 logic elements provide extensive programmable logic capacity for large combinational and sequential designs.
• Embedded Memory Approximately 6.93 Mbits of on-chip RAM to support buffering, data storage and user-defined memory structures.
• I/O Density 576 user I/Os for wide parallel interfaces and multiple high-pin-count connections in a single device.
• Package & Mounting 1152-ball FCBGA (35×35 mm) package, surface-mount mounting for compact, board-level integration.
• Power Supply Supported core voltage range from 1.14 V to 1.26 V to match system power rails and core domain requirements.
• Operating Range & Grade Commercial grade device rated for 0 °C to 85 °C operating temperature.
• Compliance RoHS compliant.

Typical Applications

• Communications Equipment Use the high logic count and abundant I/O to implement protocol processing, interface bridging and packet buffering.
• Signal Processing Leverage embedded memory and large logic capacity for data buffering and custom processing pipelines.
• Prototyping and Development Suitable for hardware validation and system prototyping where a dense programmable fabric and many I/Os are required.
• Industrial Control Implement complex control logic and multiple I/O interfaces within a single commercial-grade FPGA package.

Unique Advantages

• Large Programmable Fabric: 94,896 logic elements provide significant room for complex logic integration and custom architectures.
• Substantial On-Chip Memory: Approximately 6.93 Mbits of embedded RAM reduce dependence on external memory for many buffering and storage needs.
• High I/O Count: 576 user I/Os simplify board-level design by enabling numerous parallel interfaces without additional components.
• Compact Ball-Grid Package: 1152-FCBGA (35×35 mm) consolidates high capacity and I/O into a surface-mount form factor for space-constrained PCBs.
• Commercial Temperature Rating: Specified 0 °C to 85 °C operating range aligns with standard commercial deployments.
• Regulatory Compliance: RoHS compliant for environmentally conscious designs and global supply chain requirements.

Why Choose XC4VFX100-11FF1152C?

The XC4VFX100-11FF1152C positions itself as a high-capacity, commercially rated FPGA for designs that require extensive programmable logic, significant on-chip memory, and dense I/O in a single surface-mount package. Its combination of nearly 95k logic elements, approximately 6.93 Mbits of embedded RAM and 576 I/Os makes it well suited to system-level integration where consolidation of functions and interface density are priorities.

Designed by AMD and offered in a 1152-ball FCBGA package with a defined operating voltage and temperature range, this device provides a practical platform for engineers developing communication, signal processing, prototyping, and industrial control applications that demand a robust, programmable solution.
