XC4VLX15-10SFG363I

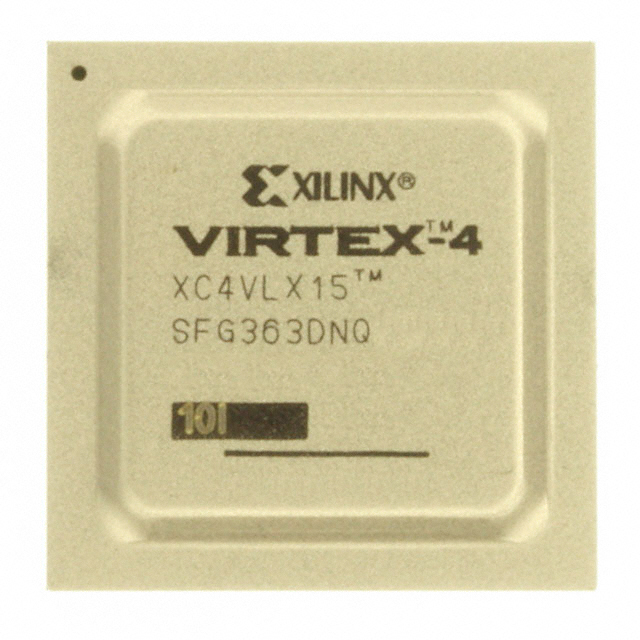

The XC4VLX15-10SFG363I is a Virtex-4 LX Field Programmable Gate Array in a 363-FBGA (17×17) package, offered in an industrial-grade variant. It provides a balance of on-chip logic, embedded memory, and I/O resources for designs that require programmable digital logic with controlled power and temperature ranges.

Key device data includes 13,824 logic elements, approximately 0.885 Mbits of embedded memory, 240 user I/Os, a 1.14 V to 1.26 V supply range, and an operating temperature range of –40 °C to 100 °C. The device is RoHS compliant and designed for surface-mount PCB assembly.

Key Features

• Core Logic  13,824 logic elements provide the programmable fabric for implementing custom digital functions and state machines.
• Embedded Memory  Approximately 0.885 Mbits of on-chip RAM for data buffering, FIFOs, and small lookup tables integrated alongside logic resources.
• I/O Capacity  240 user I/Os support interfacing with multiple peripherals, buses, and external devices from a single FPGA package.
• Power Supply  Nominal core supply range of 1.14 V to 1.26 V to match system power-rail planning and regulation requirements.
• Package & Mounting  363-FBGA (17×17) FCBGA package in a surface-mount form factor for high-density board designs.
• Temperature & Grade  Industrial operating temperature range of –40 °C to 100 °C for deployment in thermally challenging environments.
• Environmental Compliance  RoHS compliant to support lead-free assembly and regulatory requirements.

Typical Applications

• Custom digital logic and prototyping  Implement and iterate complex state machines, protocol bridges, and custom accelerators using the device's logic and embedded memory.
• High-density I/O systems  Consolidate multiple peripheral interfaces or data streams through 240 configurable I/Os in a compact FBGA package.
• Embedded system integration  Use the combination of logic elements and on-chip RAM to integrate control, signal processing, and buffering tasks within a single programmable device.

Unique Advantages

• Rich logic resources: 13,824 logic elements allow designers to implement substantial custom logic without immediate migration to larger devices.
• On-chip memory: Approximately 0.885 Mbits of embedded RAM reduces the need for external memory for many buffering and temporary storage needs.
• High I/O count: 240 user I/Os enable dense interfacing and system consolidation, lowering overall BOM complexity.
• Industrial temperature range: Rated from –40 °C to 100 °C for reliable operation across a wide set of deployment environments.
• Compact, surface-mount package: 363-FBGA (17×17) supports space-constrained PCB layouts while delivering high pin density.
• Regulatory readiness: RoHS compliance supports lead-free manufacturing flows.

Why Choose XC4VLX15-10SFG363I?

The XC4VLX15-10SFG363I positions itself as a versatile Virtex-4 LX FPGA option where a combination of moderate logic capacity, on-chip memory, and substantial I/O is required in an industrial-grade package. Its defined supply and temperature ranges, along with a high-density 363-FBGA footprint, make it suitable for embedded designs that prioritize integration and predictable electrical and thermal behavior.

This device is appropriate for engineering teams seeking a programmable hardware platform that ties specific, verifiable resources—logic elements, embedded RAM, I/O count, package dimensions, and industrial temperature rating—into a single component backed by the Virtex-4 LX family pedigree.

Request a quote or submit a part inquiry for the XC4VLX15-10SFG363I to receive pricing, availability, and support information for your next design.
